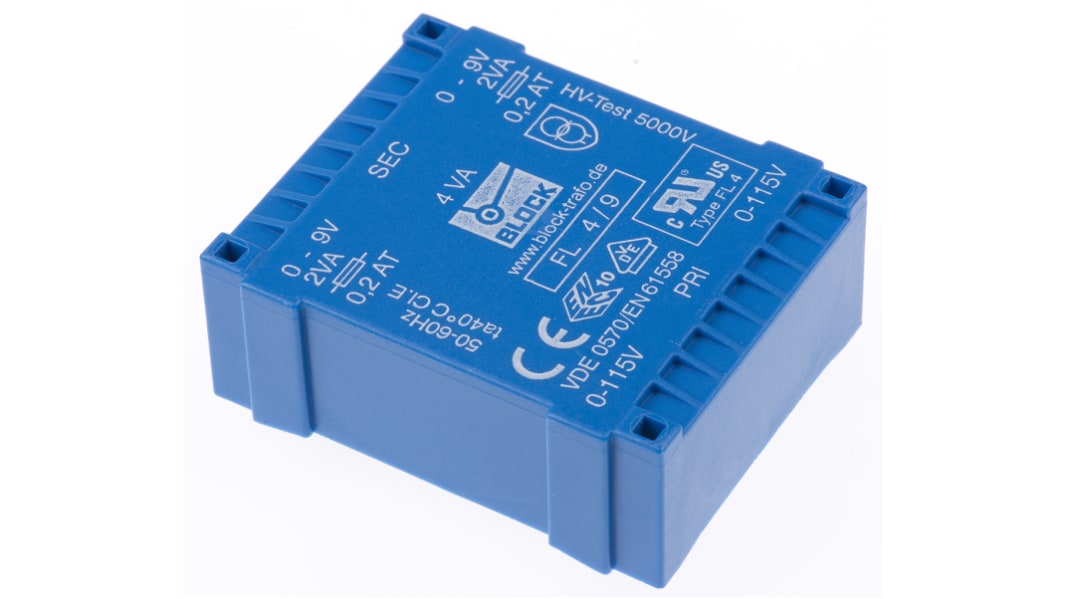

Block 9 V ac 2 Output Pin PCB Transformer, VDE 0570 Teil 2-6, IEC 61558-2-6, IEC 61558-2-4, C-UL-US, UL 94 V-0, DIN EN
- RS Stock No.:
- 201-6940
- Mfr. Part No.:
- FL 4/9
- Brand:
- Block
Bulk discount available
Subtotal (1 unit)*
£9.07
(exc. VAT)
£10.88
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £9.07 |
| 10 - 24 | £8.25 |
| 25 - 49 | £7.85 |
| 50 - 99 | £7.45 |
| 100 + | £7.19 |
*price indicative
- RS Stock No.:
- 201-6940
- Mfr. Part No.:
- FL 4/9
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 9 V ac | |
| Primary Voltage | 115 V ac, 230 V ac | |
| Number of Outputs | 2 | |
| Length | 53mm | |
| Width | 19.6mm | |
| Power | 4VA | |
| Depth | 44mm | |
| Weight | 0.98kg | |
| Mount Type | Pin | |
| Winding Type | Dual Secondary | |
| Isolation Voltage | 5000V | |
| Maximum Operating Temperature | 40°C | |
| Minimum Operating Frequency | 50Hz | |
| Series | FL | |
| Standards/Approvals | VDE 0570 Teil 2-6, IEC 61558-2-6, IEC 61558-2-4, C-UL-US, UL 94 V-0, DIN EN 61558-2-1, ENEC 10 (VDE), DIN EN 61558-2-4, DIN EN 61558-2-6, IEC 61558-2-1, VDE 0570 Teil 2-4, VDE 0570 Teil 2-1 | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Block | ||
Product Type PCB Transformer | ||
Secondary Voltage 9 V ac | ||
Primary Voltage 115 V ac, 230 V ac | ||
Number of Outputs 2 | ||
Length 53mm | ||
Width 19.6mm | ||
Power 4VA | ||
Depth 44mm | ||
Weight 0.98kg | ||
Mount Type Pin | ||
Winding Type Dual Secondary | ||
Isolation Voltage 5000V | ||
Maximum Operating Temperature 40°C | ||
Minimum Operating Frequency 50Hz | ||
Series FL | ||
Standards/Approvals VDE 0570 Teil 2-6, IEC 61558-2-6, IEC 61558-2-4, C-UL-US, UL 94 V-0, DIN EN 61558-2-1, ENEC 10 (VDE), DIN EN 61558-2-4, DIN EN 61558-2-6, IEC 61558-2-1, VDE 0570 Teil 2-4, VDE 0570 Teil 2-1 | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- DE
PCB Mounting Low Profile 115 / 230Vac Primary
Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Note
Transformer with 2 x 24V outputs are not VDE, SEV approved.
Approvals
VDE; UL
Standards
VD 61 558
