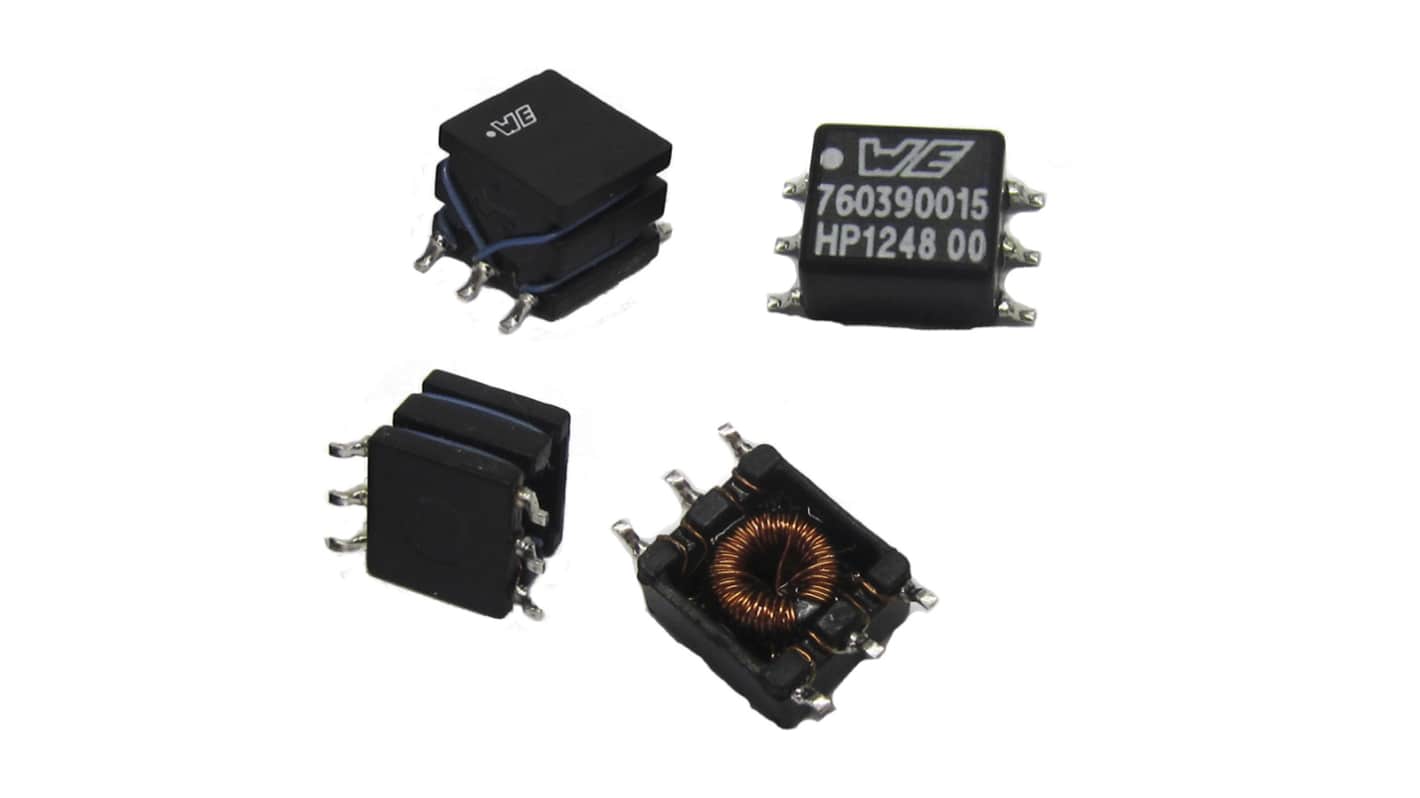

Wurth Elektronik 5 V 1 Output Surface PCB Transformer, Free JEDEC JS709B, IEC6180051, IEC6681, CSA, EN6681, IEC606641,
- RS Stock No.:
- 182-8748
- Mfr. Part No.:
- 760390013
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1200 units)*
£1,189.20
(exc. VAT)
£1,426.80
(inc. VAT)
Add 1200 units to get free delivery
Temporarily out of stock
- Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1200 + | £0.991 | £1,189.20 |
*price indicative
- RS Stock No.:
- 182-8748
- Mfr. Part No.:
- 760390013
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Secondary Voltage | 5 V | |
| Product Type | PCB Transformer | |
| Primary Voltage | 3.3 V dc | |
| Number of Outputs | 1 | |
| Length | 7.14mm | |
| Width | 4.19 mm | |
| Depth | 6.73mm | |
| Mount Type | Surface | |
| PCB Transformer Current | 350mA | |
| Number of Pins | 6 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Frequency | 250kHz | |
| Standards/Approvals | Free JEDEC JS709B, IEC6180051, IEC6681, CSA, EN6681, IEC606641, ASNZS668.1 and J6681, cULus Approva, REACH, UL6681CSA6681, RoHS | |
| Maximum Operating Frequency | 550kHz | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Secondary Voltage 5 V | ||
Product Type PCB Transformer | ||
Primary Voltage 3.3 V dc | ||
Number of Outputs 1 | ||
Length 7.14mm | ||
Width 4.19 mm | ||
Depth 6.73mm | ||
Mount Type Surface | ||
PCB Transformer Current 350mA | ||
Number of Pins 6 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Frequency 250kHz | ||
Standards/Approvals Free JEDEC JS709B, IEC6180051, IEC6681, CSA, EN6681, IEC606641, ASNZS668.1 and J6681, cULus Approva, REACH, UL6681CSA6681, RoHS | ||
Maximum Operating Frequency 550kHz | ||
- COO (Country of Origin):
- CN
MID-PPTI Push-Pull Transformers for Texas Instruments
Small size
Surface mount
Low profile
Operating temp: -40°C to 125°C
Functional, supplementary or reinforced insulation
Applications
Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs
