Myrra 15 V ac 2 Output Through Hole PCB Transformer, CEI 85, IP 00, UL 1585, EN 60950, CEI 126, EN 61558-2-6, UL 94 VO
- RS Stock No.:
- 173-9080
- Mfr. Part No.:
- 45034
- Brand:
- Myrra

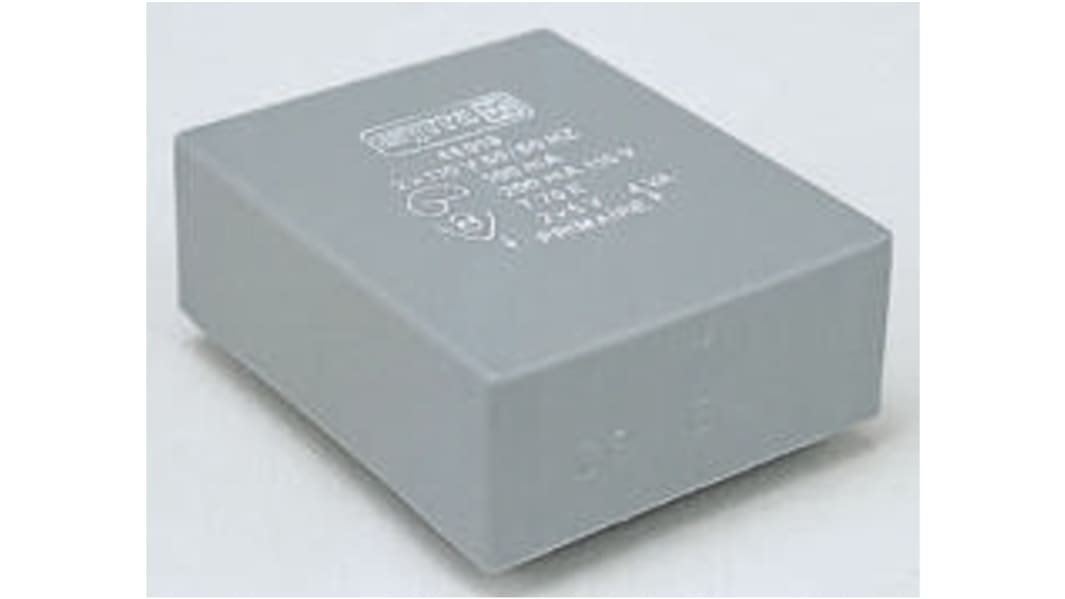

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£10.41
(exc. VAT)
£12.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 19 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 29 | £10.41 |
| 30 - 59 | £10.19 |
| 60 - 119 | £9.77 |
| 120 - 249 | £9.23 |
| 250 + | £8.88 |
*price indicative
- RS Stock No.:
- 173-9080
- Mfr. Part No.:
- 45034
- Brand:
- Myrra
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Myrra | |
| Secondary Voltage | 15 V ac | |
| Product Type | PCB Transformer | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 2 | |
| Length | 53mm | |
| Width | 44mm | |
| Power | 10VA | |
| Depth | 24mm | |
| Weight | 260g | |
| Mount Type | Through Hole | |
| Isolation Voltage | 4kV | |
| Maximum Operating Temperature | 70°C | |
| Series | 44000 | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | CEI 85, IP 00, UL 1585, EN 60950, CEI 126, EN 61558-2-6, UL 94 VO | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Myrra | ||
Secondary Voltage 15 V ac | ||
Product Type PCB Transformer | ||
Primary Voltage 230 V ac | ||
Number of Outputs 2 | ||
Length 53mm | ||
Width 44mm | ||
Power 10VA | ||
Depth 24mm | ||
Weight 260g | ||
Mount Type Through Hole | ||
Isolation Voltage 4kV | ||
Maximum Operating Temperature 70°C | ||
Series 44000 | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals CEI 85, IP 00, UL 1585, EN 60950, CEI 126, EN 61558-2-6, UL 94 VO | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- FR
Type UI 30 - 3 VA → 10 VA
Secondary voltages are nominal load voltages on resistive loads.
Only the pins indicated on the wiring diagram "physically" exist.
Encapsulated – Toroidal
Note
Fixing screws not provided
Approvals
UL 506
Standards
IEC 742, VDE 0551, SEV 1003
