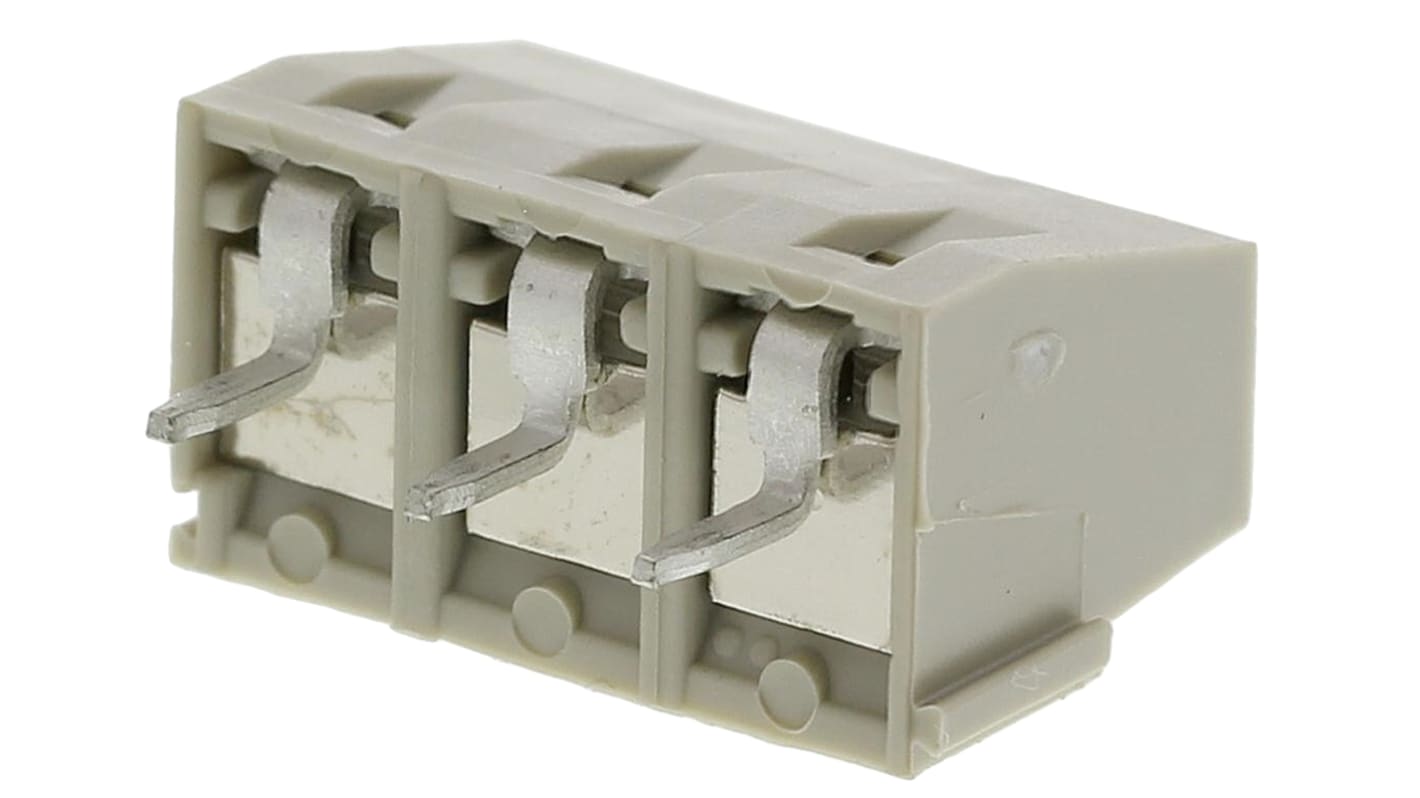

TE Connectivity Buchanan Series PCB Terminal Block, 3-Contact, 5 mm Pitch, 1 Row, 1546216-3
- RS Stock No.:
- 710-0097
- Mfr. Part No.:
- 1546216-3
- Brand:
- TE Connectivity
Subtotal (1 pack of 5 units)*
£3.69
(exc. VAT)
£4.43
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,165 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.738 | £3.69 |
*price indicative
- RS Stock No.:
- 710-0097
- Mfr. Part No.:
- 1546216-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 5mm | |
| Current | 13.5A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.05mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.4mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 16 AWG | |
| Maximum Wire Size AWG | 30 AWG | |
| Orientation | Straight | |
| Colour | Grey | |
| Voltage | 300 V ac | |
| Series | Buchanan | |
| Length | 15mm | |
| Standards/Approvals | No | |
| Depth | 10mm | |
| Width | 8.2 mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 5mm | ||
Current 13.5A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.05mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.4mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 16 AWG | ||
Maximum Wire Size AWG 30 AWG | ||
Orientation Straight | ||
Colour Grey | ||
Voltage 300 V ac | ||
Series Buchanan | ||
Length 15mm | ||
Standards/Approvals No | ||
Depth 10mm | ||
Width 8.2 mm | ||
TE Connectivity 5.0mm TERMI-BLOK Series Low Profile PCB Terminal Blocks with Interlock
TE’s ’TERMI-BLOK’ series is a low profile PCB mount Terminal Block with a 5mm centreline, side wire entry and M3 screw clamp Terminals that accept a wire size range of 30 to 16 AWG(.05-1.3mm). These 5.0mm low profile PCB Terminal Blocks also have an interlocking feature. They’re MADE from a premium green polyamide 6.6 GF.
These Terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make Ideal use as permanent solution however can be used in temporary circuitry.
Features and Benefits:
• High quality build quality
• Small and low profile design
• Operating temperature of -40°c to +110°c
• Interlocking feature
• Can be side stacked
These blocks have a ’M3’ screw.
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great Value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
TE Connectivity 5.0mm TERMI-BLOK PCB Terminal Block Connectors
Approvals
UL File no. E60677, CSA File no. LR7189
