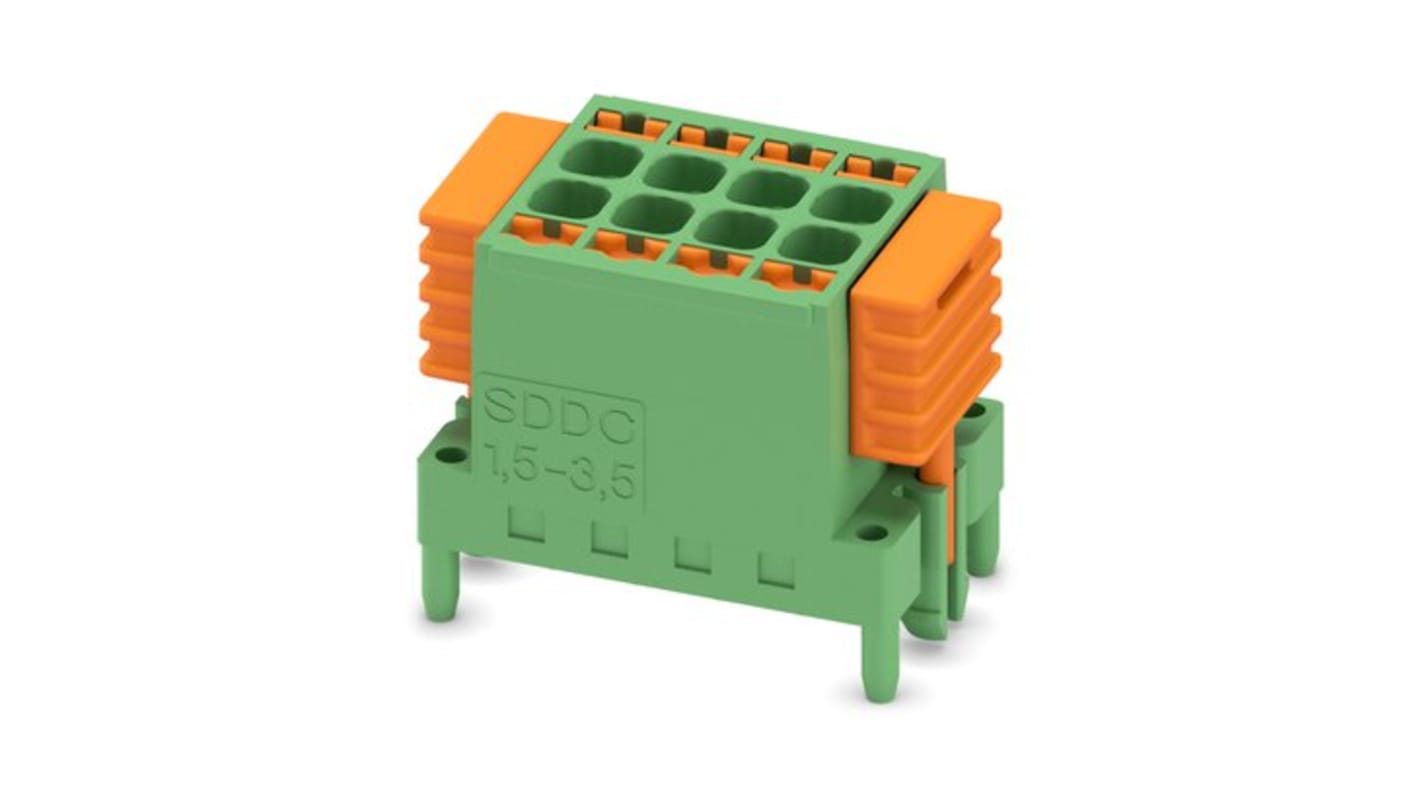

Phoenix Contact SDDC Series PCB Connector, 8-Contact, 3.5 mm Pitch, 2 Row
- RS Stock No.:
- 287-7817
- Mfr. Part No.:
- 1848668
- Brand:
- Phoenix Contact
Subtotal (1 pack of 250 units)*
£2,034.25
(exc. VAT)
£2,441.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 250 + | £8.137 | £2,034.25 |
*price indicative
- RS Stock No.:
- 287-7817
- Mfr. Part No.:
- 1848668
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 8 | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Rows | 2 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 90° | |
| Colour | Green | |
| Wire Connection Method | Push-in Spring | |
| Voltage | 160V | |
| Series | SDDC | |
| Length | 17.6mm | |
| Depth | 13.5mm | |
| Standards/Approvals | CHINA RoHS, cULus Recognised-Approval ID: E60425-20160718, EU REACH SVHC, EU RoHS, IEC 60068-2-70:1995-12, VDE Zeichengenehmigung-Approval ID: 40044617, UL Recognised-Approval ID: E60425-20160718 | |
| Width | 21.3mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 8 | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Rows 2 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 90° | ||
Colour Green | ||
Wire Connection Method Push-in Spring | ||
Voltage 160V | ||
Series SDDC | ||
Length 17.6mm | ||
Depth 13.5mm | ||
Standards/Approvals CHINA RoHS, cULus Recognised-Approval ID: E60425-20160718, EU REACH SVHC, EU RoHS, IEC 60068-2-70:1995-12, VDE Zeichengenehmigung-Approval ID: 40044617, UL Recognised-Approval ID: E60425-20160718 | ||
Width 21.3mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB direct plug utilizes SKEDD direct plug-in technology, allowing flexible positioning on the PCB. This technology reduces component and process costs by enabling simple hand insertion and providing a vibration-resistant connection. Contacts are arranged in a double row, allowing for high packing density in a compact area. The plug is versatile and suitable for a wide range of applications, as it can be used with PCBs featuring chemically tin-plated or Hot Air Levelling (HAL) surfaces.
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
