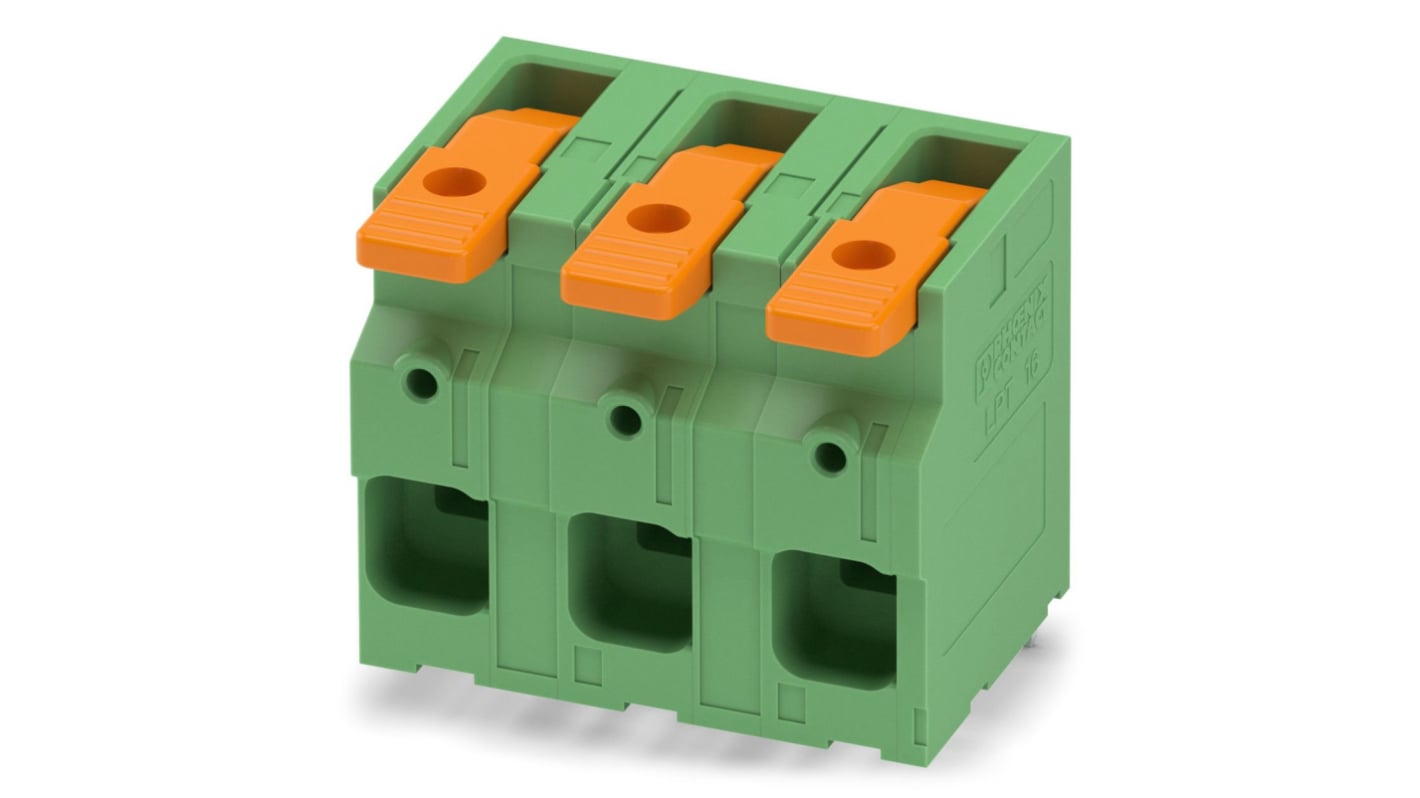

Phoenix Contact 0-ZB, LPT 16/3-15 Series PCB Terminal Block, 3-Contact, 10 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 269-7951
- Mfr. Part No.:
- 1119819
- Brand:
- Phoenix Contact
Subtotal (1 pack of 25 units)*
£227.60
(exc. VAT)
£273.125
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £9.104 | £227.60 |
*price indicative
- RS Stock No.:
- 269-7951
- Mfr. Part No.:
- 1119819
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 3 | |
| Product Type | PCB Terminal Block | |
| Pitch | 10mm | |
| Current | 76A | |
| Number of Rows | 1 | |
| Housing Material | Copper Alloy (Contact), Polyamide | |
| Minimum Wire Size mm² | 0.75mm² | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 16mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Orientation | 0° | |
| Wire Connection Method | Push-in | |
| Colour | Green | |
| Voltage | 1000V | |
| Series | 0-ZB, LPT 16/3-15 | |
| Length | 32mm | |
| Depth | 39.6mm | |
| Width | 41.9mm | |
| Standards/Approvals | IECEE CB Scheme, UL Recognised, VDE, cUL Recognised, cULus Recognised | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 3 | ||
Product Type PCB Terminal Block | ||
Pitch 10mm | ||
Current 76A | ||
Number of Rows 1 | ||
Housing Material Copper Alloy (Contact), Polyamide | ||
Minimum Wire Size mm² 0.75mm² | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 16mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Orientation 0° | ||
Wire Connection Method Push-in | ||
Colour Green | ||
Voltage 1000V | ||
Series 0-ZB, LPT 16/3-15 | ||
Length 32mm | ||
Depth 39.6mm | ||
Width 41.9mm | ||
Standards/Approvals IECEE CB Scheme, UL Recognised, VDE, cUL Recognised, cULus Recognised | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB terminal block is rated for nominal current 76 A & rated voltage 1000 V at nominal cross section 10 mm2. The pin layout is zigzag of solder pin 3.6 mm and 0 °connection direction.
Green color
Tool free lever principle
Push in connection
