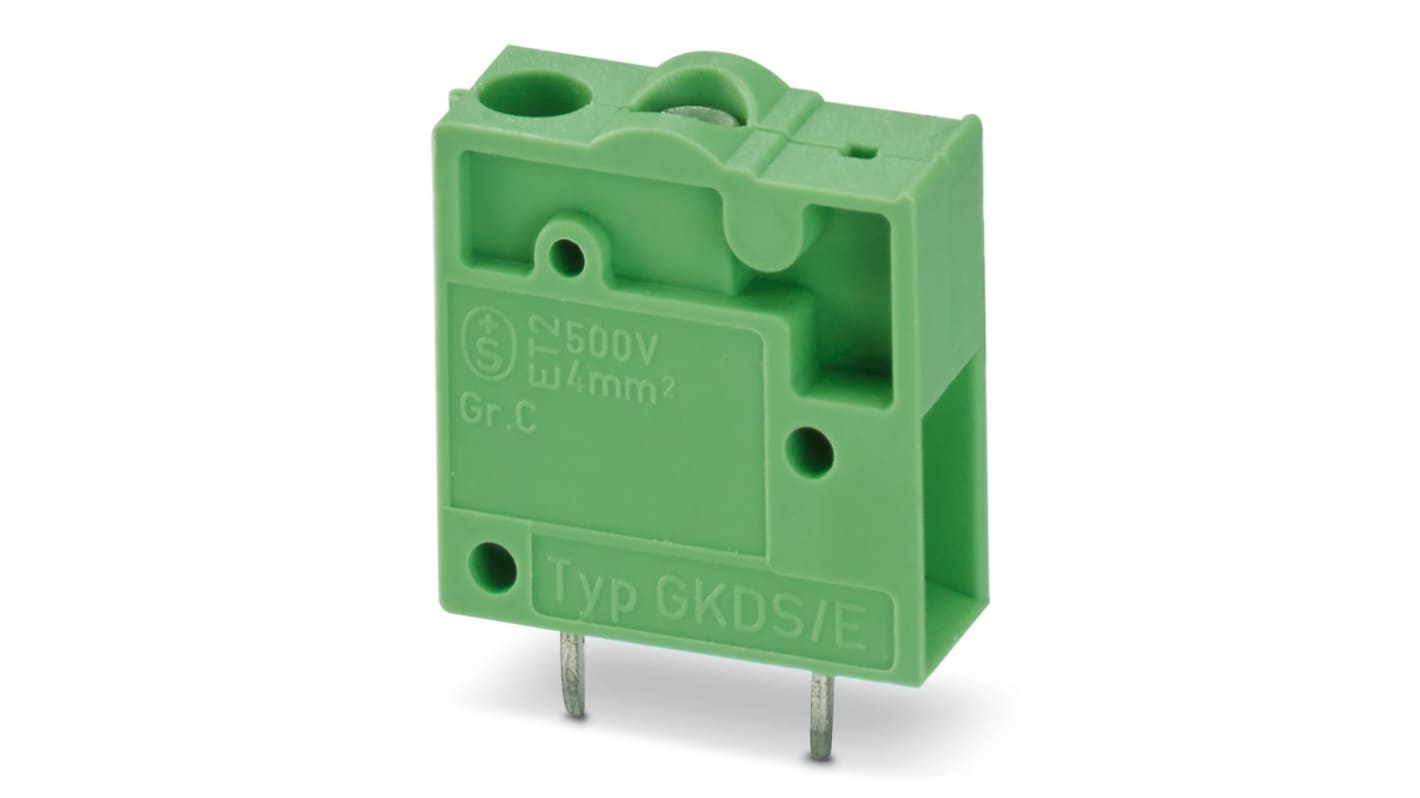

Phoenix Contact 1709025 Series PCB Terminal Block, 1-Contact, 7.5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 265-7336
- Mfr. Part No.:
- 1709025
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£79.75
(exc. VAT)
£95.70
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.595 | £79.75 |
*price indicative
- RS Stock No.:
- 265-7336
- Mfr. Part No.:
- 1709025
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 1 | |
| Product Type | PCB Terminal Block | |
| Pitch | 7.5mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Mount Type | Wave Soldering Mount | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 24AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 1000V | |
| Length | 19mm | |
| Depth | 19.5mm | |
| Series | 1709025 | |
| Width | 7.5mm | |
| Standards/Approvals | CSA, IEC 60512-3-1, IEC 60664-1, IEC 60947-7-4, IEC 60999-1, UL 94 V-0 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 1 | ||
Product Type PCB Terminal Block | ||
Pitch 7.5mm | ||
Number of Rows 1 | ||
Current 24A | ||
Mount Type Wave Soldering Mount | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 24AWG | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 1000V | ||
Length 19mm | ||
Depth 19.5mm | ||
Series 1709025 | ||
Width 7.5mm | ||
Standards/Approvals CSA, IEC 60512-3-1, IEC 60664-1, IEC 60947-7-4, IEC 60999-1, UL 94 V-0 | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB terminal block has one row and 1 positions with green color.
Tin plated surface
Copper alloy contact material
