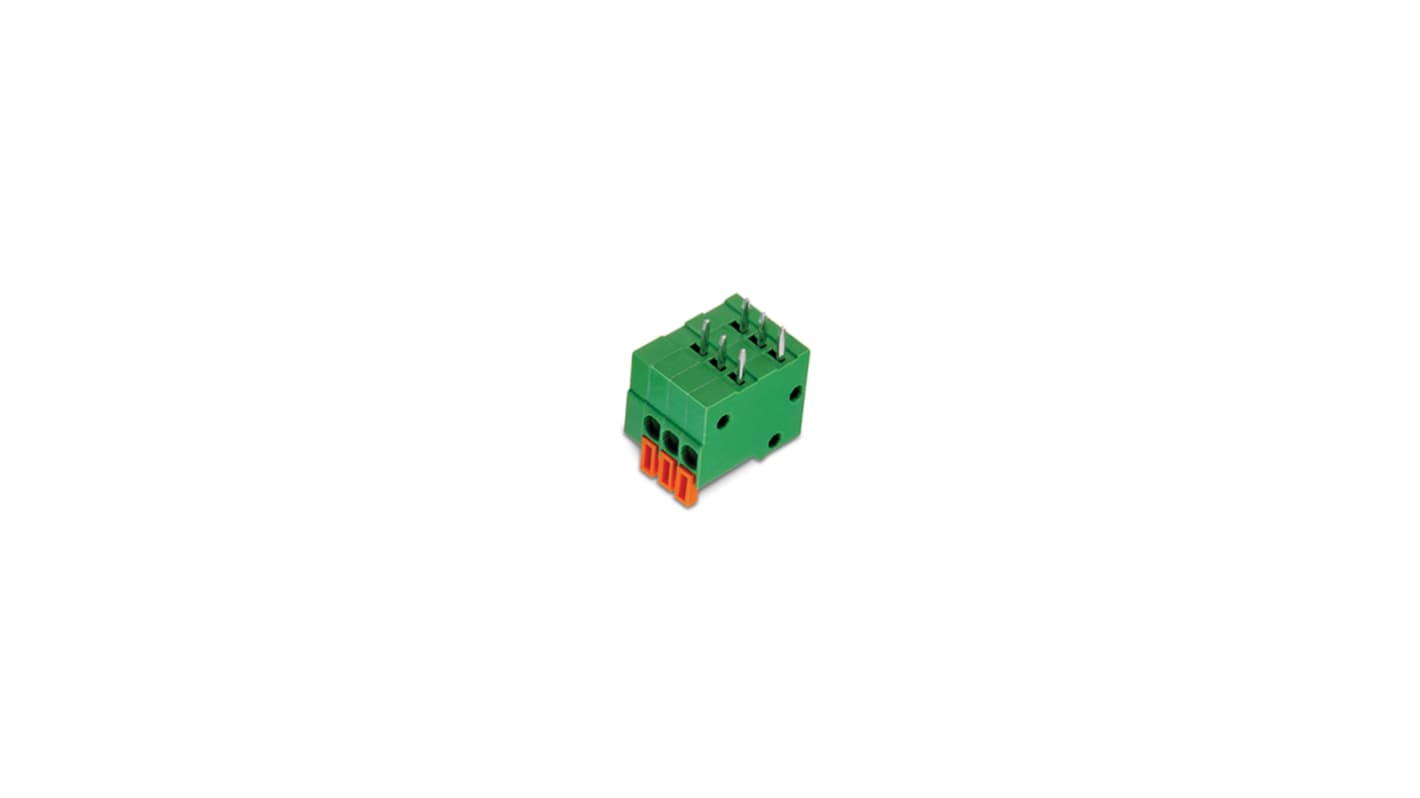

Wurth Elektronik 4029 Series PCB Terminal Block, 4-Contact, 2.54 mm Pitch, PCB, 1 Row
- RS Stock No.:
- 191-5651
- Mfr. Part No.:
- 691402910004B
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 191-5651
- Mfr. Part No.:
- 691402910004B
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 4 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.12mm² | |
| Mount Type | PCB | |
| Maximum Wire Size mm² | 0.51mm² | |
| Minimum Wire Size AWG | 26 AWG | |
| Maximum Wire Size AWG | 20 AWG | |
| Orientation | Horizontal | |
| Colour | Green | |
| Voltage | 150 V ac | |
| Width | 13.6 mm | |
| Depth | 12.8mm | |
| Standards/Approvals | No | |
| Series | 4029 | |
| Length | 12.7mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 4 | ||
Product Type PCB Terminal Block | ||
Pitch 2.54mm | ||
Current 6A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.12mm² | ||
Mount Type PCB | ||
Maximum Wire Size mm² 0.51mm² | ||
Minimum Wire Size AWG 26 AWG | ||
Maximum Wire Size AWG 20 AWG | ||
Orientation Horizontal | ||
Colour Green | ||
Voltage 150 V ac | ||
Width 13.6 mm | ||
Depth 12.8mm | ||
Standards/Approvals No | ||
Series 4029 | ||
Length 12.7mm | ||
- COO (Country of Origin):
- CN
WR-TBL Würth Elektronik Teminal Blocks
The Terminal Block portfolio from Würth Elektronik gives piece of mind bringing power to the board. The newly stocked range covers wire protector, rising cage clamp, spring clamp and pluggable systems. From 2.50 mm up to 10.16 mm pitch, 57 Amp and a maximum number of up to 12 poles.
