Wurth Elektronik 2446 Series PCB Terminal Block, 3-Contact, 10.16mm Pitch, PCB Mount, 1-Row, Solder Termination
- RS Stock No.:
- 191-1016
- Mfr. Part No.:
- 691244610003
- Brand:
- Wurth Elektronik
Available to back order for despatch 21/10/2024
Price Each (In a Pack of 5)
£1.598
(exc. VAT)
£1.918
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £1.598 | £7.99 |
| 10 - 45 | £1.414 | £7.07 |
| 50 + | £1.29 | £6.45 |
*price indicative
- RS Stock No.:
- 191-1016
- Mfr. Part No.:
- 691244610003
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

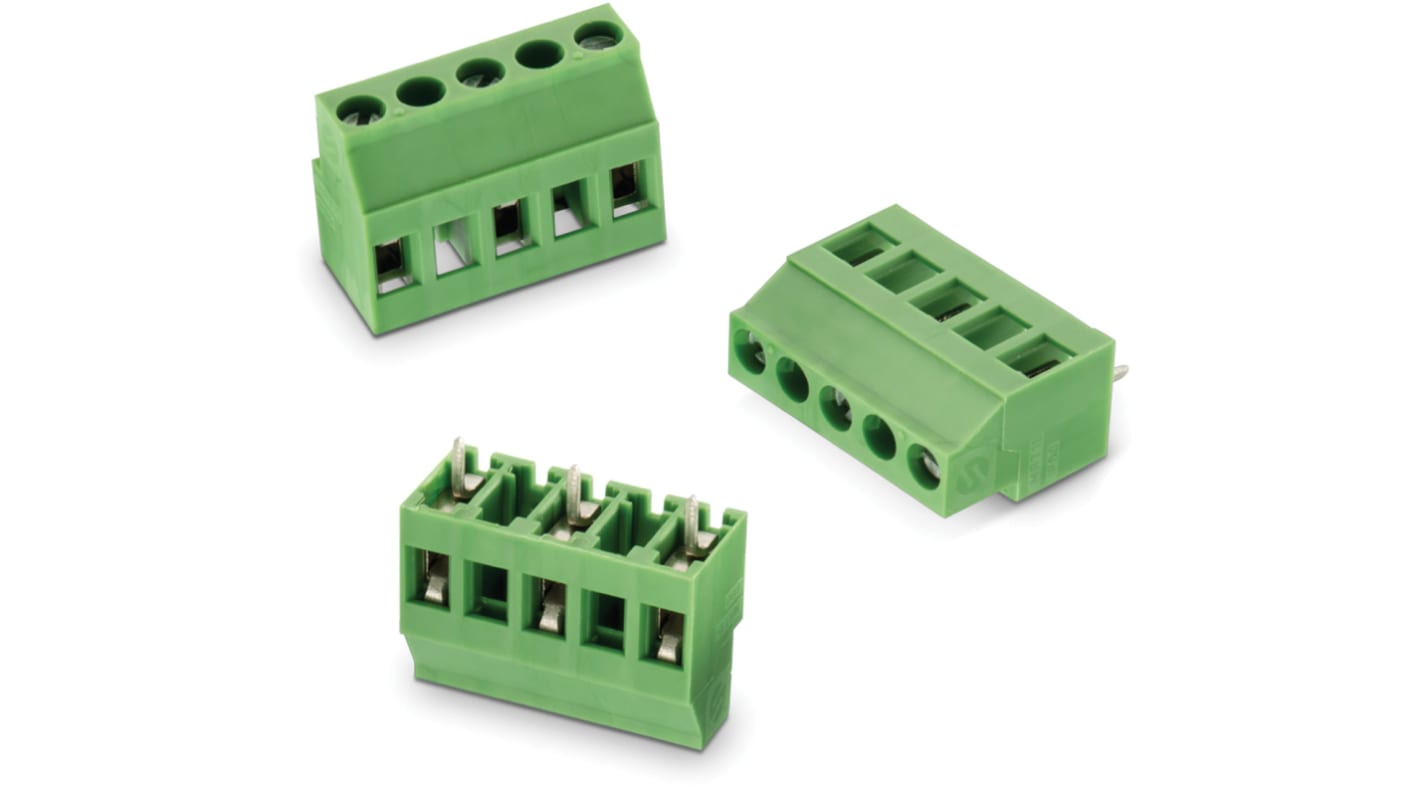

WR-TBL Würth Elektronik Teminal Blocks
The terminal block portfolio from Würth Elektronik gives piece of mind bringing power to the board. The newly stocked range covers wire protector, rising cage clamp, spring clamp and pluggable systems. From 2.50 mm up to 10.16 mm pitch, 57 Amp and a maximum number of up to 12 poles.
The terminal block portfolio from Würth Elektronik gives piece of mind bringing power to the board. The newly stocked range covers wire protector, rising cage clamp, spring clamp and pluggable systems. From 2.50 mm up to 10.16 mm pitch, 57 Amp and a maximum number of up to 12 poles.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Pitch | 10.16mm |
| Number of Rows | 1 |
| Mounting Type | PCB Mount |
| Gender | Male |
| Termination Method | Solder |
| Type | PCB Header |
| Current Rating | 16A |
| Body Orientation | Horizontal |
| Colour | Green |
| Voltage Rating | 1.6 kV, 3 kV, 300 V ac, 750 |
| Series | 2446 |
| Material | Nylon 66 |
| Width | 11.2mm |
| Depth | 18mm |
| Length | 25.4mm |
