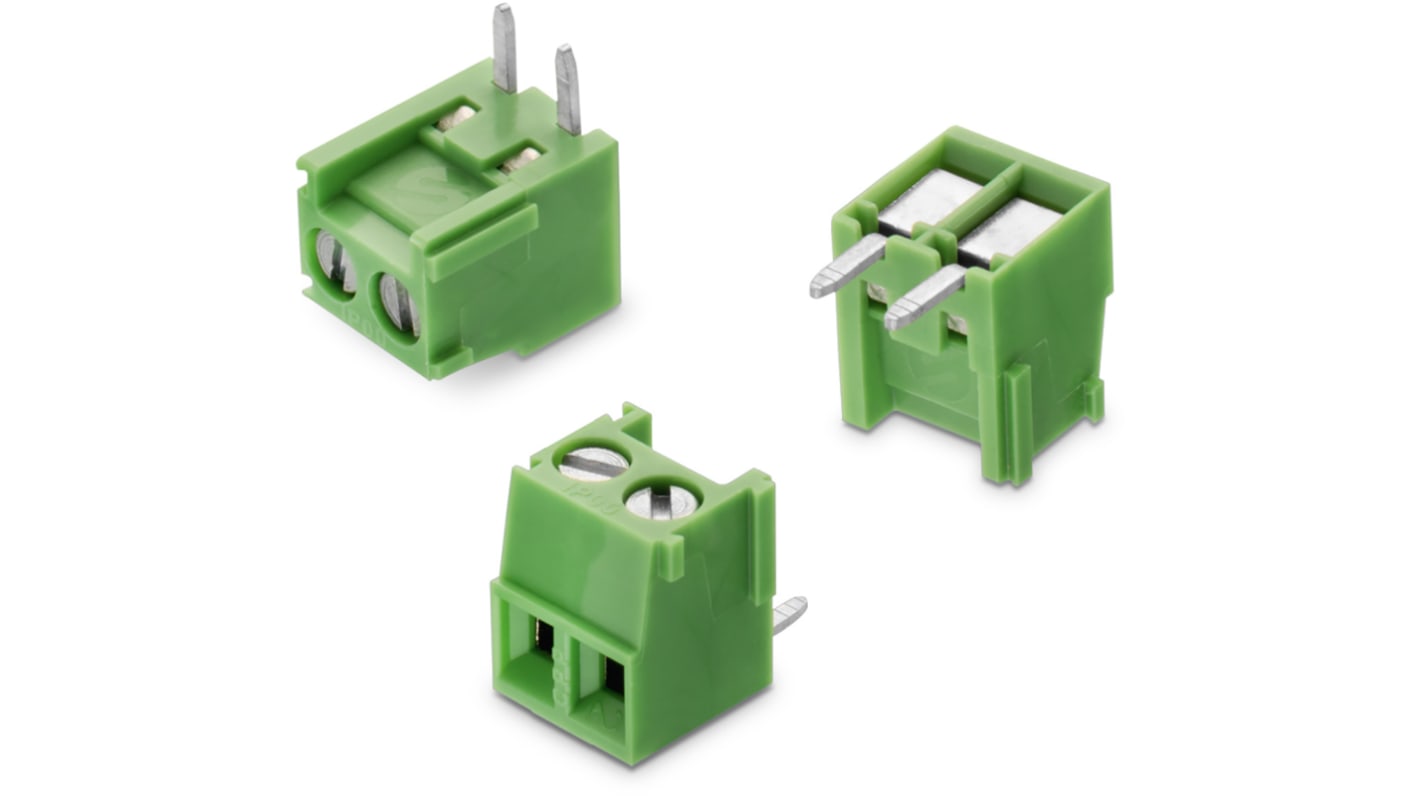

Wurth Elektronik 2141 Series PCB Terminal Block, 2-Contact, 3.5 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 190-8596
- Mfr. Part No.:
- 691214100002
- Brand:
- Wurth Elektronik
Subtotal (1 bag of 1000 units)*
£723.00
(exc. VAT)
£868.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 + | £0.723 | £723.00 |
*price indicative
- RS Stock No.:
- 190-8596
- Mfr. Part No.:
- 691214100002
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 2 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 10A | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.05mm² | |
| Maximum Wire Size mm² | 1.31mm² | |
| Orientation | Vertical | |
| Colour | Green | |
| Standards/Approvals | No | |
| Depth | 7.3mm | |
| Series | 2141 | |
| Length | 7.6mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 2 | ||
Product Type PCB Terminal Block | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 10A | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.05mm² | ||
Maximum Wire Size mm² 1.31mm² | ||
Orientation Vertical | ||
Colour Green | ||
Standards/Approvals No | ||
Depth 7.3mm | ||
Series 2141 | ||
Length 7.6mm | ||
- COO (Country of Origin):
- RO
Wurth Elektronik WR-TBL are available in different connection types and offer large and modular terminal block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.
