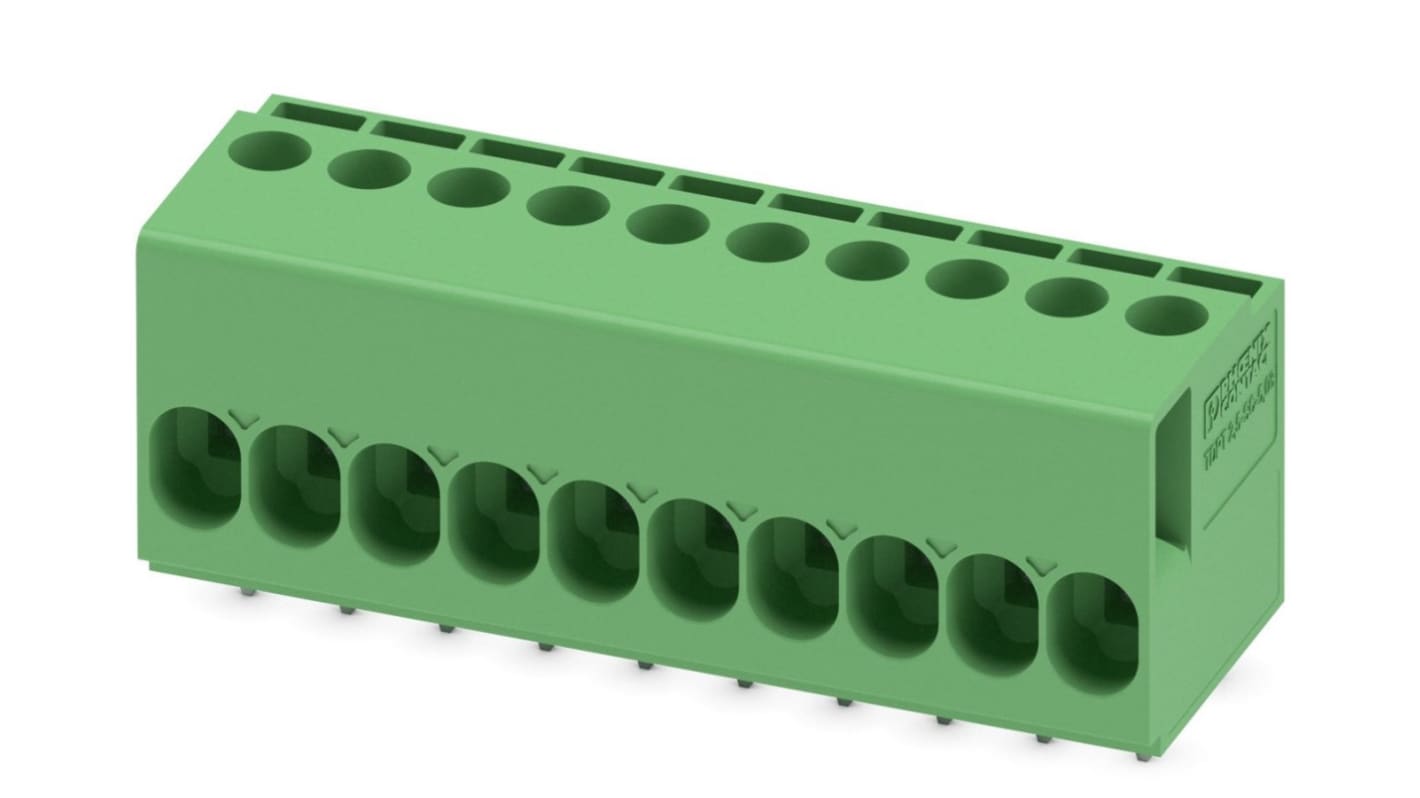

Phoenix Contact TDPT 2.5/ 10-SC-5.08 Series PCB Terminal Block, 10-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row,

View all PCB Terminal Blocks

Subtotal (1 unit)*

£5.95

(exc. VAT)

£7.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£5.95

*price indicative

Packaging Options:
RS Stock No.:
175-3923
Mfr. Part No.:
1017499
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

10

Pitch

5.08mm

Number of Rows

1

Mounting Type

Through Hole

Gender

Female

Termination Method

Screw

Type

PCB Terminal Block

Current Rating

24A

Body Orientation

Straight

Colour

Green

Voltage Rating

400 V

Series

TDPT 2.5/ 10-SC-5.08

Material

Copper Alloy (Contact)

Depth

19mm

Length

18mm

Width

51.6mm

COO (Country of Origin):
CN
PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 10, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green

Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
