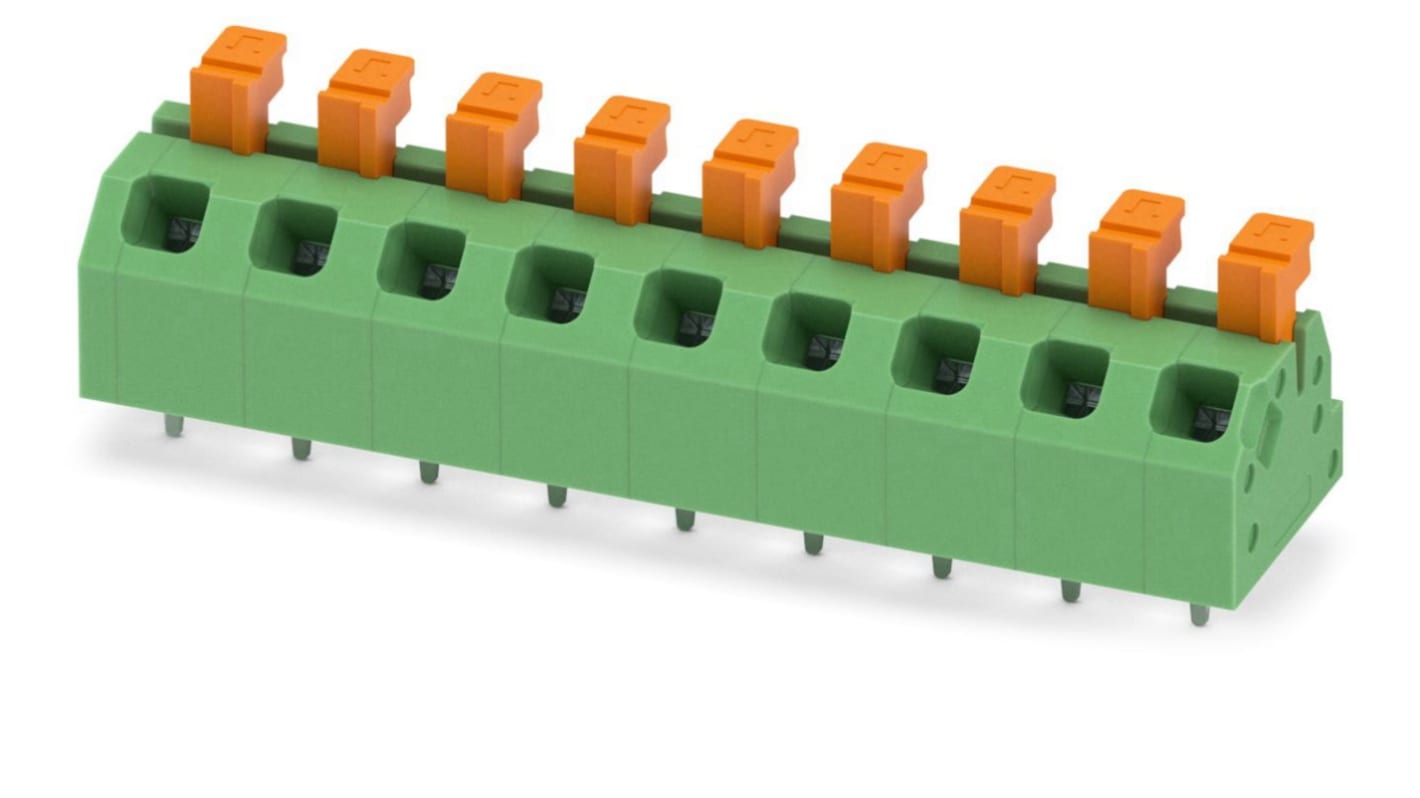

Phoenix Contact SPTAF 1/ 9-5.0-LL Series PCB Terminal Block, 9-Contact, 5 mm Pitch, 1 Row
- RS Stock No.:
- 151-1384
- Mfr. Part No.:
- 1864503
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 box of 70 units)*
£182.49
(exc. VAT)
£218.96
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 70 - 70 | £2.607 | £182.49 |
| 140 - 210 | £2.216 | £155.12 |
| 280 - 490 | £1.955 | £136.85 |
| 560 - 980 | £1.887 | £132.09 |
| 1050 + | £1.838 | £128.66 |
*price indicative
- RS Stock No.:
- 151-1384
- Mfr. Part No.:
- 1864503
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 9 | |
| Pitch | 5mm | |
| Current | 13.5A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 17AWG | |
| Orientation | Angled | |
| Wire Connection Method | Spring | |
| Colour | Green | |
| Voltage | 320V | |
| Depth | 13.5mm | |
| Length | 45mm | |
| Series | SPTAF 1/ 9-5.0-LL | |
| Standards/Approvals | EU RoHS, UL Recognised, cULus Recognised | |
| Width | 11mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 9 | ||
Pitch 5mm | ||
Current 13.5A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 17AWG | ||
Orientation Angled | ||
Wire Connection Method Spring | ||
Colour Green | ||
Voltage 320V | ||
Depth 13.5mm | ||
Length 45mm | ||
Series SPTAF 1/ 9-5.0-LL | ||
Standards/Approvals EU RoHS, UL Recognised, cULus Recognised | ||
Width 11mm | ||
PCB Terminal block, nominal current: 13.5 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Finger-operated and fixable release button for very convenient operation
Small component size for applications where space is at a premium
Quick and convenient testing using integrated test option
