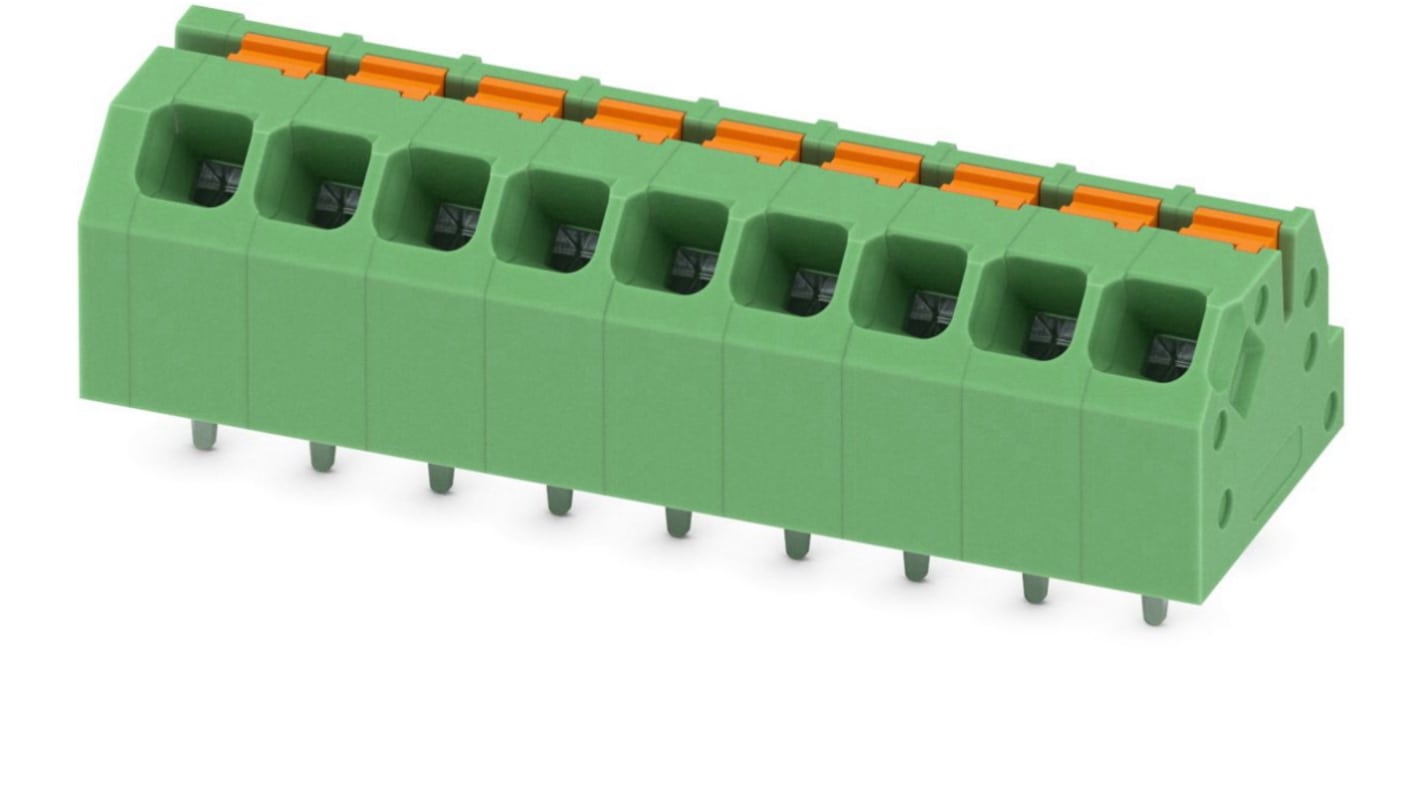

Phoenix Contact SPTAF 1/ 9-3.5-IL Series PCB Terminal Block, 9-Contact, 3.5 mm Pitch, 1 Row
- RS Stock No.:
- 174-4597
- Mfr. Part No.:
- 1862000
- Brand:
- Phoenix Contact
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£11.81
(exc. VAT)
£14.17
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 55 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.362 | £11.81 |
| 25 - 45 | £2.286 | £11.43 |
| 50 - 95 | £2.228 | £11.14 |
| 100 - 245 | £2.168 | £10.84 |
| 250 + | £2.112 | £10.56 |
*price indicative
- RS Stock No.:
- 174-4597
- Mfr. Part No.:
- 1862000
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 9 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.5mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Wire Connection Method | Spring | |
| Colour | Green | |
| Voltage | 160V | |
| Length | 11mm | |
| Depth | 8mm | |
| Standards/Approvals | No | |
| Width | 33mm | |
| Series | SPTAF 1/ 9-3.5-IL | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 9 | ||
Product Type PCB Terminal Block | ||
Pitch 3.5mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Wire Connection Method Spring | ||
Colour Green | ||
Voltage 160V | ||
Length 11mm | ||
Depth 8mm | ||
Standards/Approvals No | ||
Width 33mm | ||
Series SPTAF 1/ 9-3.5-IL | ||
- COO (Country of Origin):
- PL
PCB terminal block, nominal current: 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green
