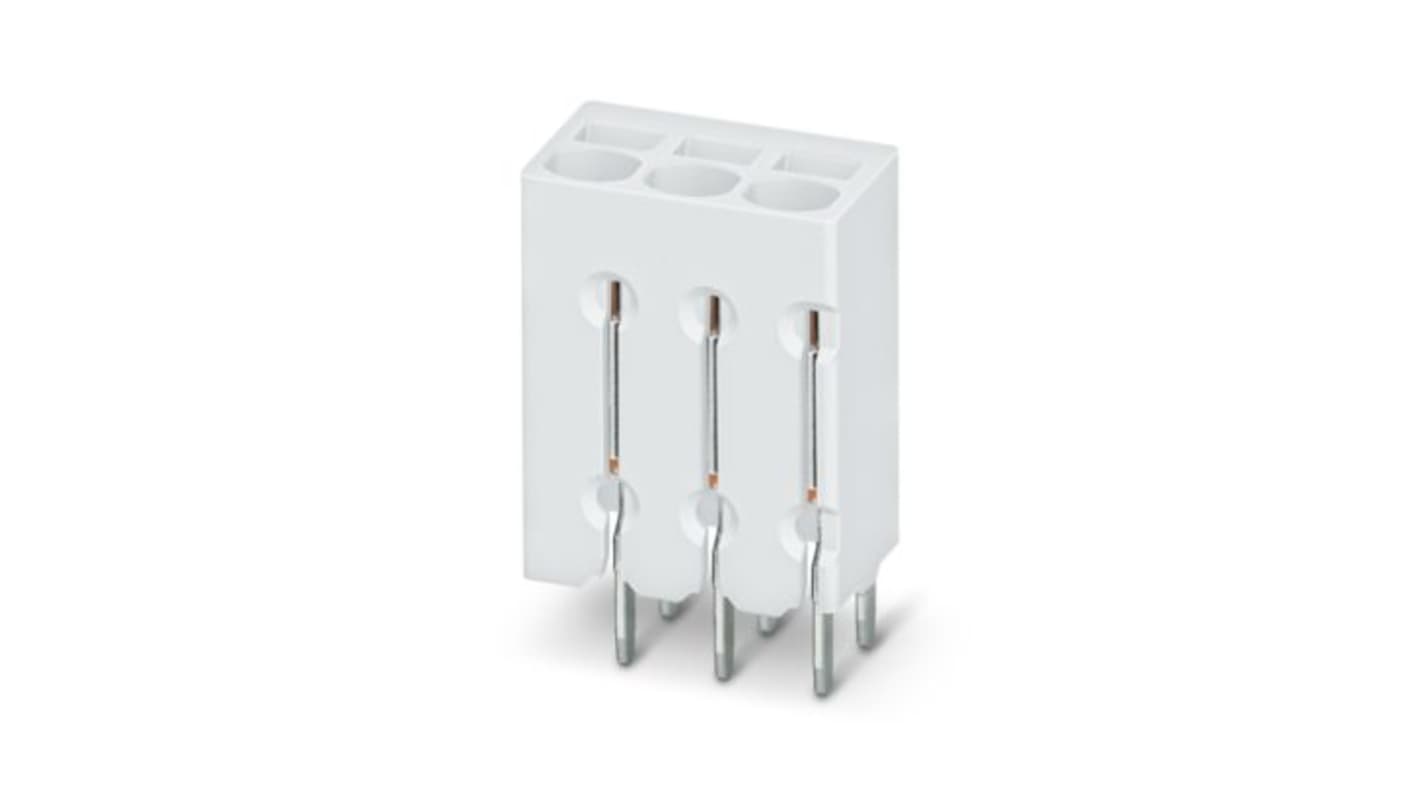

Phoenix Contact PCB Terminal Block, 3-Contact, 2.5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 638-733
- Mfr. Part No.:
- 1814579
- Brand:
- Phoenix Contact
Subtotal (1 pack of 310 units)*
£442.18
(exc. VAT)
£530.62
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £442.18 | £1.426 |
*price indicative
- RS Stock No.:
- 638-733
- Mfr. Part No.:
- 1814579
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 2.5mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Orientation | 90° | |
| Colour | Signal White | |
| Wire Connection Method | Push-in | |
| Voltage | 160V | |
| Width | 8mm | |
| Standards/Approvals | IEC 60664-1:2007-04, cULus Recognised (E60425-20030527), DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07, IEC 60112, IEC 60998-2-1:2002-12, IEC 60998-2-2:2002-12, UL 94 V0, UL Recognised (E118976-20130619), VDE (40048725) | |
| Length | 5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 2.5mm | ||
Number of Rows 1 | ||
Current 6A | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 20AWG | ||
Orientation 90° | ||
Colour Signal White | ||
Wire Connection Method Push-in | ||
Voltage 160V | ||
Width 8mm | ||
Standards/Approvals IEC 60664-1:2007-04, cULus Recognised (E60425-20030527), DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07, IEC 60112, IEC 60998-2-1:2002-12, IEC 60998-2-2:2002-12, UL 94 V0, UL Recognised (E118976-20130619), VDE (40048725) | ||
Length 5mm | ||
- COO (Country of Origin):
- IN
The Phoenix Contact PCB terminal block designed for reliability and efficiency in electrical connections. Its innovative push-in spring technology enables quick and tool-free assembly, making it ideal for modern applications where time and precision are critical. The terminal block accommodates a nominal current of 6 A and a rated voltage of 160 V, ensuring robust performance across various environments. Crafted from high-quality materials, this product ensures long-lasting durability and compliance with WEEE/RoHS directives, making it a responsible choice for eco-conscious engineers.
Supports integration into SMT soldering processes for increased efficiency
A compact design maximising PCB layout space
Provides stable connections with defined contact force ensuring reliability
Accommodates multiple rows for versatile installation options
