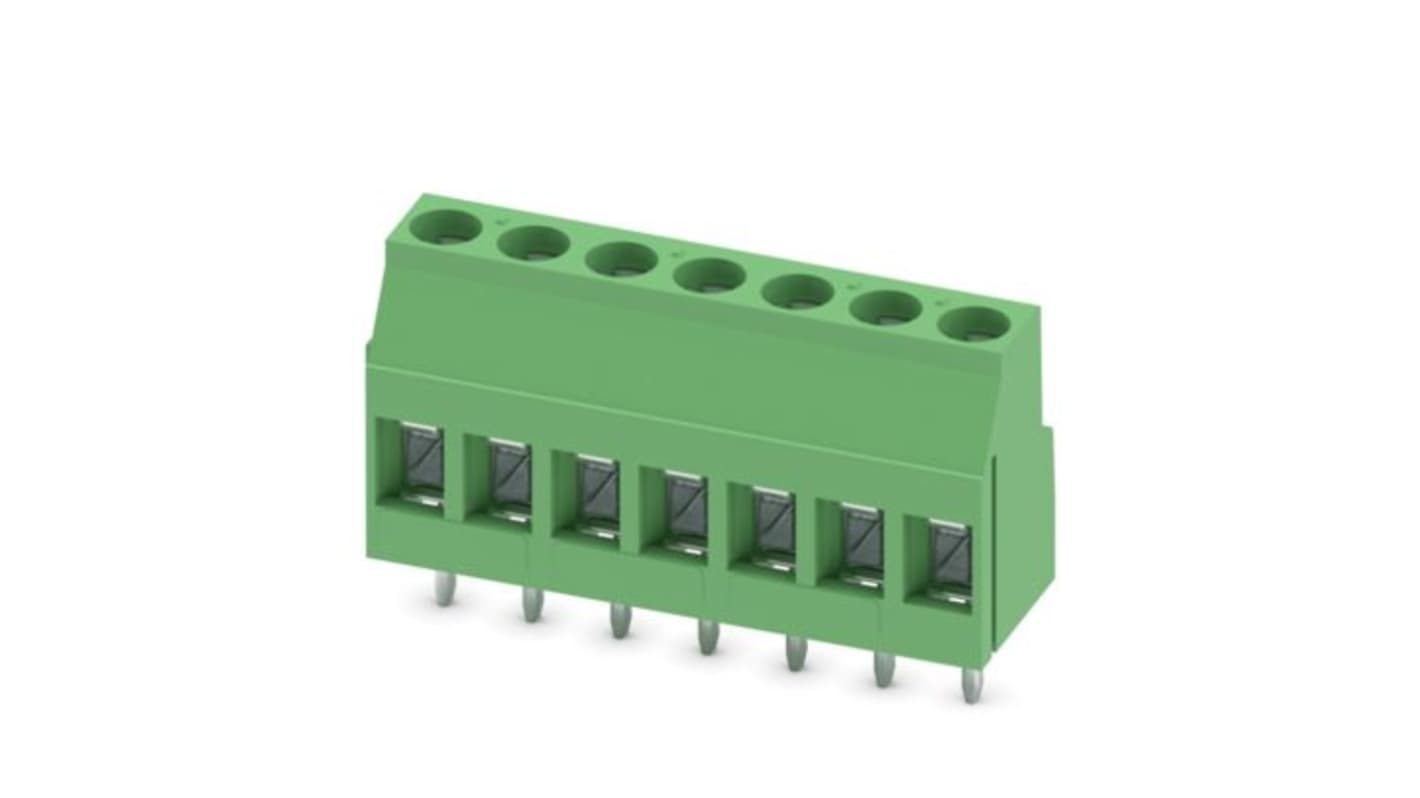

Phoenix Contact MKDS 3 Series PCB Terminal Block, 7-Contact, 5.08 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 638-544
- Mfr. Part No.:
- 1758658
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£220.03
(exc. VAT)
£264.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £220.03 | £4.401 |
*price indicative
- RS Stock No.:
- 638-544
- Mfr. Part No.:
- 1758658
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 7 | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 0° | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 40V | |
| Length | 11.2mm | |
| Width | 35.56mm | |
| Series | MKDS 3 | |
| Standards/Approvals | IEC 60999-1:1999-11, UL 94 V0, VDE 40055394, CSA 13631, cULus E60425-19770427, DNV GL TAE00001EV, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60112, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 7 | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 0° | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 40V | ||
Length 11.2mm | ||
Width 35.56mm | ||
Series MKDS 3 | ||
Standards/Approvals IEC 60999-1:1999-11, UL 94 V0, VDE 40055394, CSA 13631, cULus E60425-19770427, DNV GL TAE00001EV, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60112, IEC 60512-3-1:2002-02, IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, IEC 60947-7-4:2019-01 | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB terminal block serves as an efficient and versatile solution for various wiring applications. With a compact design, it is specifically engineered to accommodate a nominal current of 24 A and a rated voltage of 400 V, making it ideal for demanding environments. This product belongs to the MKDS 3 series, providing a proven connection principle that ensures reliability across applications. Its pitch of 5.08 mm allows for integration into dense circuit layouts, while the screw connection with tension sleeve technology guarantees secure and time-efficient installation. The quality of materials used underscores compliance with international standards, ensuring safety and longevity in operation.
Supports multiple connections while maintaining minimal space requirements
A distinct green housing colour for identification
Complies with WEEE/RoHS standards, prioritising environmental considerations
Backed by comprehensive technical specifications for assurance
