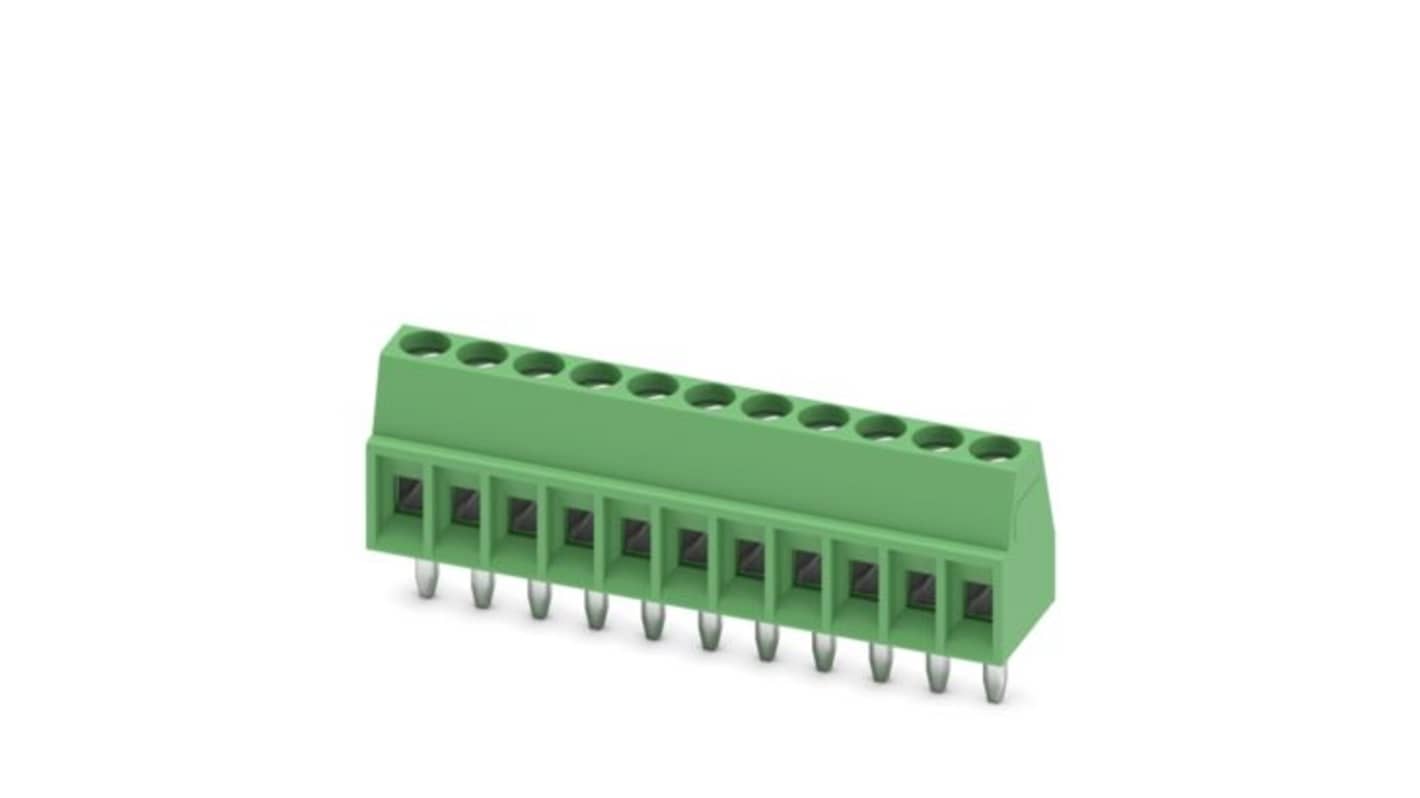

Phoenix Contact PCB Terminal Block, 11-Contact, 2.54 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 609-183
- Mfr. Part No.:
- 1725740
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£253.55
(exc. VAT)
£304.26
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £253.55 | £5.071 |
*price indicative
- RS Stock No.:
- 609-183
- Mfr. Part No.:
- 1725740
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 11 | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Orientation | 0° | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 160V | |
| Length | 6.2mm | |
| Width | 28.4mm | |
| Standards/Approvals | IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, CSA 13631, cULus E60425-19770427, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60512-3-1:2002-02, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, VDE 40053682 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 11 | ||
Pitch 2.54mm | ||
Current 6A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 20AWG | ||
Orientation 0° | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 160V | ||
Length 6.2mm | ||
Width 28.4mm | ||
Standards/Approvals IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09, CSA 13631, cULus E60425-19770427, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60512-3-1:2002-02, IEC 60947-7-4:2019-01, IEC 60999-1:1999-11, VDE 40053682 | ||
- COO (Country of Origin):
- GR
The Phoenix Contact PCB terminal block exemplifies precision and reliability in connection technology. Designed for easy integration into various applications, it features a compact design while supporting an impressive nominal current of 6 A and a rated voltage of 160 V. The product ensures secure and stable connections through its innovative screw connection mechanism, accommodating both rigid and flexible conductors. With a pitch of 2.54 mm and 11 positions, it allows efficient use of space on printed circuit boards, making it ideal for applications where footprint and performance are critical. Notably, its robust construction meets stringent environmental standards, ensuring compliance with WEEE and RoHS directives, which guarantees a long-lasting and efficient performance in demanding conditions.
Manufactured to be WEEE/RoHS compliant for environmental sustainability
Robust design meets high standards for quality and reliability
Tailored for wave soldering, providing streamlined assembly processes
High surge voltage ratings enhance safety in electrical applications
