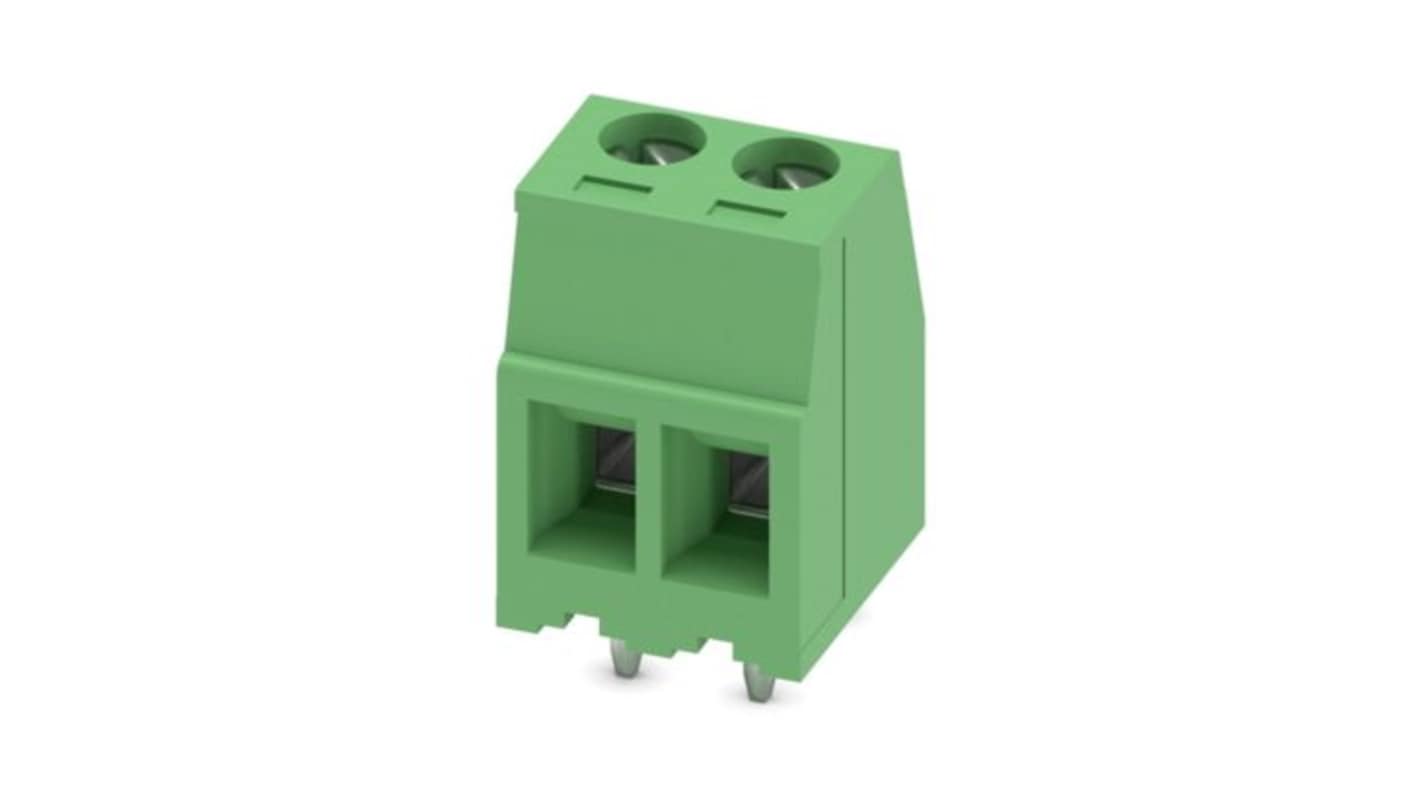

Phoenix Contact PCB Terminal Block, 2-Contact, 3.81 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 608-253
- Mfr. Part No.:
- 1705540
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£77.39
(exc. VAT)
£92.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £77.39 | £1.548 |
*price indicative
- RS Stock No.:
- 608-253
- Mfr. Part No.:
- 1705540
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 2 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.14mm² | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 0° | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 32V | |
| Length | 9.3mm | |
| Standards/Approvals | VDE, cULus Recognised | |
| Width | 8.71mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 2 | ||
Product Type PCB Terminal Block | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 8A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.14mm² | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 0° | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 32V | ||
Length 9.3mm | ||
Standards/Approvals VDE, cULus Recognised | ||
Width 8.71mm | ||
- COO (Country of Origin):
- BG
The Phoenix Contact PCB terminal block is expertly crafted for efficient and reliable connections in various applications. Designed for ease of use and superior functionality, this terminal block ensures optimal performance for printed circuit boards. It features robust construction to withstand demanding conditions while maintaining a compact footprint. With a distinct screw connection method that incorporates tension sleeves, securing connections has never been easier.
Accommodates the connection of two conductors simultaneously
Dual solder pins reduce mechanical strain for improved durability
Side latching feature allows flexibility in combining different positions
