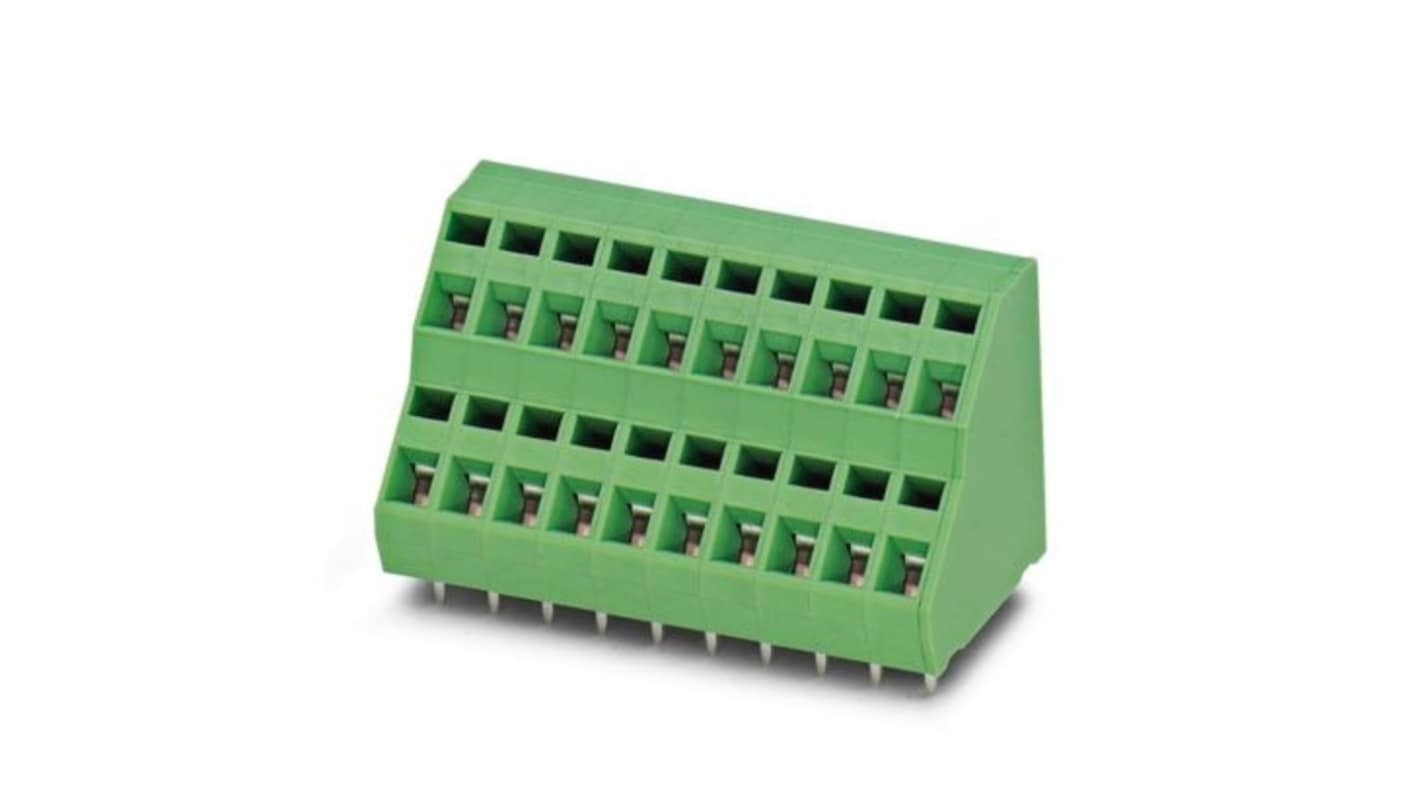

Phoenix Contact ZFK3DSA Series PCB Terminal Block, 8-Contact, 5.08 mm Pitch, Wave Soldering Mount, 2 Row
- RS Stock No.:
- 522-111
- Mfr. Part No.:
- 1891030
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£90.27
(exc. VAT)
£108.32
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £90.27 | £9.027 |
*price indicative
- RS Stock No.:
- 522-111
- Mfr. Part No.:
- 1891030
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 8 | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Rows | 2 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 45° | |
| Colour | Green | |
| Wire Connection Method | Spring Cage | |
| Voltage | 40V | |
| Length | 24mm | |
| Depth | 29mm | |
| Series | ZFK3DSA | |
| Width | 41.64mm | |
| Standards/Approvals | CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19941111, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-82/JEDEC JESD 201, UL 94 V0, WEEE/RoHS-compliant | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 8 | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Rows 2 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 45° | ||
Colour Green | ||
Wire Connection Method Spring Cage | ||
Voltage 40V | ||
Length 24mm | ||
Depth 29mm | ||
Series ZFK3DSA | ||
Width 41.64mm | ||
Standards/Approvals CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19941111, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-82/JEDEC JESD 201, UL 94 V0, WEEE/RoHS-compliant | ||
- COO (Country of Origin):
- IN
The Phoenix Contact PCB terminal block offers an innovative solution for your circuit board needs. Designed to handle a nominal current of 12 A and rated voltage of 400 V, this component ensures reliable power distribution in electronic applications. Its unique spring-cage connection method simplifies installation, allowing for multiple conductor connections at different levels. This functionality enhances space efficiency and improves contact density. The terminal block's robust construction also guarantees long-term reliability under various operating conditions. With a pitch of 5.08 mm and 16 connections distributed across 2 rows, this product is engineered for versatility, catering to diverse project requirements. The attractive green housing not only distinguishes it but also withstands demanding environments, ensuring it remains a practical choice for engineers and technicians alike.
Designed for precise alignment on printed circuit boards
Features a green housing that meets stringent flammability ratings
Allows for higher contact density with multi-level conductor connections
The fixed screwdriver access simplifies the connection process
Includes a linear pinning layout for consistent alignment
Constructed from materials that comply with WEEE and RoHS standards
Engineered for operational reliability in a temperature range of -40 °C to 100 °C
