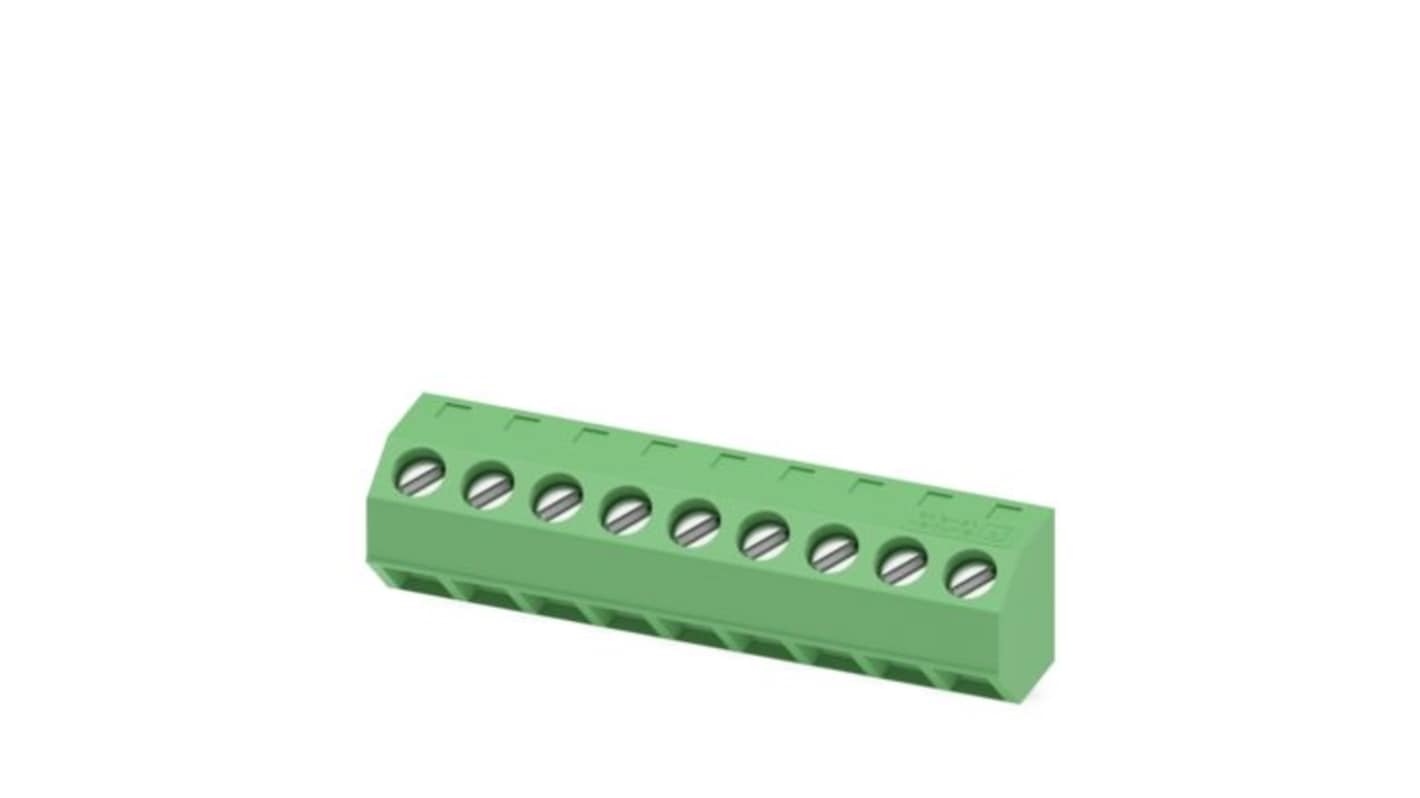

Phoenix Contact SMKDSNF 1 Series PCB Terminal Block, 9-Contact, 5.08 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 521-404
- Mfr. Part No.:
- 1877559
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 521-404
- Mfr. Part No.:
- 1877559
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 9 | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Mount Type | Wave Soldering Mount | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 325° | |
| Colour | Green | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 40V | |
| Series | SMKDSNF 1 | |
| Standards/Approvals | cULus Recognised Approval ID: E60425-19770427, IEC 60512-2:1985-00, EN 60695-2-12, EN 60695-10-2, IEC 60664-1:2007-04, IEC 60999-1:1990-05, UL 94 V0, VDE approval of drawings Approval ID: 40055535, EN 60695-2-13, IEC 60112, CSA Approval ID: 13631 | |
| Length | 16mm | |
| Width | 46.72mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 9 | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Rows 1 | ||
Mount Type Wave Soldering Mount | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 325° | ||
Colour Green | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 40V | ||
Series SMKDSNF 1 | ||
Standards/Approvals cULus Recognised Approval ID: E60425-19770427, IEC 60512-2:1985-00, EN 60695-2-12, EN 60695-10-2, IEC 60664-1:2007-04, IEC 60999-1:1990-05, UL 94 V0, VDE approval of drawings Approval ID: 40055535, EN 60695-2-13, IEC 60112, CSA Approval ID: 13631 | ||
Length 16mm | ||
Width 46.72mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact printed circuit board terminal block is specially designed for efficient and reliable connections in a compact form factor. Its innovative screw connection method ensures optimum contact force, contributing to a low temperature rise during operation. With a nominal current of 12 A and a rated voltage of up to 400 V, this versatile component is suitable for various applications requiring robust electrical performance. The product boasts a linear pin layout and a manageable pitch of 5.08 mm, allowing for straightforward integration into PCB designs. Ideal for use in automated processes, this terminal block facilitates easy wave soldering and features easy-to-handle solder pins for efficient assembly. Additionally, its encapsulation in a durable green housing not only enhances its aesthetic appeal but also ensures protection against environmental factors. This terminal block stands out for its excellent operational parameters and user-friendly features.
Designed for worldwide use with a well-known connection principle
Compact and lightweight, optimising space in PCB layouts
Allows for the connection of two conductors, enhancing versatility
Robust design ensures long-lasting reliability and performance
Manufactured to comply with WEEE and RoHS directives
Features a high tightening torque range for secure connections
Capable of operating in a wide ambient temperature range
Meets stringent electrical safety standards for peace of mind
Equipped with easy-to-use screw head forms for convenient handling
