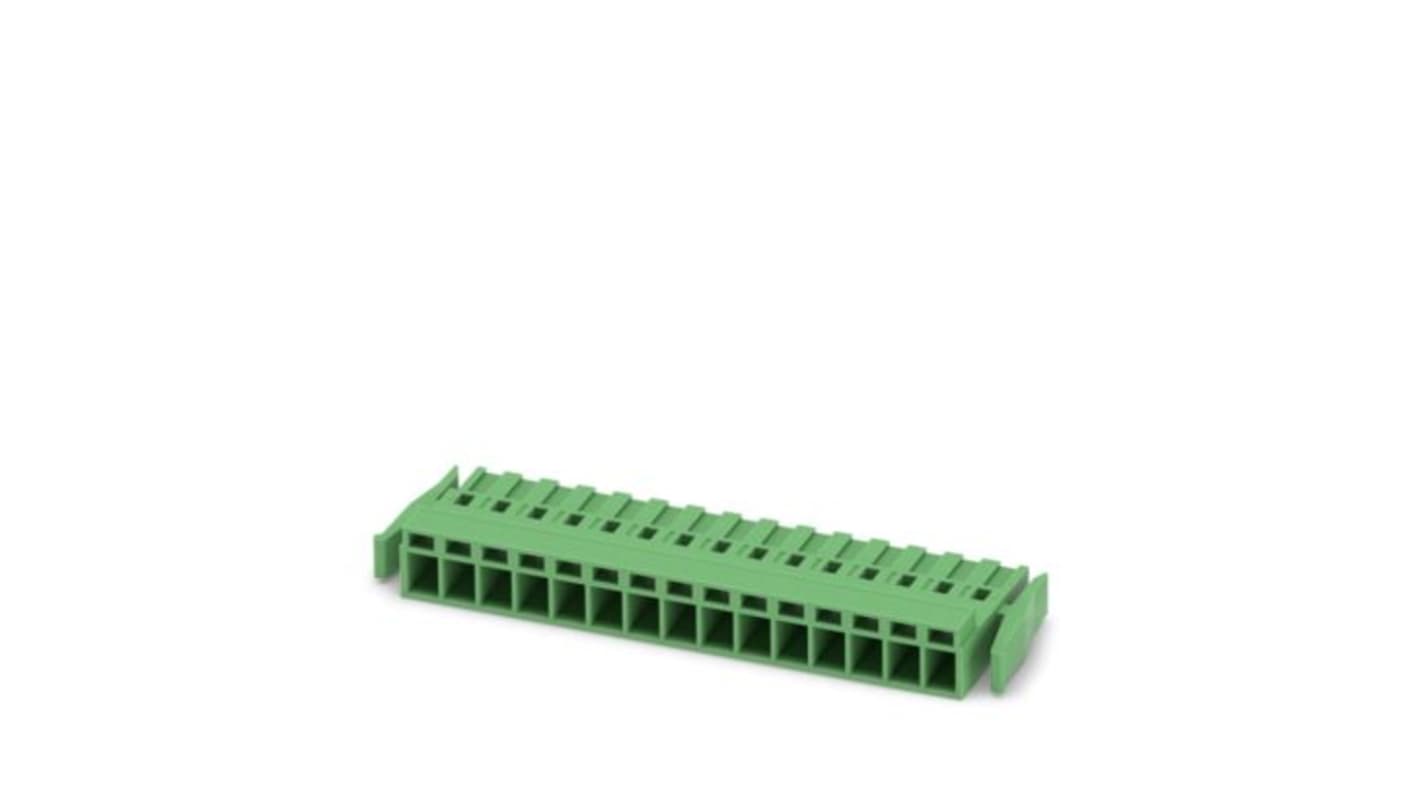

Phoenix Contact MSTBC Series PCB Connector, 15-Contact, 5.08 mm Pitch, 1 Row Crimp
- RS Stock No.:
- 521-042
- Mfr. Part No.:
- 1809174
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 521-042
- Mfr. Part No.:
- 1809174
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 15 | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Colour | Green | |
| Termination Type | Crimp | |
| Voltage | 320V | |
| Contact Gender | Female | |
| Width | 86.63mm | |
| Standards/Approvals | IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | |
| Depth | 10.5mm | |
| Length | 25mm | |
| Series | MSTBC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 15 | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Colour Green | ||
Termination Type Crimp | ||
Voltage 320V | ||
Contact Gender Female | ||
Width 86.63mm | ||
Standards/Approvals IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | ||
Depth 10.5mm | ||
Length 25mm | ||
Series MSTBC | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB Connector is designed for high-performance applications, delivering reliable connections within demanding environments. With a robust construction and an intuitive locking mechanism, it ensures secure connectivity while handling substantial electrical loads. The connector features an innovative crimp connection for effective conductor integration, making it an ideal choice for various electronic projects. Its compact design maximises space efficiency on printed circuit boards, facilitating neat and manageable layouts. Designed for ease of use, this connector allows for uncomplicated assembly and installation, leading to reduced operational downtime. With a wide operating temperature range, it is engineered to perform optimally in diverse conditions, ensuring longevity and durability in use.
Robust construction enhances durability in challenging environments
Intuitive locking mechanism prevents accidental disconnection
Crimp connection method simplifies wiring processes
Compact size optimises space on printed circuit boards
Wide operating temperature range accommodates various applications
Latching flange mount provides secure installation options
High current rating allows for versatile electrical applications
Compatible with COMBICON connectors for expanded connectivity solutions
