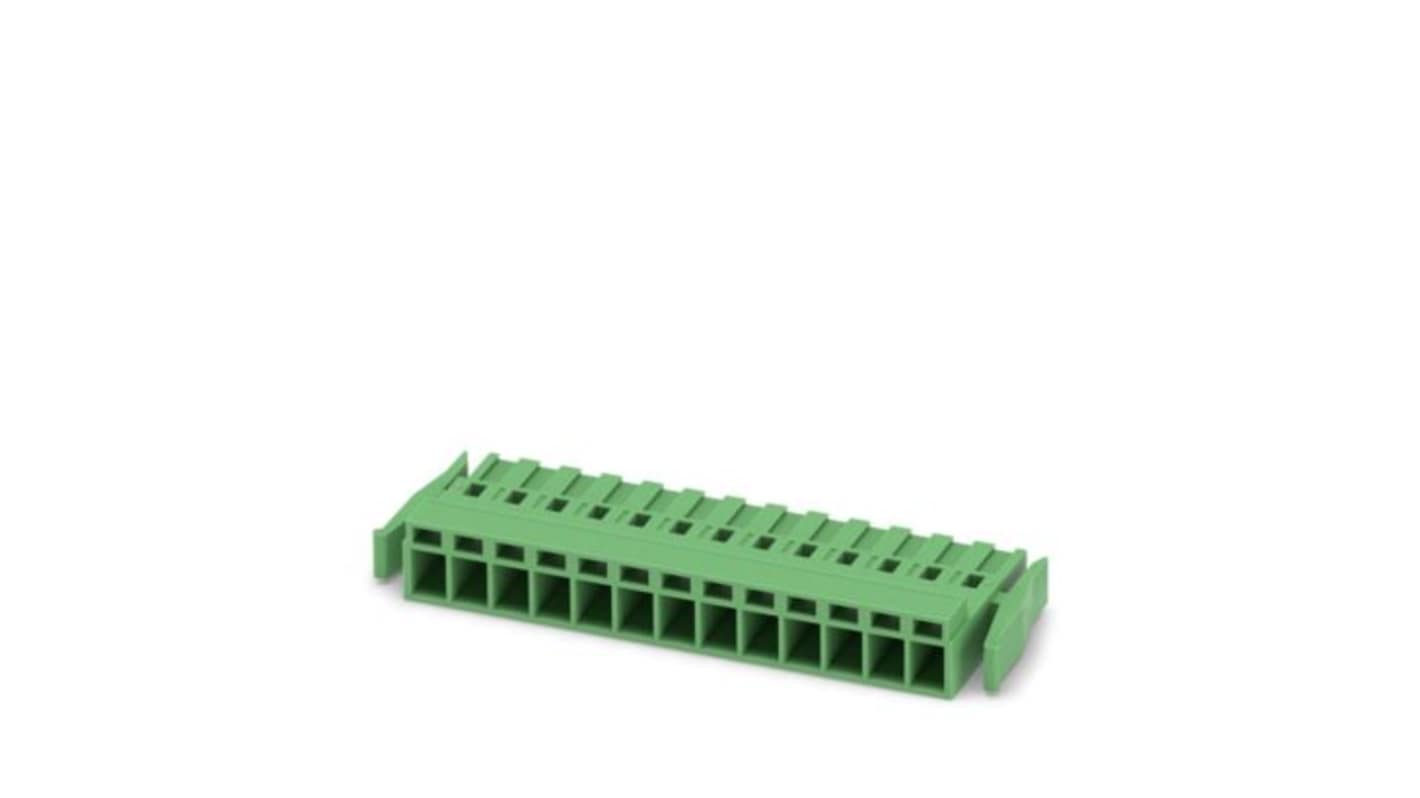

Phoenix Contact MSTBC Series PCB Connector, 13-Contact, 5.08 mm Pitch, 1 Row Crimp
- RS Stock No.:
- 521-041
- Mfr. Part No.:
- 1809158
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£171.21
(exc. VAT)
£205.45
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £171.21 | £3.424 |
*price indicative
- RS Stock No.:
- 521-041
- Mfr. Part No.:
- 1809158
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 13 | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Colour | Green | |
| Termination Type | Crimp | |
| Contact Gender | Female | |
| Voltage | 320V | |
| Standards/Approvals | IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | |
| Depth | 10.5mm | |
| Width | 71.39mm | |
| Series | MSTBC | |
| Length | 25mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 13 | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Colour Green | ||
Termination Type Crimp | ||
Contact Gender Female | ||
Voltage 320V | ||
Standards/Approvals IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | ||
Depth 10.5mm | ||
Width 71.39mm | ||
Series MSTBC | ||
Length 25mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB connector is specifically designed for reliable and efficient connectivity in various applications. This innovative connector seamlessly integrates into your circuits, ensuring optimal performance with minimal effort. Its compact design and thoughtful engineering allow for simple assembly while ensuring robust electrical connections. With a nominal current capacity of 12 A and a rated voltage of 320 V, this product is ideal for use in demanding environments. The crimp connection method and intuitive locking system offer both security and ease of use, making it a preferred choice for professionals in the industry. Whether for new projects or upgrading existing installations, this connector is the practical solution for your PCB connection needs.
Easy installation with a crimp connection method
Designed to accommodate a wide range of conductor cross sections
Features a robust snap-in locking mechanism for enhanced reliability
Constructed from high-quality insulating material for safety
Compatible with various environmentally friendly requirements
Ideal for high-density applications due to a compact footprint
Offers excellent thermal range for diverse environmental conditions
