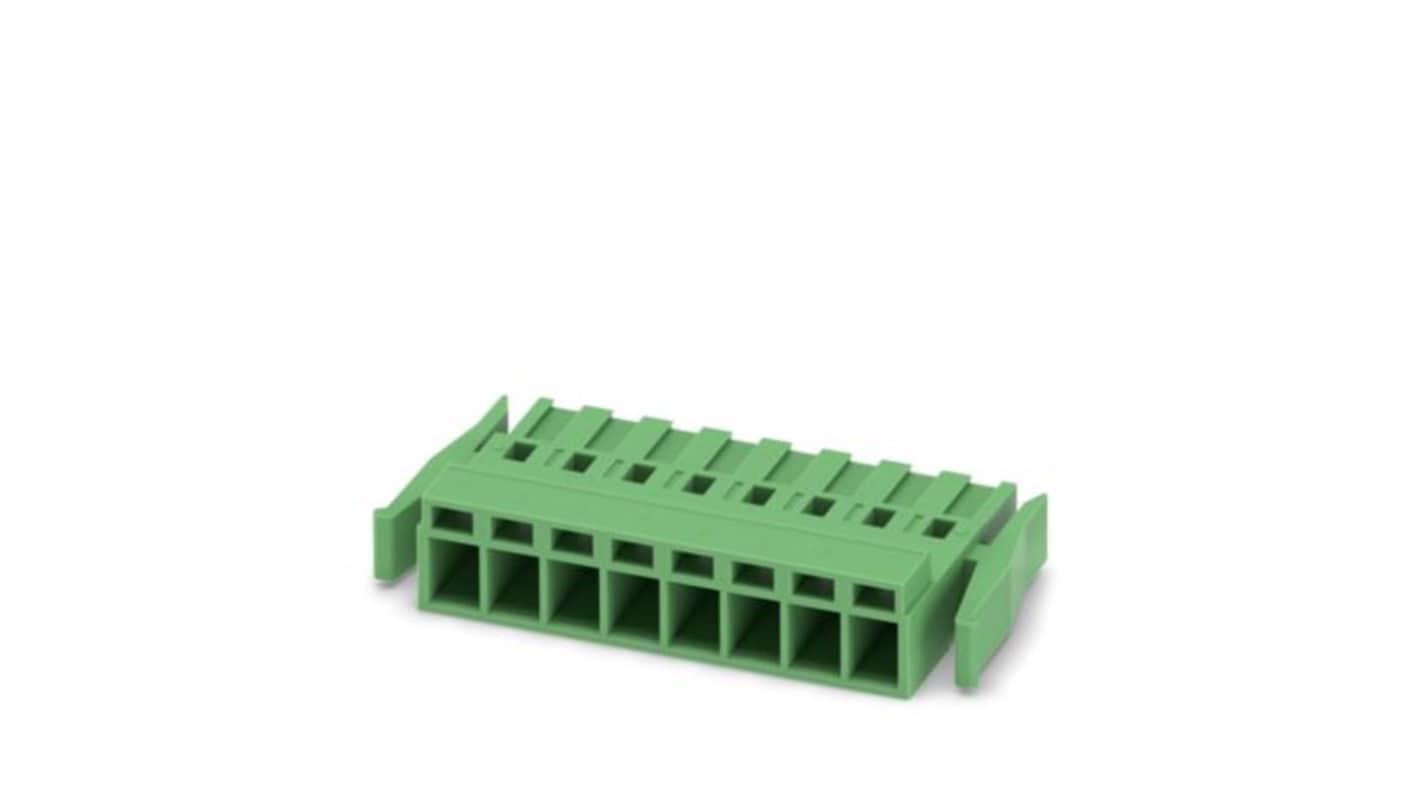

Phoenix Contact MSTBC Series PCB Connector, 8-Contact, 5.08 mm Pitch, 1 Row Crimp
- RS Stock No.:
- 521-038
- Mfr. Part No.:
- 1809103
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 521-038
- Mfr. Part No.:
- 1809103
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | PCB Connector | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Colour | Green | |
| Termination Type | Crimp | |
| Voltage | 320V | |
| Contact Gender | Female | |
| Series | MSTBC | |
| Depth | 10.5mm | |
| Length | 25mm | |
| Standards/Approvals | IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | |
| Width | 51.07mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type PCB Connector | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Colour Green | ||
Termination Type Crimp | ||
Voltage 320V | ||
Contact Gender Female | ||
Series MSTBC | ||
Depth 10.5mm | ||
Length 25mm | ||
Standards/Approvals IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | ||
Width 51.07mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB connector is designed for reliable connectivity in compact electronic applications. This innovative connector offers enhanced performance with its 2.5 mm² nominal cross section and a robust construction tailored for demanding electrical tasks. Ideal for use in automated systems, the connector features a crimp connection method that ensures secure and efficient conductor attachment. Its snap-in locking mechanism not only simplifies installation but also provides a secure fit, minimising the risk of accidental disconnection. With an operation temperature range of -40°C to 100°C, this product is built to perform effectively under varying environmental conditions, making it a reliable choice for both indoor and outdoor applications.
Provides intuitive handling with a user-friendly locking mechanism
Designed to facilitate the connection of multiple conductors simultaneously
Constructed to withstand a wide range of operating temperatures
Features a compact footprint, optimising space in electronic assemblies
Offers a latching flange for secure mounting and stability
Manufactured with high-quality materials ensuring long-term durability
Ethically produced with a focus on environmental compliance
