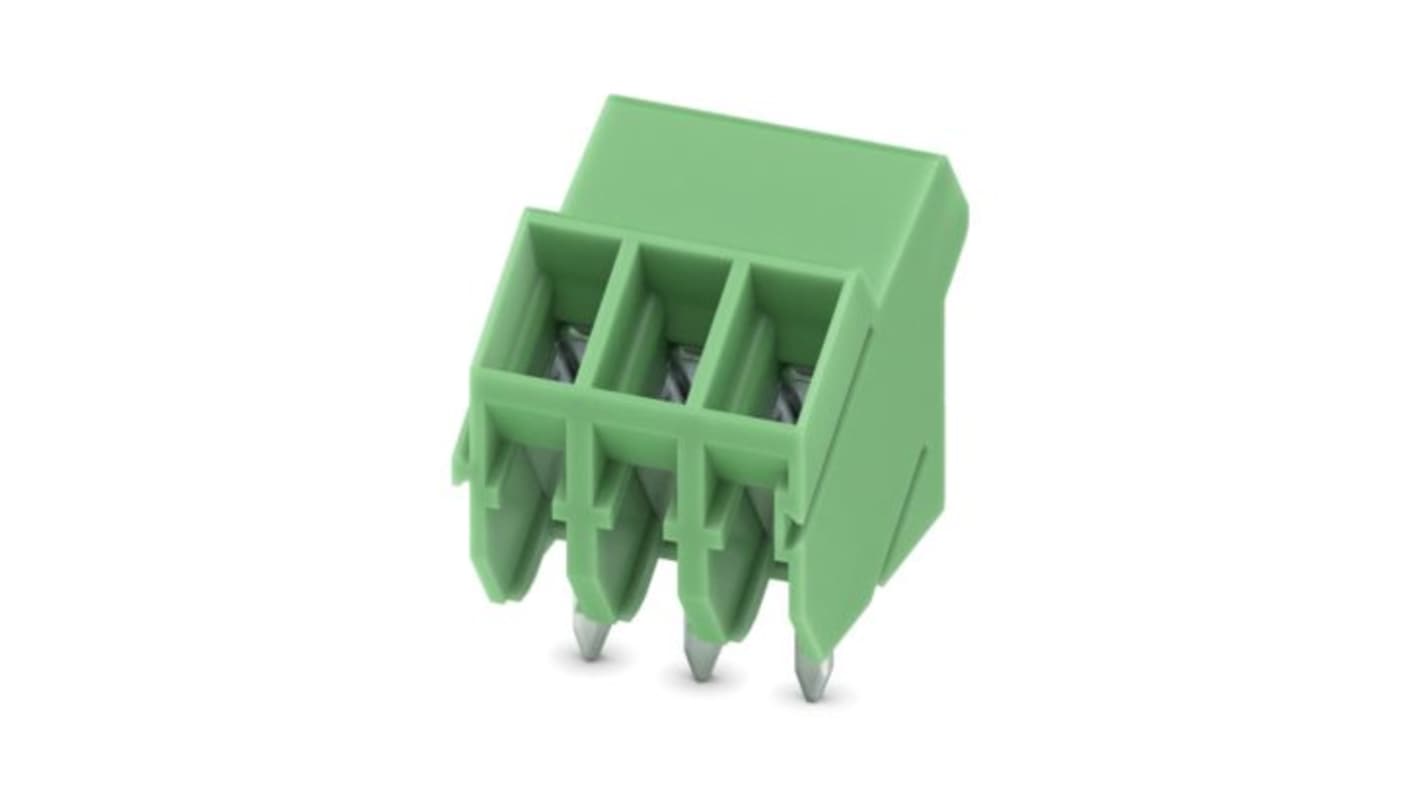

Phoenix Contact SMKDS 1 Series PCB Terminal Block, 3-Contact, 3.5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 520-160
- Mfr. Part No.:
- 1931783
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 520-160
- Mfr. Part No.:
- 1931783
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 35° | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Colour | Green | |
| Voltage | 160V | |
| Width | 10.5mm | |
| Series | SMKDS 1 | |
| Standards/Approvals | No | |
| Length | 13.7mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 35° | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Colour Green | ||
Voltage 160V | ||
Width 10.5mm | ||
Series SMKDS 1 | ||
Standards/Approvals No | ||
Length 13.7mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact printed circuit board terminal block is designed for robust and reliable electrical connections in various applications. The SMKDS 1.5 series provides a compact solution with a pitch of 3.5 mm, allowing for efficient use of space on your PCB. With the ability to accommodate three positions, it enables seamless multi-row arrangements, making it particularly versatile for complex circuitry. The solder pins are engineered to ensure maximal contact force, leading to a lower temperature rise during operation. This enhances the overall durability and efficiency of the electrical connection, which is crucial in demanding environments. The product's screw connection with a tension sleeve provides easy and secure conductor connectivity, ensuring operational safety and efficiency across various applications.
Compact design optimises space utilisation on PCBs
Allows connection of multiple conductors for added versatility
Screw connection ensures secure and stable electrical contacts
WEEE and RoHS compliant for environmentally responsible use
Angled connection supports multi-row assembly enhancing layout flexibility
Low temperature rise supports reliable, long-term performance
