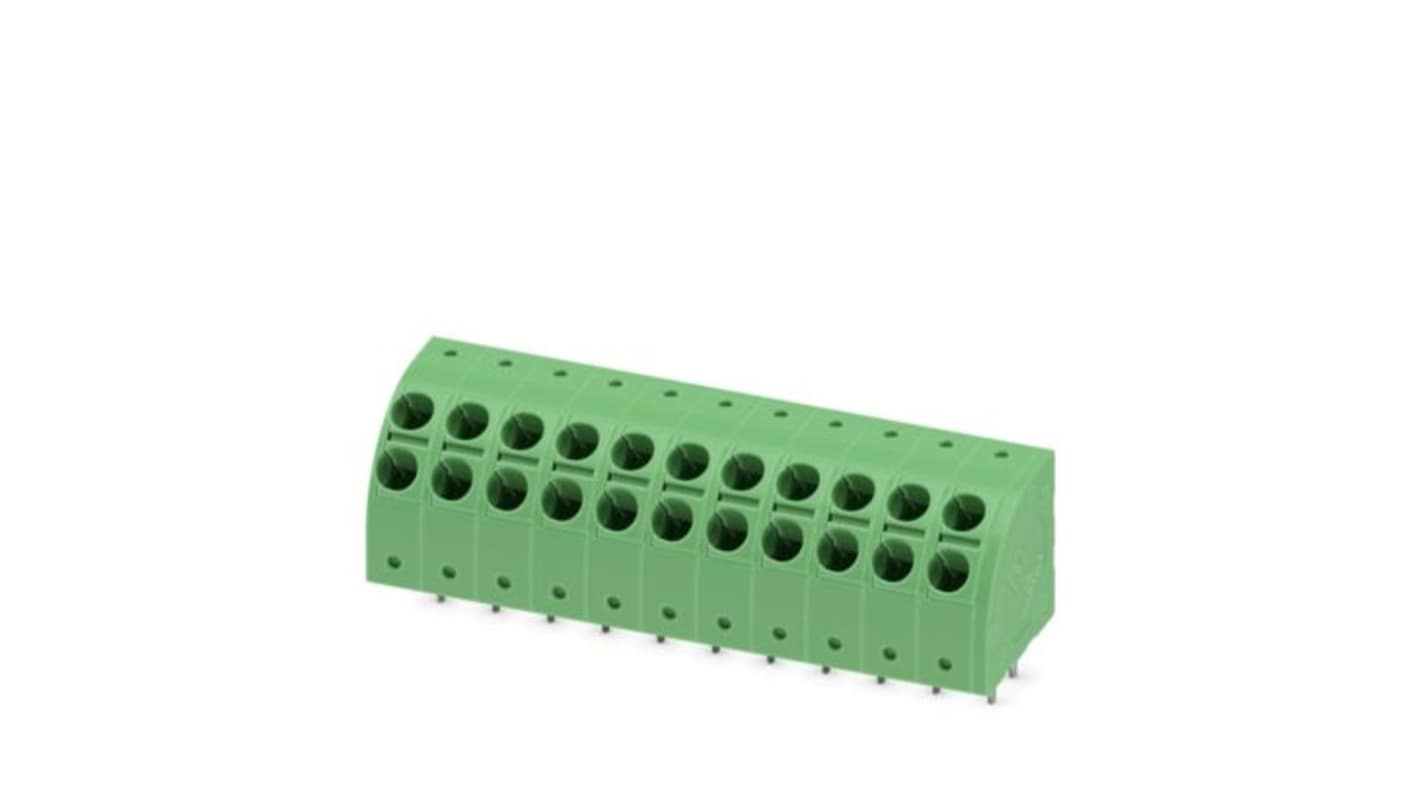

Phoenix Contact PTDA 2 Series PCB Terminal Block, 11-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 518-714
- Mfr. Part No.:
- 1725419
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£206.23
(exc. VAT)
£247.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £206.23 | £4.125 |
*price indicative
- RS Stock No.:
- 518-714
- Mfr. Part No.:
- 1725419
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 11 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push-in | |
| Colour | Green | |
| Voltage | 40V | |
| Standards/Approvals | cULus Recognised, VDE report with production monitoring | |
| Length | 16mm | |
| Width | 55mm | |
| Series | PTDA 2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 11 | ||
Product Type PCB Terminal Block | ||
Pitch 5mm | ||
Current 24A | ||
Number of Rows 1 | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 45° | ||
Wire Connection Method Push-in | ||
Colour Green | ||
Voltage 40V | ||
Standards/Approvals cULus Recognised, VDE report with production monitoring | ||
Length 16mm | ||
Width 55mm | ||
Series PTDA 2 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact printed circuit board terminal represents the culmination of innovative design tailored for seamless connectivity. With a nominal current rating of 24 A and a rated voltage of 400 V, this terminal block is engineered for reliability in various applications. The push-in spring connection method allows for effortless installation without the need for specialised tools, while its robust construction ensures long-lasting performance. Additionally, its unique pin layout enhances flexibility for diverse circuit configurations, making it suitable for BUS applications. The environmentally friendly design adheres to EU RoHS regulations, ensuring compliance with modern sustainability standards. With a compact size and lightweight design, this product stands out in both efficiency and practicality, offering optimal solutions for electrical engineering needs.
Employs push-in spring connection for quick and easy installation
Designed for high performance with a robust construction for durability
Optimised for flexible circuit configurations to enhance versatility
Integrates a testing option for convenient circuit diagnostics
Environmentally compliant, ensuring responsible usage and disposal
Compact form factor aids in saving space during installation
Features innovative mechanics to reduce mechanical strain on connections
