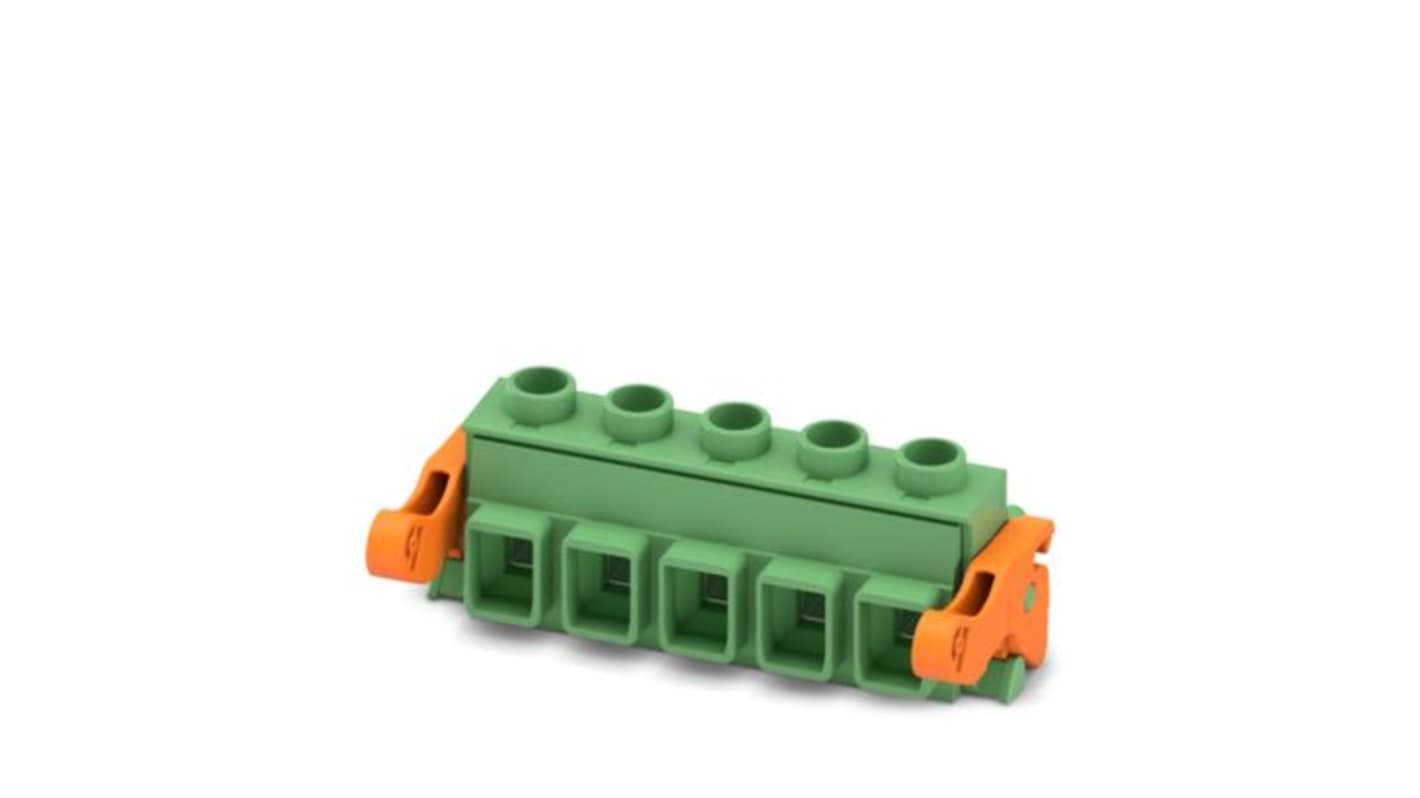

Phoenix Contact GMSTB 2 Series PCB Connector, 5-Contact, 7.62 mm Pitch, 1 Row Screw
- RS Stock No.:
- 517-009
- Mfr. Part No.:
- 1812788
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£533.33
(exc. VAT)
£640.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £533.33 | £10.667 |
*price indicative
- RS Stock No.:
- 517-009
- Mfr. Part No.:
- 1812788
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 5 | |
| Product Type | PCB Connector | |
| Pitch | 7.62mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Termination Type | Screw | |
| Colour | Green | |
| Contact Gender | Female | |
| Voltage | 1000V | |
| Length | 29.1mm | |
| Series | GMSTB 2 | |
| Standards/Approvals | EN 60695-2-13, VDE, IEC 61984, IEC 60664-1:2007-04, IEC 60112, EN 60695-2-12, UL 94, cULus Recognised, CSA | |
| Width | 45.7mm | |
| Depth | 17.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Product Type PCB Connector | ||
Pitch 7.62mm | ||
Number of Rows 1 | ||
Current 16A | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Termination Type Screw | ||
Colour Green | ||
Contact Gender Female | ||
Voltage 1000V | ||
Length 29.1mm | ||
Series GMSTB 2 | ||
Standards/Approvals EN 60695-2-13, VDE, IEC 61984, IEC 60664-1:2007-04, IEC 60112, EN 60695-2-12, UL 94, cULus Recognised, CSA | ||
Width 45.7mm | ||
Depth 17.5mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB connector is designed for exceptional reliability and versatility in various applications. The compact yet robust design ensures optimal performance, making it ideal for industrial environments. With a nominal cross-section of 2.5 mm², this connector effectively handles currents of up to 16 A while maintaining a rated voltage of 1000 V. Its green colour not only signifies quality but also promotes ease of identification. The innovative screw connection with tension sleeve enhances security and simplifies installation, ensuring that users experience minimal downtime. Incorporating advanced features like automatic locking and an intuitive release mechanism, this product guarantees safe and efficient connections.
Features a compact design for space-saving installation
Offers reliable connections through a lock-and-release mechanism
Integrates double steel springs for additional safety against fluctuations
Provides a robust performance in extreme temperature ranges
Ensures easy handling with a user-friendly screw head form
Compatible with COMBICON MSTB 2,5 HC connector systems
Manufactured from high-quality materials to enhance durability
