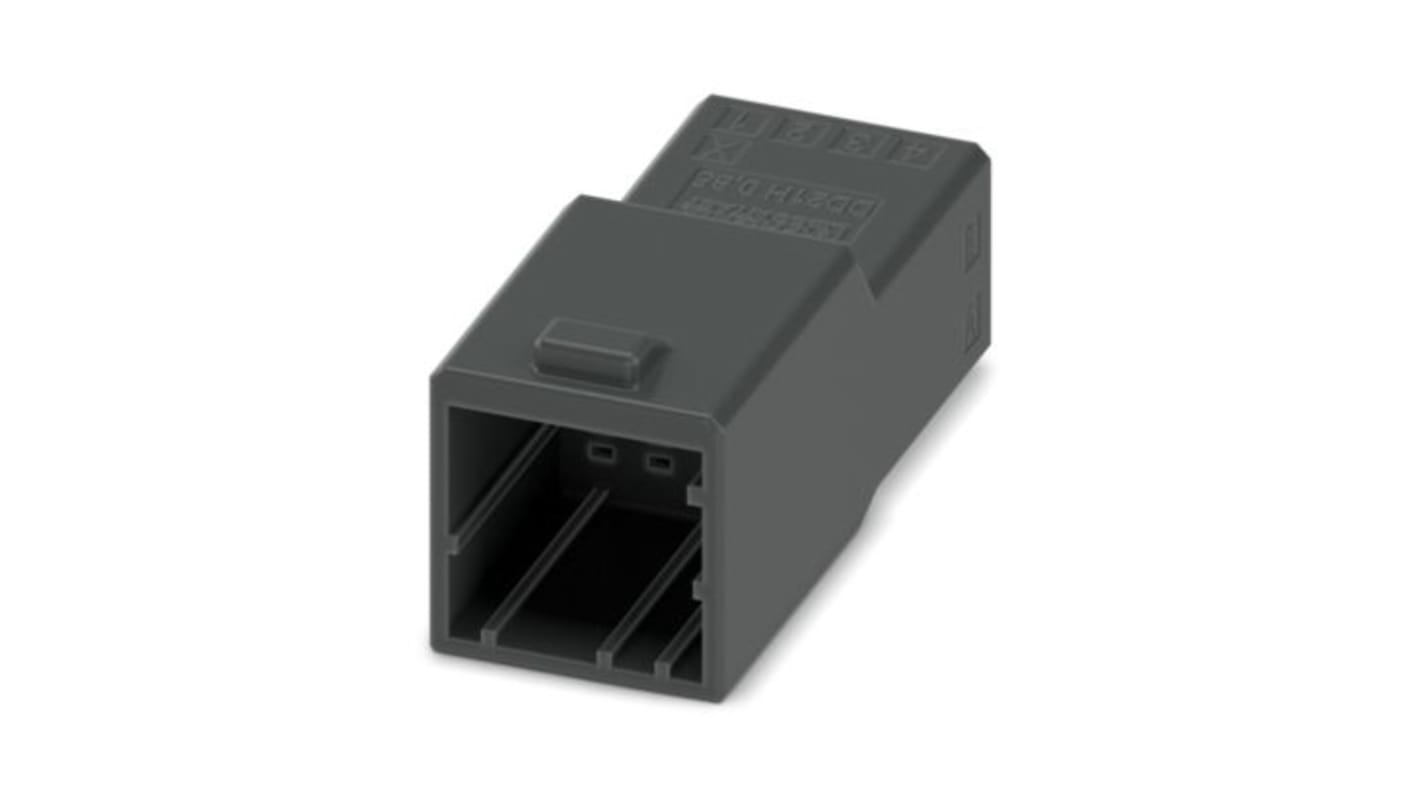

Phoenix Contact DD21H Series PCB Connector, 8-Contact, 2.5 mm Pitch, Snap-in, 1 Row Crimp
- RS Stock No.:
- 496-911
- Mfr. Part No.:
- 1378343
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£62.12
(exc. VAT)
£74.54
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £62.12 | £1.242 |
*price indicative
- RS Stock No.:
- 496-911
- Mfr. Part No.:
- 1378343
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | PCB Connector | |
| Pitch | 2.5mm | |
| Current | 5A | |
| Number of Rows | 1 | |
| Mount Type | Snap-in | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Female | |
| Colour | Black | |
| Termination Type | Crimp | |
| Voltage | 160V | |
| Standards/Approvals | IEC 60512-1-2:2002-02, IEC 60512-3-1:2002-02, UL Recognised Approval ID: E118976-20240617, CHINA RoHS, IEC 60512-1-1:2002-02, DIN EN 61984, IEC 60512-13-5:2006-02, IEC 60512-9-1:2010-03, IEC 60512-15-1:2008-05, IEC 60068-2-70:1995-12, IEC 60664-1:2020-05, EU REACH, IEC 60068-2-6:2007-12, ISO 6988:1985-02, IEC 60512-5-1:2002-02, EU RoHS, IEC 60068-2-27:2008-02 | |
| Series | DD21H | |
| Length | 30.69mm | |
| Width | 12.7mm | |
| Depth | 14.7mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type PCB Connector | ||
Pitch 2.5mm | ||
Current 5A | ||
Number of Rows 1 | ||
Mount Type Snap-in | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Female | ||
Colour Black | ||
Termination Type Crimp | ||
Voltage 160V | ||
Standards/Approvals IEC 60512-1-2:2002-02, IEC 60512-3-1:2002-02, UL Recognised Approval ID: E118976-20240617, CHINA RoHS, IEC 60512-1-1:2002-02, DIN EN 61984, IEC 60512-13-5:2006-02, IEC 60512-9-1:2010-03, IEC 60512-15-1:2008-05, IEC 60068-2-70:1995-12, IEC 60664-1:2020-05, EU REACH, IEC 60068-2-6:2007-12, ISO 6988:1985-02, IEC 60512-5-1:2002-02, EU RoHS, IEC 60068-2-27:2008-02 | ||
Series DD21H | ||
Length 30.69mm | ||
Width 12.7mm | ||
Depth 14.7mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Connector offers a highly efficient solution for crimped connections in various applications, prioritising both compactness and reliability. Designed to accommodate 8 positions with a 2.5 mm pitch, this connector excels in situations constrained by space. The intuitive snap-in locking mechanism ensures secure connections while preventing accidental disconnections, making it ideal for high-density wiring setups. It operates effectively at a nominal current of 5 A and a rated voltage of 160 V, further establishing its versatility across different electrical environments. This connector not only meets stringent industrial standards but also simplifies assembly processes, enabling rapid integration into your designs.
Cost effective for large scale crimped conductor connections
Compact design optimises space usage in electronic assemblies
Easy to use snap in locking mechanism enhances operational security
Available tools facilitate efficient automatic crimping
Robust construction ensures longevity and reliable performance under demanding conditions
Mounting flange ensures secure engagement during installation
