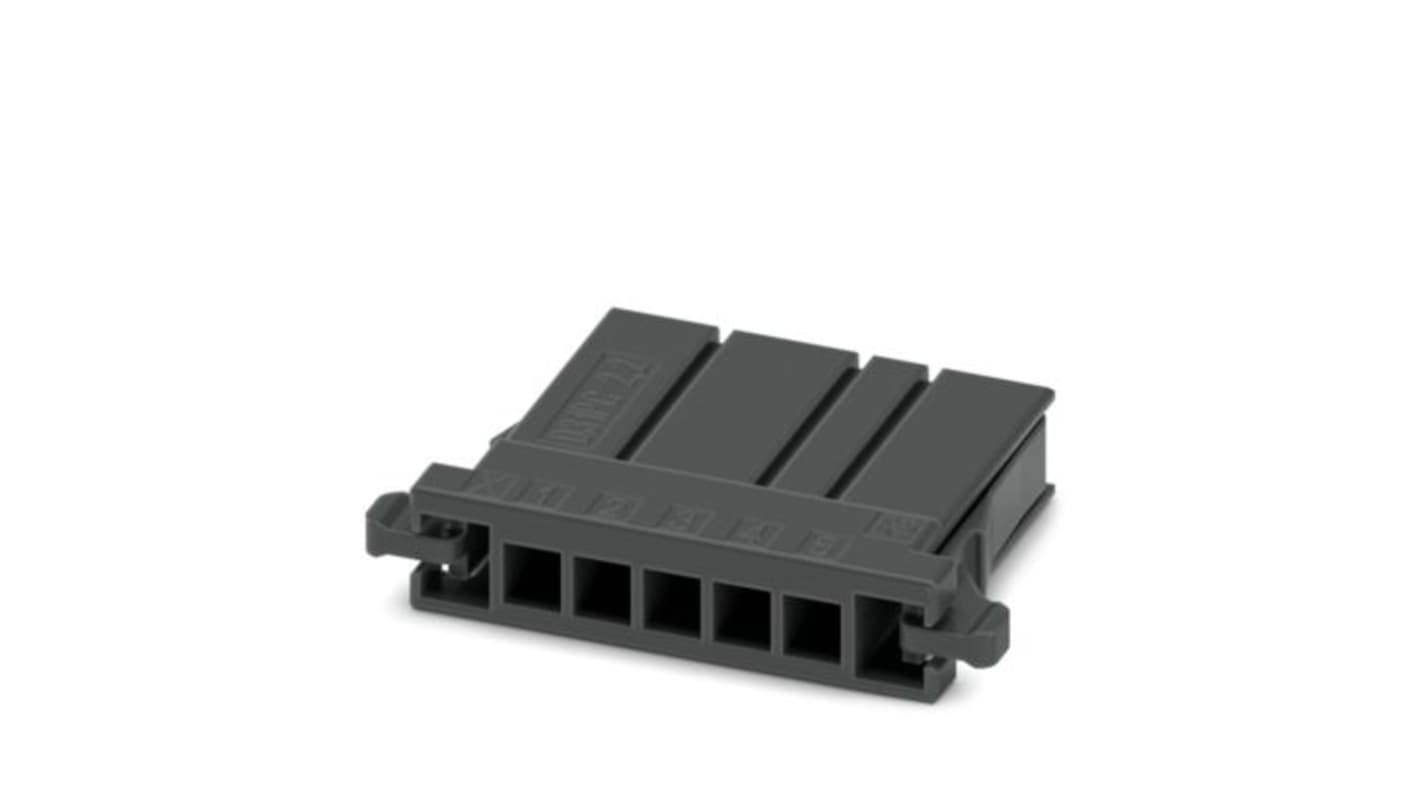

Phoenix Contact D31PC Series PCB Connector, 5-Contact, 3.81 mm Pitch, 1 Row Crimp
- RS Stock No.:
- 492-857
- Mfr. Part No.:
- 1339691
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£25.76
(exc. VAT)
£30.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £25.76 | £0.515 |
*price indicative
- RS Stock No.:
- 492-857
- Mfr. Part No.:
- 1339691
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 5 | |
| Product Type | PCB Connector | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Number of Rows | 1 | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Female | |
| Termination Type | Crimp | |
| Colour | Black | |
| Voltage | 160V | |
| Length | 22.8mm | |
| Width | 34.38mm | |
| Series | D31PC | |
| Depth | 7.15mm | |
| Standards/Approvals | IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-13-5:2006-02, UL Recognised Approval ID: E118976-20240617, IEC 60512-9-1:2010-03, IEC 60512-13-2:2006-02, DIN EN 61984, ISO 6988:1985-02, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Product Type PCB Connector | ||
Pitch 3.81mm | ||
Current 8A | ||
Number of Rows 1 | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Female | ||
Termination Type Crimp | ||
Colour Black | ||
Voltage 160V | ||
Length 22.8mm | ||
Width 34.38mm | ||
Series D31PC | ||
Depth 7.15mm | ||
Standards/Approvals IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-13-5:2006-02, UL Recognised Approval ID: E118976-20240617, IEC 60512-9-1:2010-03, IEC 60512-13-2:2006-02, DIN EN 61984, ISO 6988:1985-02, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02 | ||
The Phoenix Contact PCB connector is a cutting-edge solution designed for space-constrained applications. With a compact footprint, this connector offers an effective and reliable connection for crimped conductors, ensuring excellent electrical performance. Engineered with user-friendly features, it integrates a snap-in locking mechanism, providing a secure yet intuitive disconnection process, thereby minimising the risk of accidental disconnections. The product is constructed from high-quality materials, ensuring longevity and resistance to harsh environmental conditions. Thanks to its crimp connection method, it guarantees seamless integration with various electronic devices, making it an ideal choice for industrial applications requiring a robust and dependable connector.
Compact design ideal for tight spaces
Snap-in locking mechanism for secure connections
Optimised for high conductivity with minimal contact resistance
Provides excellent thermal and environmental resilience
Designed to meet rigorous safety and performance standards
Sustainably manufactured to fulfil EU compliance regulations
