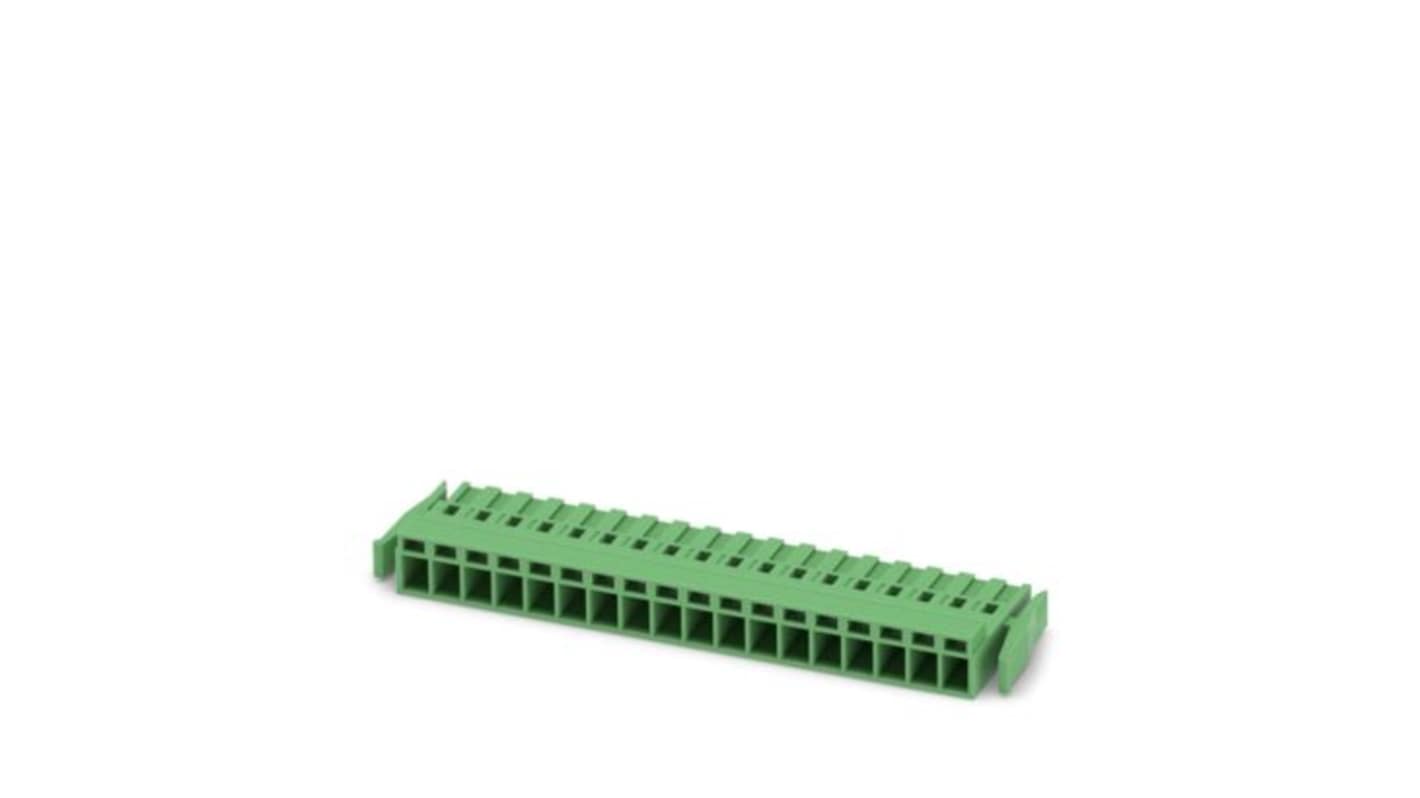

Phoenix Contact MSTBC Series PCB Connector, 18-Contact, 5.08 mm Pitch, 1 Row Crimp
- RS Stock No.:
- 492-728
- Mfr. Part No.:
- 1809200
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 492-728
- Mfr. Part No.:
- 1809200
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 18 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Termination Type | Crimp | |
| Colour | Green | |
| Contact Gender | Female | |
| Voltage | 320V | |
| Width | 101.87mm | |
| Series | MSTBC | |
| Depth | 10.5mm | |
| Length | 25mm | |
| Standards/Approvals | EN 60695-2-13, CHINA RoHS, IEC 60664-1:2007-04, EU REACH, EU RoHS, cULus Recognised Approval ID: E60425-19930525, EN 60695-2-12, UL 94 V0, IEC 61984, VDE Approval ID: 40050648 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 18 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Termination Type Crimp | ||
Colour Green | ||
Contact Gender Female | ||
Voltage 320V | ||
Width 101.87mm | ||
Series MSTBC | ||
Depth 10.5mm | ||
Length 25mm | ||
Standards/Approvals EN 60695-2-13, CHINA RoHS, IEC 60664-1:2007-04, EU REACH, EU RoHS, cULus Recognised Approval ID: E60425-19930525, EN 60695-2-12, UL 94 V0, IEC 61984, VDE Approval ID: 40050648 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB connector is a robust solution designed for efficient connections in demanding environments. With its innovative crimp connection method, this connector ensures reliability and flexibility in a variety of applications. Featuring a compact design with a pitch of 5.08 mm, it accommodates up to 18 potential connections, making it ideal for complex circuit designs. The green housing not only provides a distinctive look but also offers excellent insulation properties, ideal for high-performance applications. Furthermore, its snap-in locking mechanism enhances safety, preventing accidental disconnections during operation. The MSTBC series reflects a commitment to quality and functionality, fulfilling diverse connectivity needs across multiple sectors.
Compact design optimises space within electrical assemblies
Intuitive locking mechanism reinforces connection security
Versatile crimp technology supports a wide range of conductor cross sections
Operating temperature range ensures reliability in extreme conditions
Customisable packaging options allow tailored solutions for different requirements
Lightweight structure aids in minimising overall assembly weight
VDE and cULus certifications guarantee adherence to high safety standards
