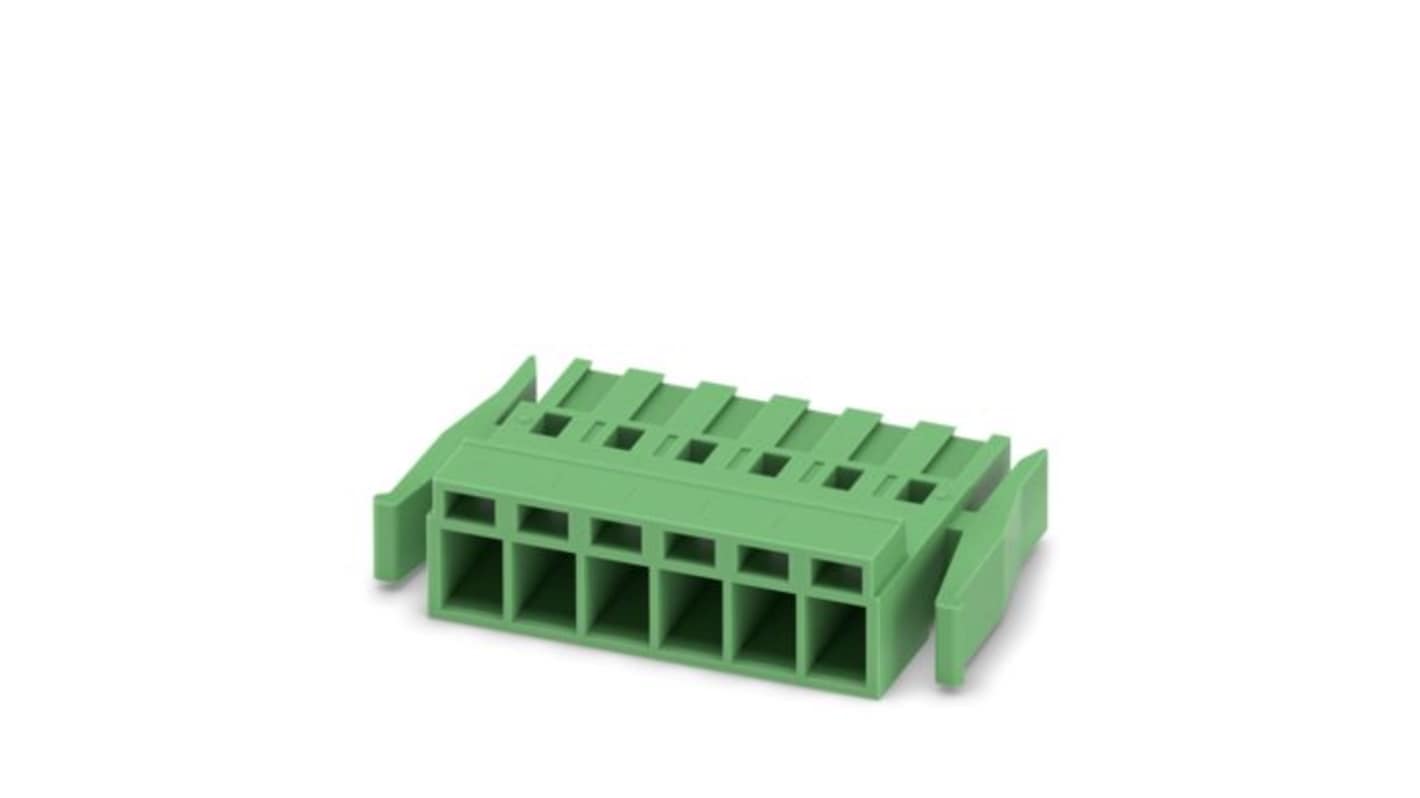

Phoenix Contact MSTBC Series PCB Connector, 6-Contact, 5.08 mm Pitch, 1 Row Crimp
- RS Stock No.:
- 497-087
- Mfr. Part No.:
- 1809080
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£78.79
(exc. VAT)
£94.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £78.79 | £1.576 |
*price indicative
- RS Stock No.:
- 497-087
- Mfr. Part No.:
- 1809080
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 6 | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Colour | Green | |
| Termination Type | Crimp | |
| Voltage | 320V | |
| Contact Gender | Female | |
| Standards/Approvals | IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | |
| Series | MSTBC | |
| Depth | 10.5mm | |
| Width | 40.91mm | |
| Length | 25mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 6 | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Colour Green | ||
Termination Type Crimp | ||
Voltage 320V | ||
Contact Gender Female | ||
Standards/Approvals IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60664-1:2007-04, UL 94 V0, EN 60695-2-12, EN 60695-2-13, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694 | ||
Series MSTBC | ||
Depth 10.5mm | ||
Width 40.91mm | ||
Length 25mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact advanced PCB connector engineered for reliability and efficiency. Designed within the popular COMBICON family, it excels in providing a secure and robust connection for various applications. With its ability to handle a nominal current of 12 A and a rated voltage of 320 V, this connector is suitable for demanding environments. The innovative crimp connection ensures a solid contact, promoting long-lasting performance. Furthermore, its intuitive snap-in locking mechanism guarantees a straightforward assembly and disassembly process, making it ideal for frequent use. The connector's compact design, combined with a clean and stylish green housing, adds a touch of elegance to any circuit board while maintaining functionality. Whether for industrial or commercial applications, this PCB connector stands out for its reliability and ease of use.
Designed for quick and easy installation with snap-in locking
Robust construction for enhanced durability in varied environments
Green PA insulating material offers both aesthetic appeal and functionality
Latching flange mount option ensures secure positioning on the PCB
Supports a wide range of conductor sizes for versatile connectivity
Facilitates cost-effective connections for large assemblies
Intuitive operation reduces risk of accidental disconnection
Optimised for high-performance applications with superior electrical properties
