Phoenix Contact PCB Terminal Block, 4-Contact, 3.5 mm Pitch, Push-in, 1 Row Screw
- RS Stock No.:
- 488-044
- Mfr. Part No.:
- 1984484
- Brand:
- Phoenix Contact

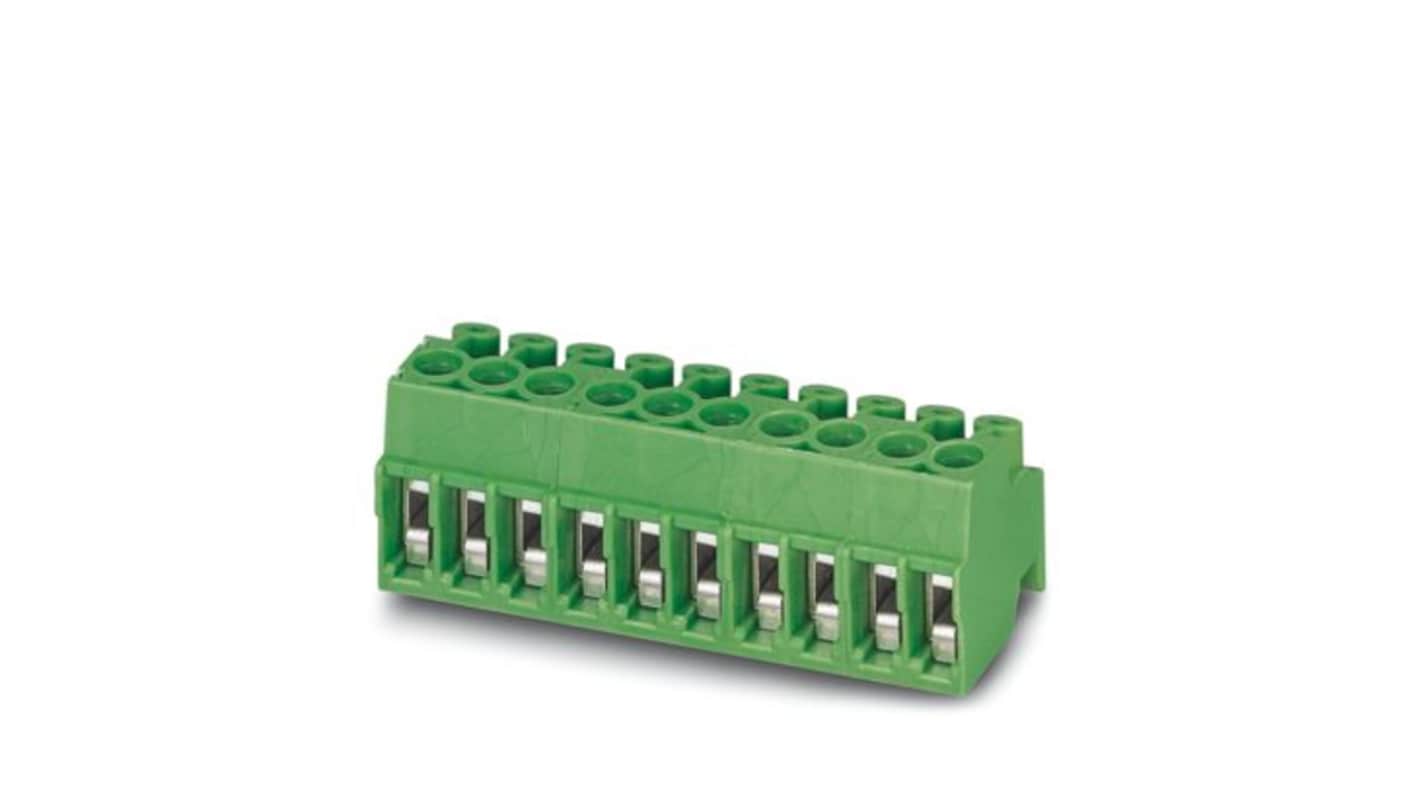

Image representative of range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 488-044
- Mfr. Part No.:
- 1984484
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 4 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Housing Material | Polyamide | |
| Mount Type | Push-in | |
| Connector Gender | Male | |
| Termination Type | Screw | |
| Colour | Green | |
| Voltage | 200V | |
| Width | 14mm | |
| Standards/Approvals | ROHS,IEC 60999-1:1999-11 | |
| Length | 11mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 4 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 6A | ||
Housing Material Polyamide | ||
Mount Type Push-in | ||
Connector Gender Male | ||
Termination Type Screw | ||
Colour Green | ||
Voltage 200V | ||
Width 14mm | ||
Standards/Approvals ROHS,IEC 60999-1:1999-11 | ||
Length 11mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB connector has a nominal cross section of 1.5 mm², is green in colour, and supports a nominal current of 6 A with a rated voltage of 200 V (III/2). It features a tin (Sn) contact surface, socket connection type, 4 potentials, 1 row, 4 positions, and 4 connections.
High Terminal Block capacity thanks to rectangular Terminal Block space
Allows connection of two conductors
The latching on the side enables various numbers of positions to be combined
