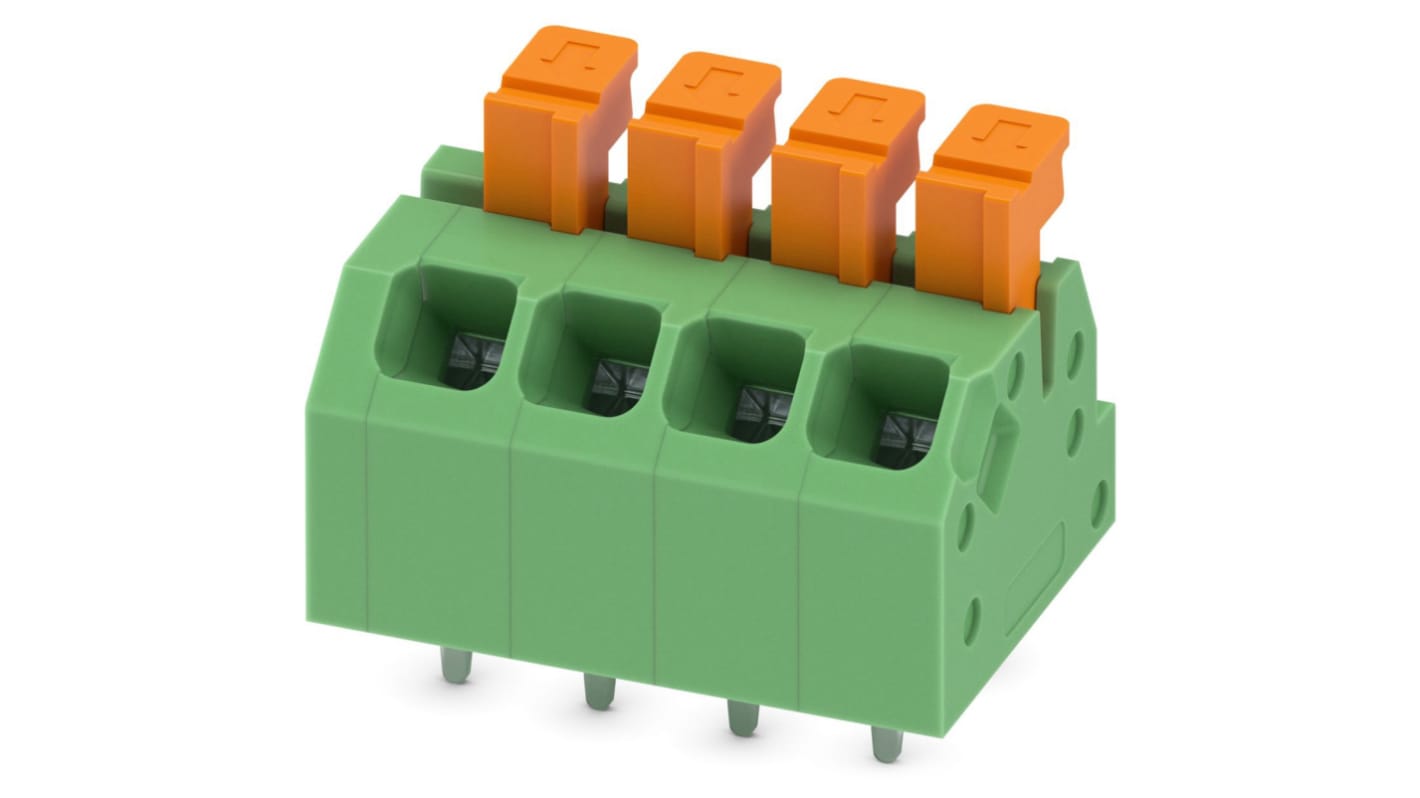

Phoenix Contact SPTAF 1/ 4-3.5-LL Series PCB Terminal Block, 4-Contact, 3.5 mm Pitch, 2 Row
- RS Stock No.:
- 151-1363
- Mfr. Part No.:
- 1864309
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 box of 100 units)*
£115.60
(exc. VAT)
£138.70
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 100 - 100 | £1.156 | £115.60 |
| 200 - 200 | £1.099 | £109.90 |
| 300 - 300 | £1.071 | £107.10 |
| 400 - 400 | £1.018 | £101.80 |
| 500 + | £0.985 | £98.50 |
*price indicative
- RS Stock No.:
- 151-1363
- Mfr. Part No.:
- 1864309
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | PCB Terminal Block | |
| Pitch | 3.5mm | |
| Current | 13.5A | |
| Number of Rows | 2 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 17AWG | |
| Orientation | Angled | |
| Wire Connection Method | Spring | |
| Colour | Green | |
| Voltage | 160V | |
| Depth | 13.5mm | |
| Standards/Approvals | cULus Recognised, EU RoHS, UL Recognised | |
| Length | 15.5mm | |
| Series | SPTAF 1/ 4-3.5-LL | |
| Width | 11mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type PCB Terminal Block | ||
Pitch 3.5mm | ||
Current 13.5A | ||
Number of Rows 2 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 17AWG | ||
Orientation Angled | ||
Wire Connection Method Spring | ||
Colour Green | ||
Voltage 160V | ||
Depth 13.5mm | ||
Standards/Approvals cULus Recognised, EU RoHS, UL Recognised | ||
Length 15.5mm | ||
Series SPTAF 1/ 4-3.5-LL | ||
Width 11mm | ||
PCB Terminal block, nominal current: 13.5 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Finger-operated and fixable release button for very convenient operation
Small component size for applications where space is at a premium
Quick and convenient testing using integrated test option
