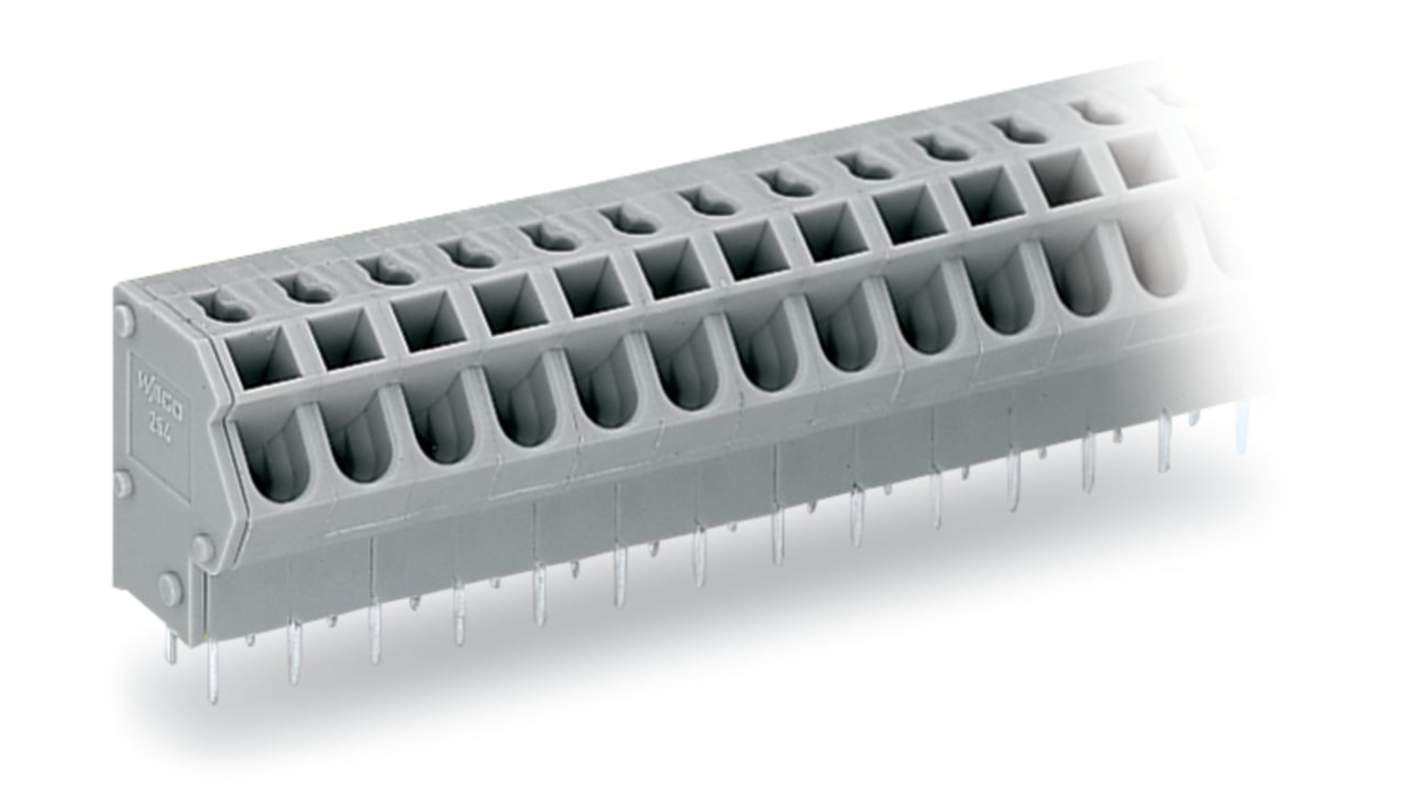

WAGO 254 Series PCB Connector, 16-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 225-478
- Mfr. Part No.:
- 254-466
- Brand:
- WAGO
Subtotal (1 box of 15 units)*
£53.33
(exc. VAT)
£64.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £53.33 | £3.555 |
*price indicative
- RS Stock No.:
- 225-478
- Mfr. Part No.:
- 254-466
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 16 | |
| Product Type | PCB Connector | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.5mm² | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 45° | |
| Colour | Grey | |
| Wire Connection Method | Push Wire | |
| Voltage | 32V | |
| Depth | 13.5mm | |
| Width | 81.5mm | |
| Standards/Approvals | No | |
| Series | 254 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 16 | ||
Product Type PCB Connector | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.5mm² | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 45° | ||
Colour Grey | ||
Wire Connection Method Push Wire | ||
Voltage 32V | ||
Depth 13.5mm | ||
Width 81.5mm | ||
Standards/Approvals No | ||
Series 254 | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block redefines connection efficiency and reliability with its innovative PUSH WIRE technology. Designed for both solid and ferruled fine-stranded conductors, it optimises space on any printed circuit board, boasting a slim 8.9 mm depth. With 16-pole connectivity, it offers enhanced functionality and versatility, making it an ideal choice for intricate electrical systems.
Built with high quality polyamide for durability and heat resistance
Designed to meet standards for marine applications ensuring reliability in harsh environments
Configured for both solid and fine stranded conductors with ferrules for easy handling
Rated for high surge voltage providing robust protection for electronic circuits
