WAGO 2706 Series PCB Connector, 6-Contact, 10 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 225-272
- Mfr. Part No.:
- 2706-206
- Brand:
- WAGO
Subtotal (1 box of 20 units)*
£156.55
(exc. VAT)
£187.86
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £156.55 | £7.828 |
*price indicative
- RS Stock No.:
- 225-272
- Mfr. Part No.:
- 2706-206
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 6 | |
| Pitch | 10mm | |
| Current | 41A | |
| Number of Rows | 1 | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 80V | |
| Standards/Approvals | No | |
| Series | 2706 | |
| Depth | 26mm | |
| Width | 55mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 6 | ||
Pitch 10mm | ||
Current 41A | ||
Number of Rows 1 | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 10AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 80V | ||
Standards/Approvals No | ||
Series 2706 | ||
Depth 26mm | ||
Width 55mm | ||
- COO (Country of Origin):
- PL

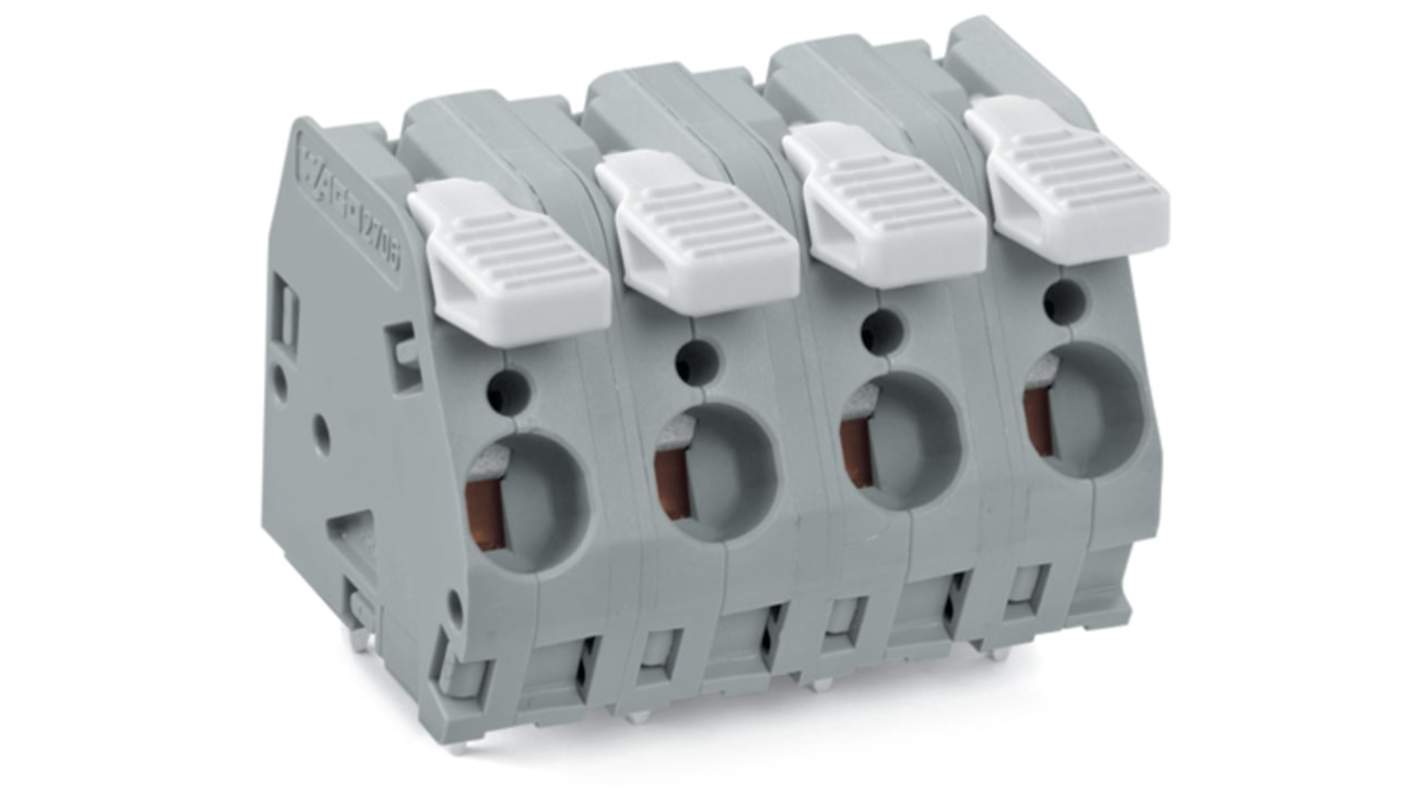

The Wago PCB terminal block revolutionises connection technology with its lever-actuated CAGE CLAMP design. Engineered for efficiency and ease of use, this terminal block accommodates a range of conductor sizes from 0.5 to 6 mm², making it ideal for various applications. The robust construction ensures exceptional mechanical stability and reliability, making it suitable for demanding environments.
Overvoltage category III provides added safety for demanding electrical setups
Each clamping unit holds conductors securely minimising the risk of disconnection
RoHS compliant aligning with modern environmental standards
