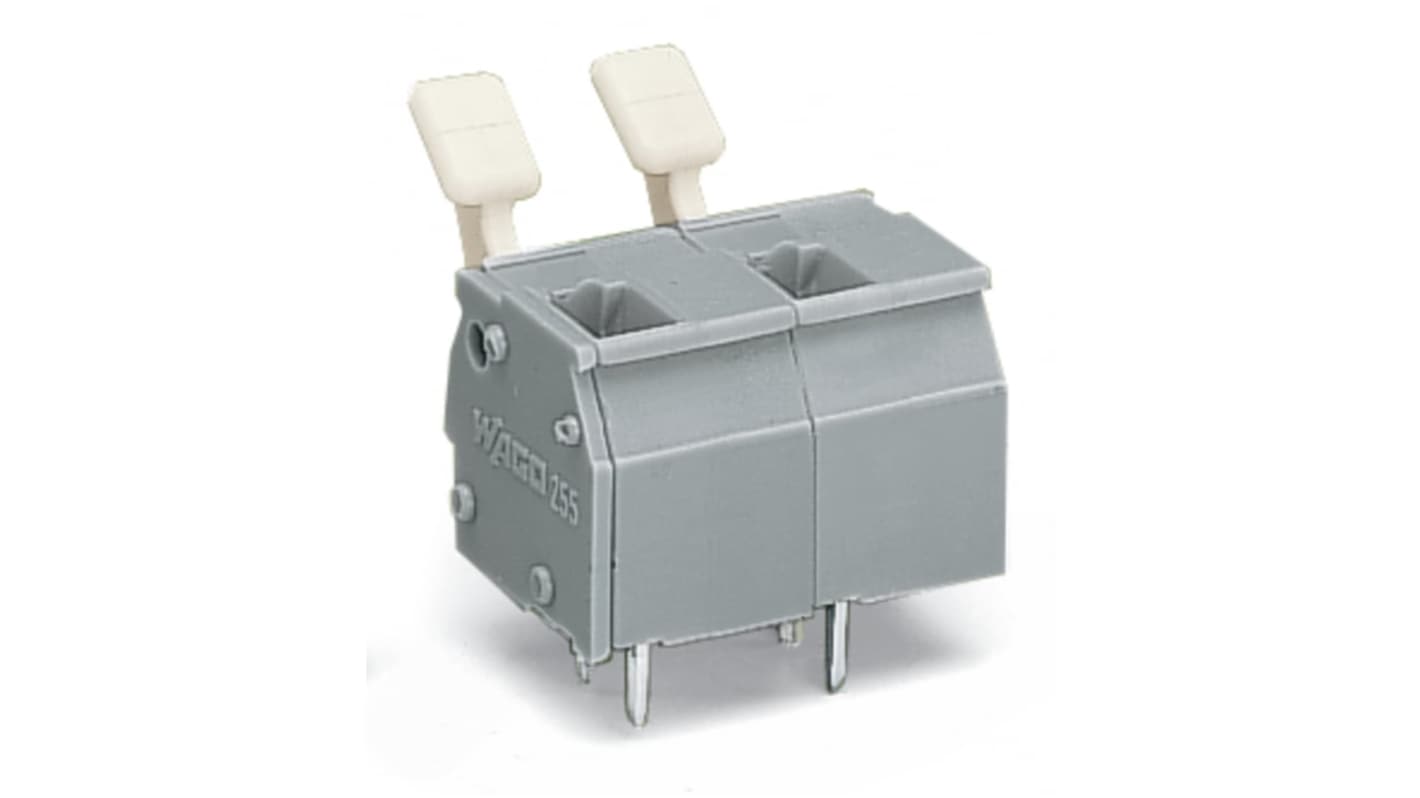

WAGO 255 Series PCB Connector, 2-Contact, 10.16 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 225-187
- Mfr. Part No.:
- 255-602/333-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£36.87
(exc. VAT)
£44.24
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £36.87 | £0.737 |
*price indicative
- RS Stock No.:
- 225-187
- Mfr. Part No.:
- 255-602/333-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 2 | |
| Pitch | 10.16mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 25AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 63V | |
| Depth | 23mm | |
| Standards/Approvals | CSA, IEC/EN 60664-1, UL 1059 | |
| Series | 255 | |
| Width | 22.9mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 2 | ||
Pitch 10.16mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 25AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 63V | ||
Depth 23mm | ||
Standards/Approvals CSA, IEC/EN 60664-1, UL 1059 | ||
Series 255 | ||
Width 22.9mm | ||
- COO (Country of Origin):
- CH
The Wago PCB terminal block exemplifies innovative engineering designed for efficiency and ease of use in modern electrical applications. Featuring an intelligently crafted push-button actuation mechanism, this product allows for tool-free operations, optimising usability in field wiring. Its robust two-pole configuration with CAGE CLAMP connection technology ensures secure and reliable connections for a diverse range of conductor types and sizes, matching varying operational demands.
Compatible with demanding environmental standards and certifications
Manufactured from premium materials for long lasting durability
Offers adaptability for various industry applications
Meets strict safety and compliance regulations for added assurance
