WAGO 742 Series PCB Connector, 1-Contact, 5 mm Pitch, Through Hole, 3 Row
- RS Stock No.:
- 222-647
- Mfr. Part No.:
- 742-171
- Brand:
- WAGO
Subtotal (1 box of 200 units)*
£290.88
(exc. VAT)
£349.06
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £290.88 | £1.454 |
*price indicative
- RS Stock No.:
- 222-647
- Mfr. Part No.:
- 742-171
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Connector | |
| Pitch | 5mm | |
| Current | 16A | |
| Number of Rows | 3 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 32V | |
| Series | 742 | |
| Width | 7mm | |
| Standards/Approvals | No | |
| Depth | 43.5mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Connector | ||
Pitch 5mm | ||
Current 16A | ||
Number of Rows 3 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 32V | ||
Series 742 | ||
Width 7mm | ||
Standards/Approvals No | ||
Depth 43.5mm | ||
- COO (Country of Origin):
- CH

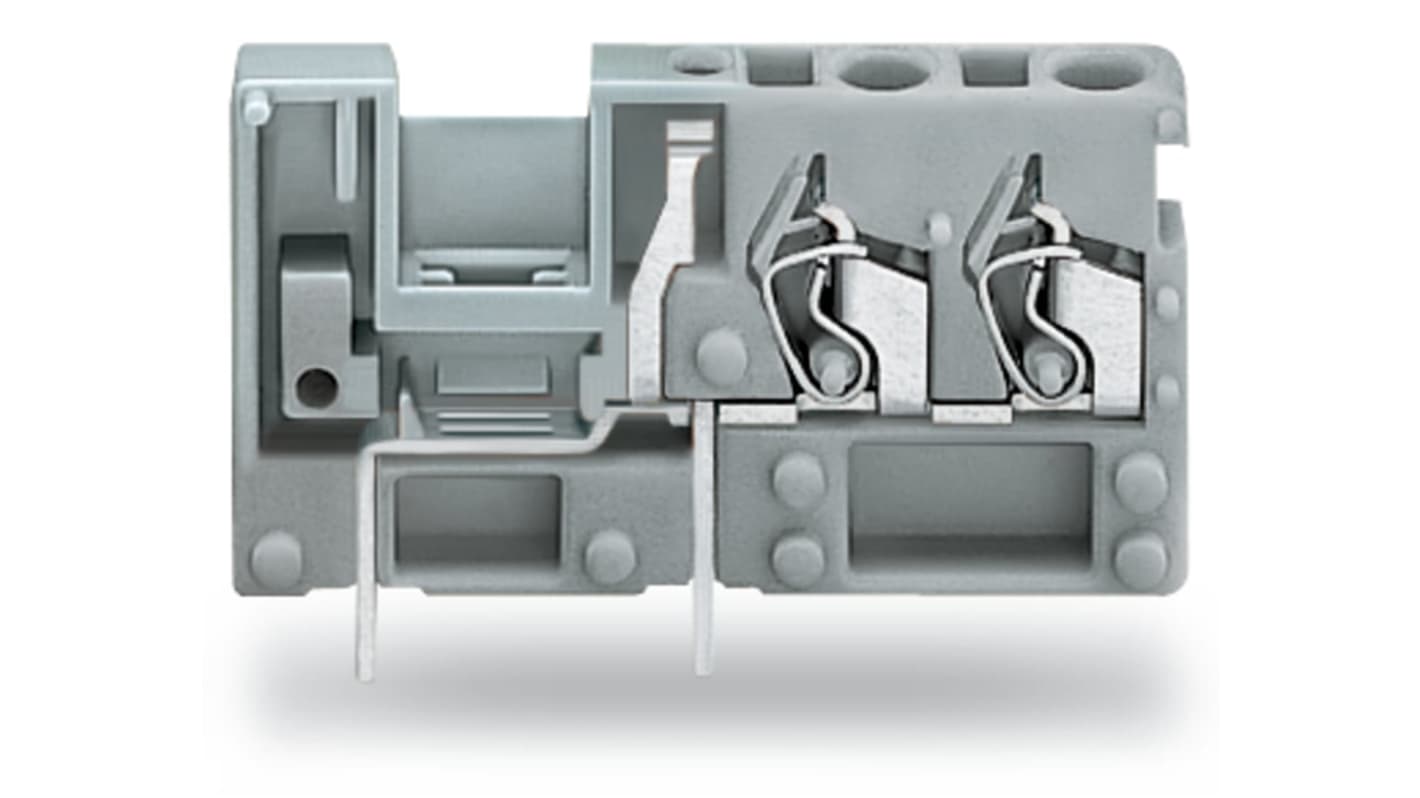

The Wago Stackable 2 Conductor PCB Terminal Block is designed for versatility in electrical connections, optimised for modern circuit board applications. Featuring a compact 5 mm pin spacing, it incorporates a CAGE CLAMP connection system that ensures secure and reliable wiring without the need for additional tools. With its modular design, this product not only simplifies installation but also enhances functionality by allowing for easy integration of jumpers to distribute potentials efficiently.
High temperature resistance makes it suitable for demanding environments
Supports fine stranded conductors enhancing wiring flexibility
Compatible with multiple accessories for customised setups
Compliant with RoHS standards promoting environmentally friendly practices
