WAGO 742 Series PCB Connector, 1-Contact, 5 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 222-445
- Mfr. Part No.:
- 742-174
- Brand:
- WAGO
Subtotal (1 box of 200 units)*
£305.02
(exc. VAT)
£366.02
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £305.02 | £1.525 |
*price indicative
- RS Stock No.:
- 222-445
- Mfr. Part No.:
- 742-174
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 90° | |
| Colour | Blue | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 32V | |
| Series | 742 | |
| Depth | 43.5mm | |
| Width | 7mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 16A | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 90° | ||
Colour Blue | ||
Wire Connection Method Cage Clamp | ||
Voltage 32V | ||
Series 742 | ||
Depth 43.5mm | ||
Width 7mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CH

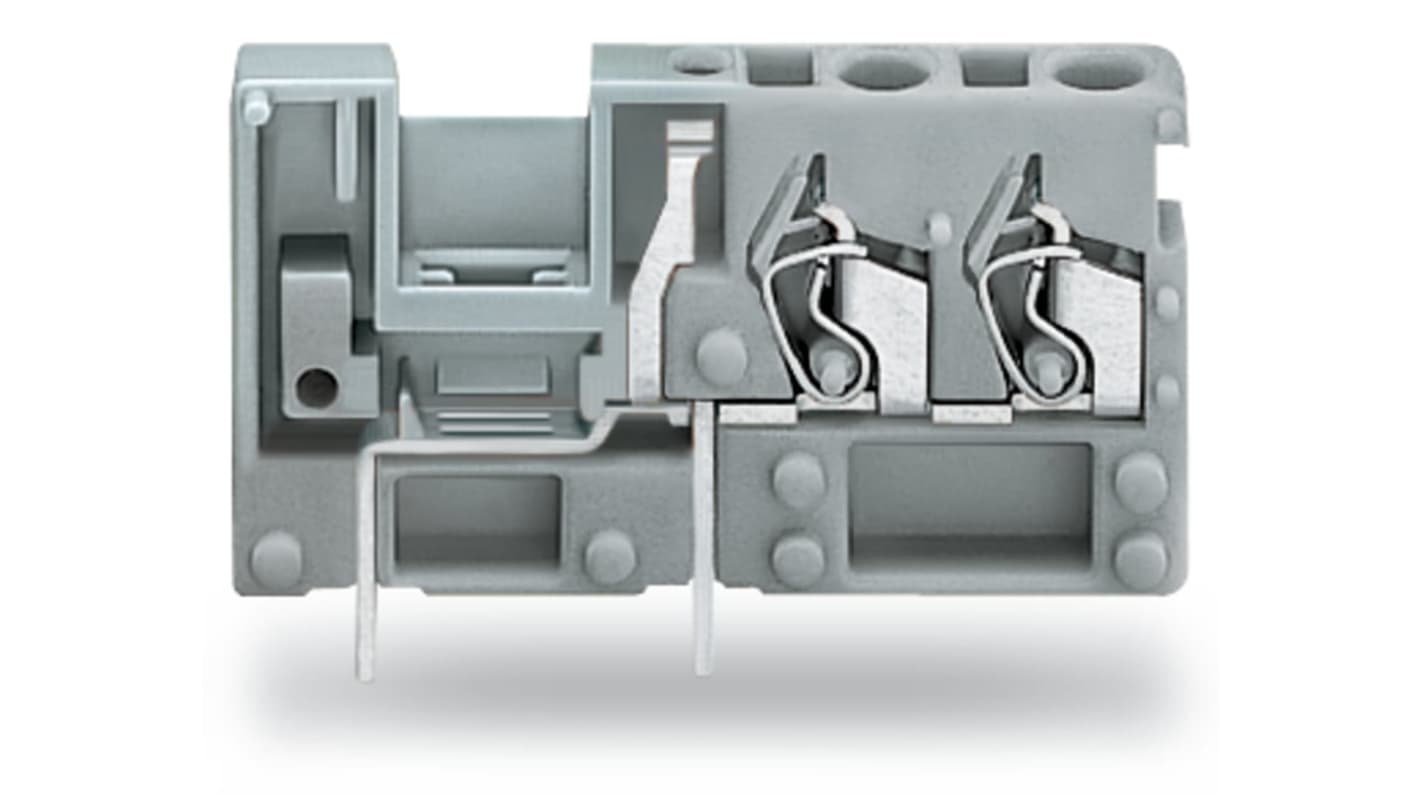

The Wago Stackable 2 Conductor PCB Terminal Block designed for seamless integration into electronic circuits. With its innovative CAGE CLAMP connection technology, this component ensures secure and reliable connections, making it an ideal choice for both regular and complex assembly tasks. Its compact design, featuring a pin spacing of 5 mm, allows for efficient use of space on printed circuit boards.
Test socket integrated for convenient testing without disassembly
Robust construction ensures long lasting performance in demanding environments
Available in a striking blue colour to enhance visual identification
Modular design allows compatibility with adjacent jumpers for potential distribution
Easy to install with standard operating tools simplifying assembly
