WAGO 742 Series PCB Connector, 1-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 222-630
- Mfr. Part No.:
- 742-126
- Brand:
- WAGO
Subtotal (1 box of 300 units)*
£245.43
(exc. VAT)
£294.52
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £245.43 | £0.818 |
*price indicative
- RS Stock No.:
- 222-630
- Mfr. Part No.:
- 742-126
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 5.08mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25V | |
| Width | 7.1mm | |
| Depth | 34.7mm | |
| Standards/Approvals | No | |
| Series | 742 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 5.08mm | ||
Current 16A | ||
Number of Rows 1 | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 25V | ||
Width 7.1mm | ||
Depth 34.7mm | ||
Standards/Approvals No | ||
Series 742 | ||
- COO (Country of Origin):
- CH

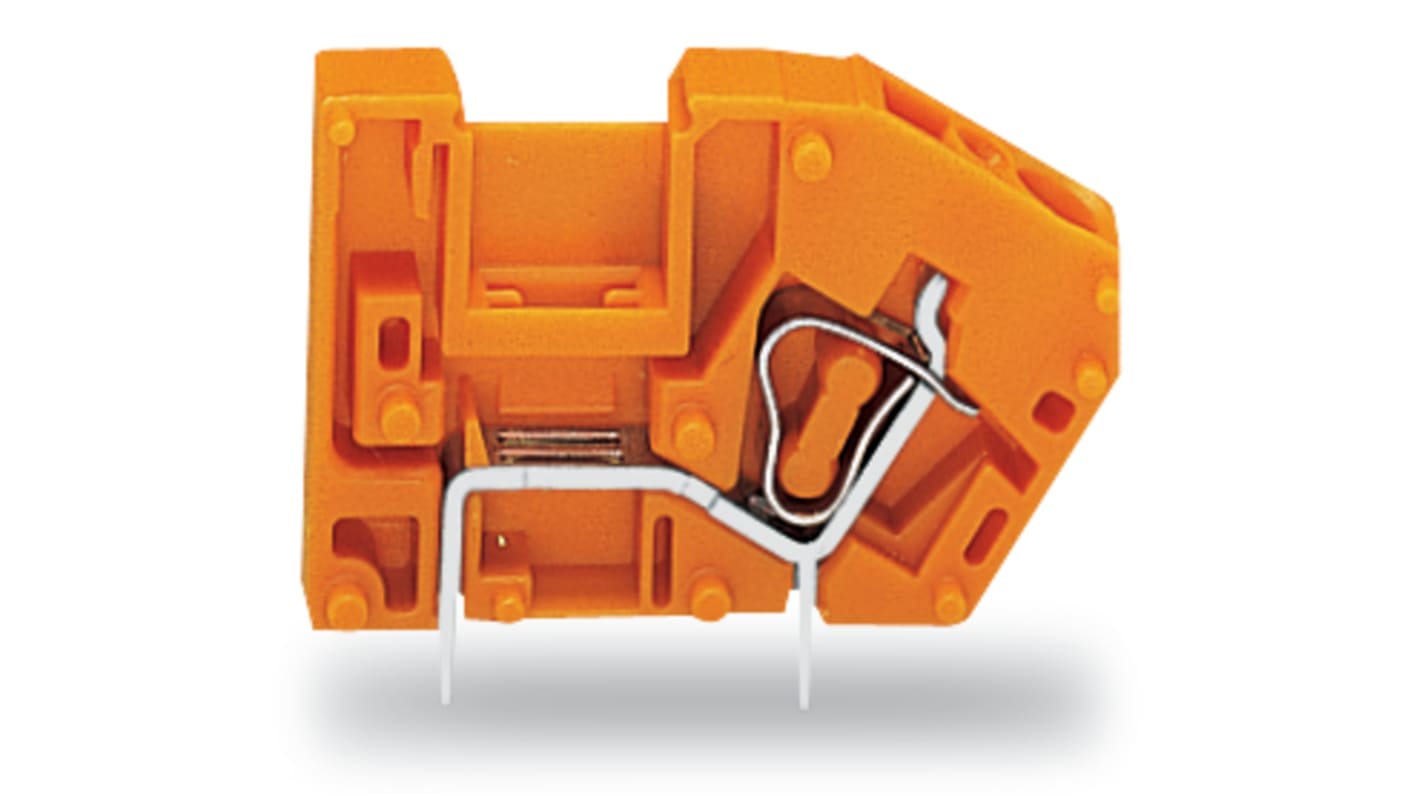

The Wago Stackable PCB Terminal Block revolutionises connectivity with its innovative CAGE CLAMP technology, ensuring a secure and reliable connection for various electrical applications. Designed with flexibility in mind, the product accommodates 2.5 mm² conductors and a pin spacing of 5.08 mm, making it ideal for compact installations. The terminal block features a striking orange housing, combining durability and visibility to enhance user experience. Its capacity for commoning through adjacent jumpers facilitates ease of use in complex setups.
Constructed from flame retardant materials for improved safety
Lightweight yet robust construction for simplified handling and installation
Environmental compliance ensures that it meets modern regulatory standards
Multiple approvals allow for usage across diverse industries and applications
Efficient thermal management through effective design structure
