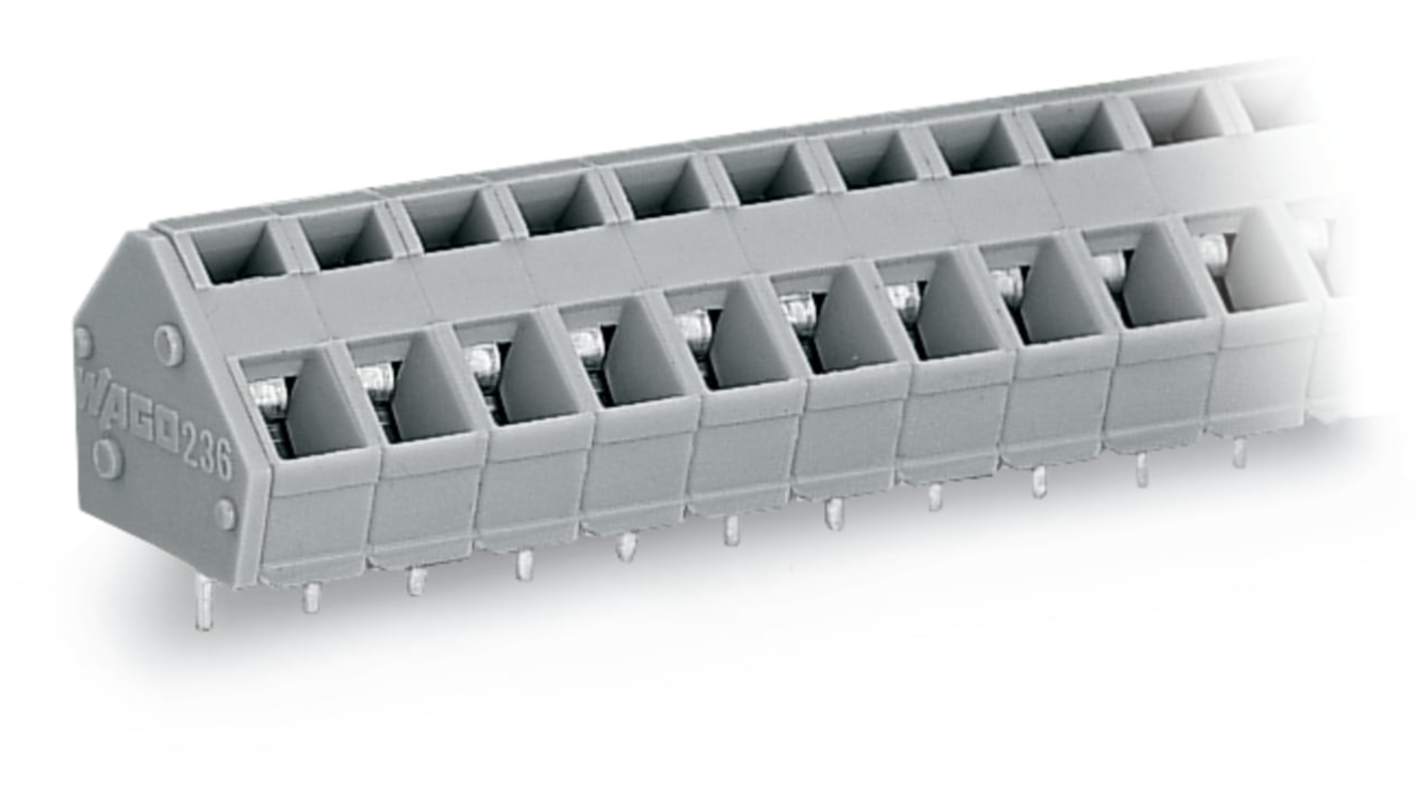

WAGO 236 Series PCB Terminal Block, 24-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-703
- Mfr. Part No.:
- 236-124
- Brand:
- WAGO
Subtotal (1 box of 10 units)*
£50.70
(exc. VAT)
£60.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £50.70 | £5.07 |
*price indicative
- RS Stock No.:
- 221-703
- Mfr. Part No.:
- 236-124
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 24 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25V | |
| Series | 236 | |
| Standards/Approvals | No | |
| Width | 122.3mm | |
| Depth | 14mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 24 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 25V | ||
Series 236 | ||
Standards/Approvals No | ||
Width 122.3mm | ||
Depth 14mm | ||
- COO (Country of Origin):
- CH
The Wago PCB terminal block is designed for versatility and reliability in a wide range of applications. Optimised for efficient PCB designs, it features a compact form factor with a pin spacing of 5/5.08 mm, making it suitable for high-density layouts. The innovative CAGE CLAMP connection technology ensures secure and efficient connections, while the operating tools allow for precise actuation, enhancing usability in various environments.
Manufactured from high quality polyamide for durability and resistance
Enhanced space saving design allows for effective PCB layouts
Meets environmental compliance supporting sustainable practices
