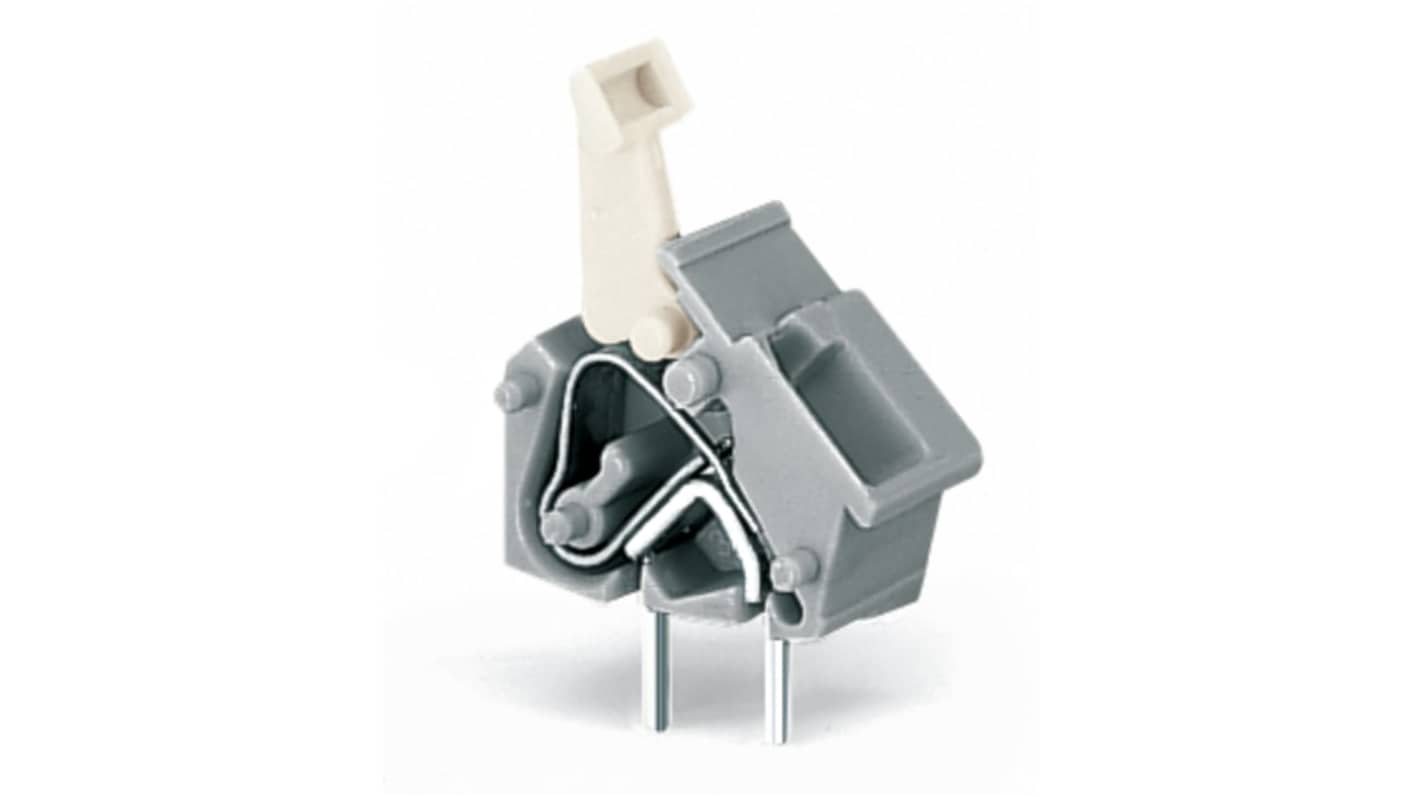

WAGO 256 Series PCB Connector, 1-Contact, 7.62 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 221-348
- Mfr. Part No.:
- 256-756
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£32.32
(exc. VAT)
£38.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £32.32 | £0.323 |
*price indicative
- RS Stock No.:
- 221-348
- Mfr. Part No.:
- 256-756
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 7.62mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 45° | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 32V | |
| Series | 256 | |
| Width | 10.3mm | |
| Standards/Approvals | No | |
| Depth | 17.6mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 7.62mm | ||
Current 24A | ||
Number of Rows 1 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 45° | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Voltage 32V | ||
Series 256 | ||
Width 10.3mm | ||
Standards/Approvals No | ||
Depth 17.6mm | ||
- COO (Country of Origin):
- CH
The Wago Stackable PCB Terminal Block redefines efficiency and reliability in electronic connections. Designed with the latest CAGE CLAMP technology, it provides a push button actuation system allowing for effortless wiring and maintenance. Its stackable design and versatile pin spacing make it suitable for various applications, ensuring flexibility and convenience in installation. Whether for field wiring or factory assembly, this terminal block stands out with its exceptional performance and safety standards, making it a favoured choice for professionals.
Available in vibrant orange for easy identification
Compatible with a wide range of conductor sizes for versatile applications
Supports both metric and inch pin spacing for maximum flexibility
Engineered to meet high safety ratings and environmental compliance
Lightweight build reduces strain on PCB during installation
