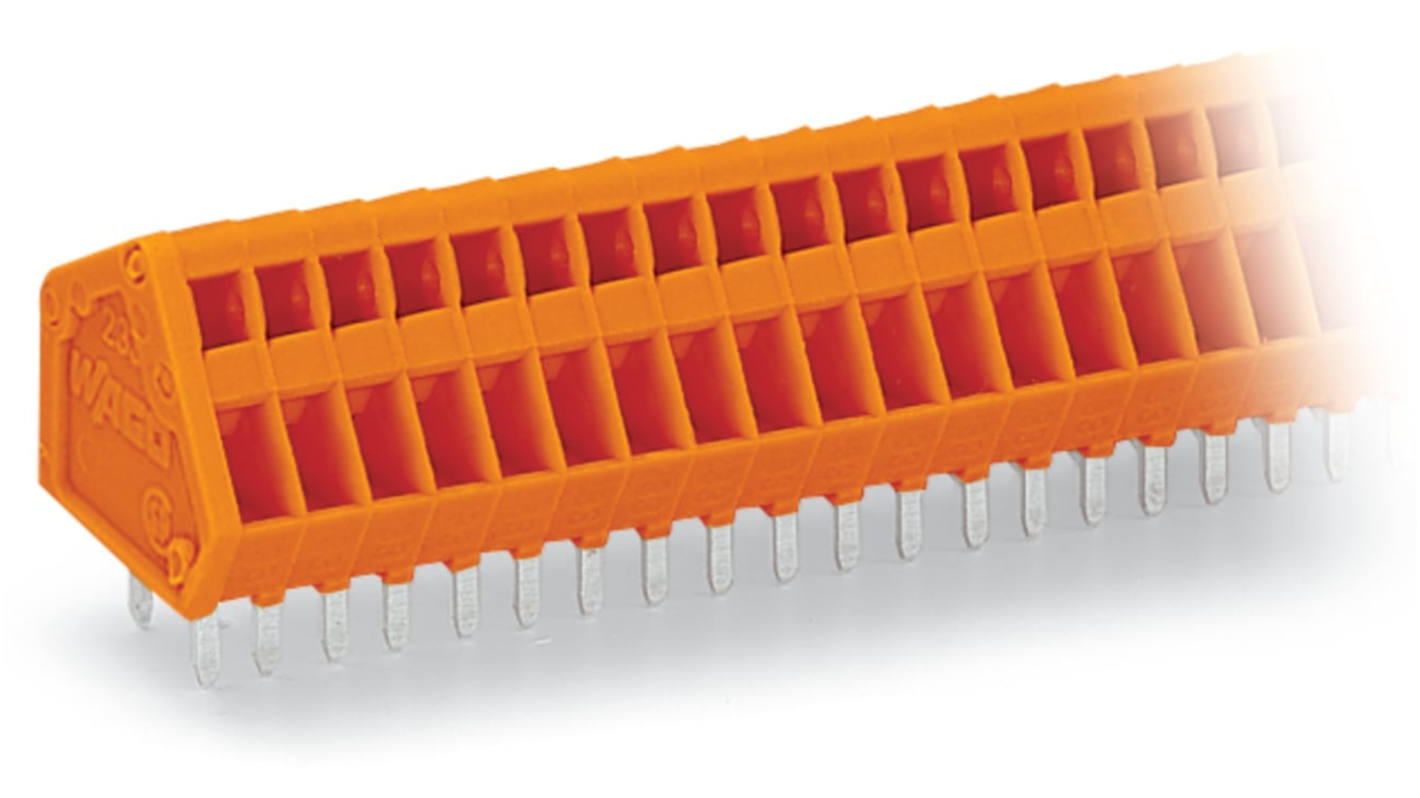

WAGO 233 Series PCB Terminal Block, 16-Contact, 2.54 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 220-924
- Mfr. Part No.:
- 233-416
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£132.56
(exc. VAT)
£159.07
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £132.56 | £5.302 |
*price indicative
- RS Stock No.:
- 220-924
- Mfr. Part No.:
- 233-416
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 16 | |
| Product Type | PCB Terminal Block | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 0.75mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Orientation | Perpendicular, Parallel | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Standards/Approvals | No | |
| Width | 42.94mm | |
| Series | 233 | |
| Depth | 12.1mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 16 | ||
Product Type PCB Terminal Block | ||
Pitch 2.54mm | ||
Current 6A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 0.75mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 18AWG | ||
Orientation Perpendicular, Parallel | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Standards/Approvals No | ||
Width 42.94mm | ||
Series 233 | ||
Depth 12.1mm | ||
- COO (Country of Origin):
- CH
The Wago PCB terminal block is a versatile and reliable solution designed for seamless connections in compact spaces. Featuring a robust CAGE CLAMP connection system, this product ensures secure and efficient operation for a variety of applications. Its innovative design incorporates double solder pins that provide exceptional mechanical stability, making it an ideal choice for complex circuit layouts.
Available in vibrant colours for easy identification in complex setups
Designed for straightforward installation with minimal tooling
Withstands extreme temperature ranges ensuring operational reliability
Customisable options available to meet unique project requirements
