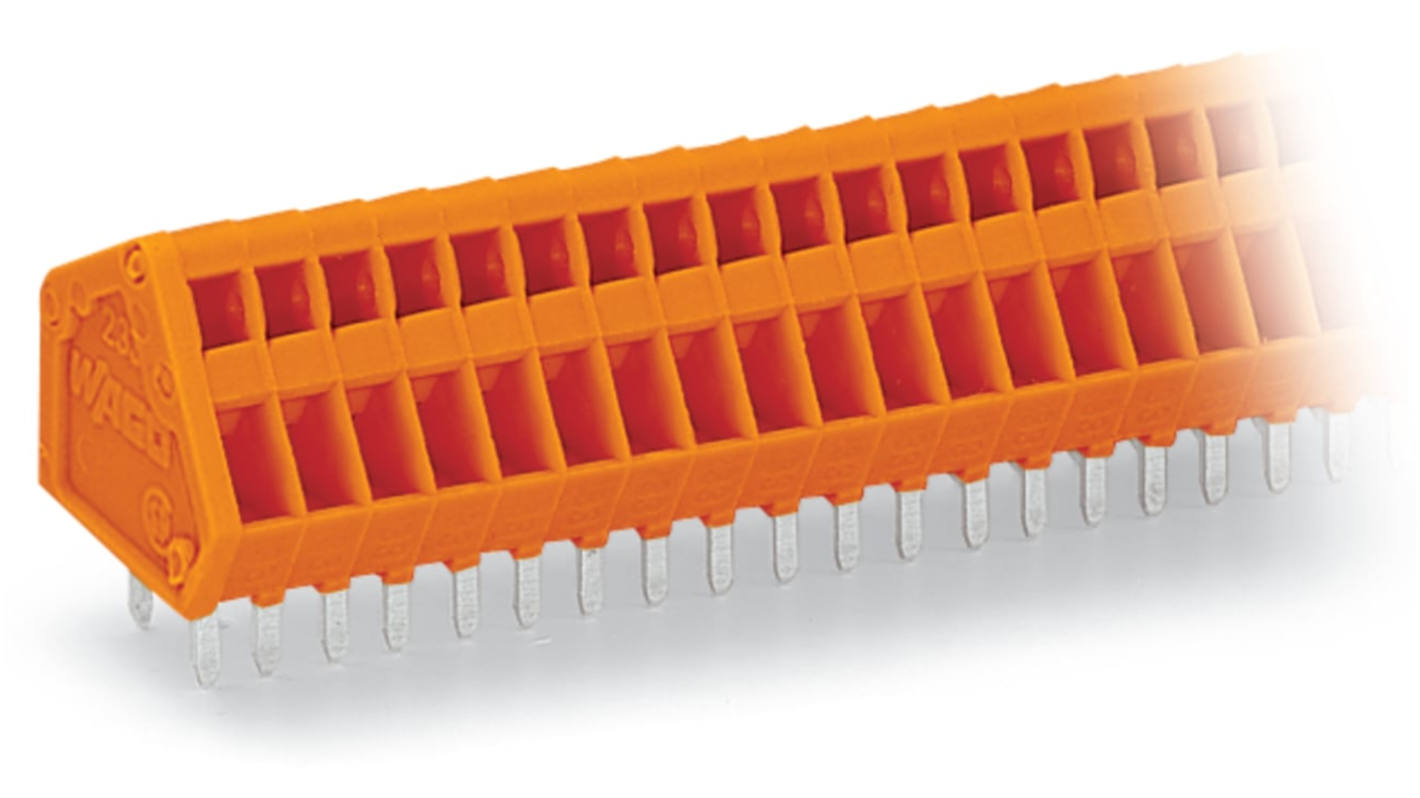

WAGO 233 Series PCB Terminal Block, 8-Contact, 2.54 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 220-499
- Mfr. Part No.:
- 233-408
- Brand:
- WAGO
Subtotal (1 box of 55 units)*
£148.87
(exc. VAT)
£178.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £148.87 | £2.707 |
*price indicative
- RS Stock No.:
- 220-499
- Mfr. Part No.:
- 233-408
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 8 | |
| Pitch | 2.54mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Minimum Wire Size mm² | 0.08mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Orientation | Perpendicular, Parallel | |
| Colour | Orange | |
| Wire Connection Method | Cage Clamp | |
| Width | 22.62 mm | |
| Depth | 12.1mm | |
| Series | 233 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 8 | ||
Pitch 2.54mm | ||
Current 6A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Minimum Wire Size mm² 0.08mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Orientation Perpendicular, Parallel | ||
Colour Orange | ||
Wire Connection Method Cage Clamp | ||
Width 22.62 mm | ||
Depth 12.1mm | ||
Series 233 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CH
The Wago PCB terminal block is designed for versatile and compact connectivity. Built with CAGE CLAMP technology, it accommodates various conductor sizes and ensures sturdy connections. The terminal block features a robust eight-pole configuration with double solder pins to enhance mechanical stability, making it ideal for demanding applications.
Meets various international safety and approval standards
Environmentally compliant aligning with modern sustainability practices
Wide conductor range supports various wire types for greater flexibility
Screwdriver actuation allows for parallel or perpendicular conductor entry
