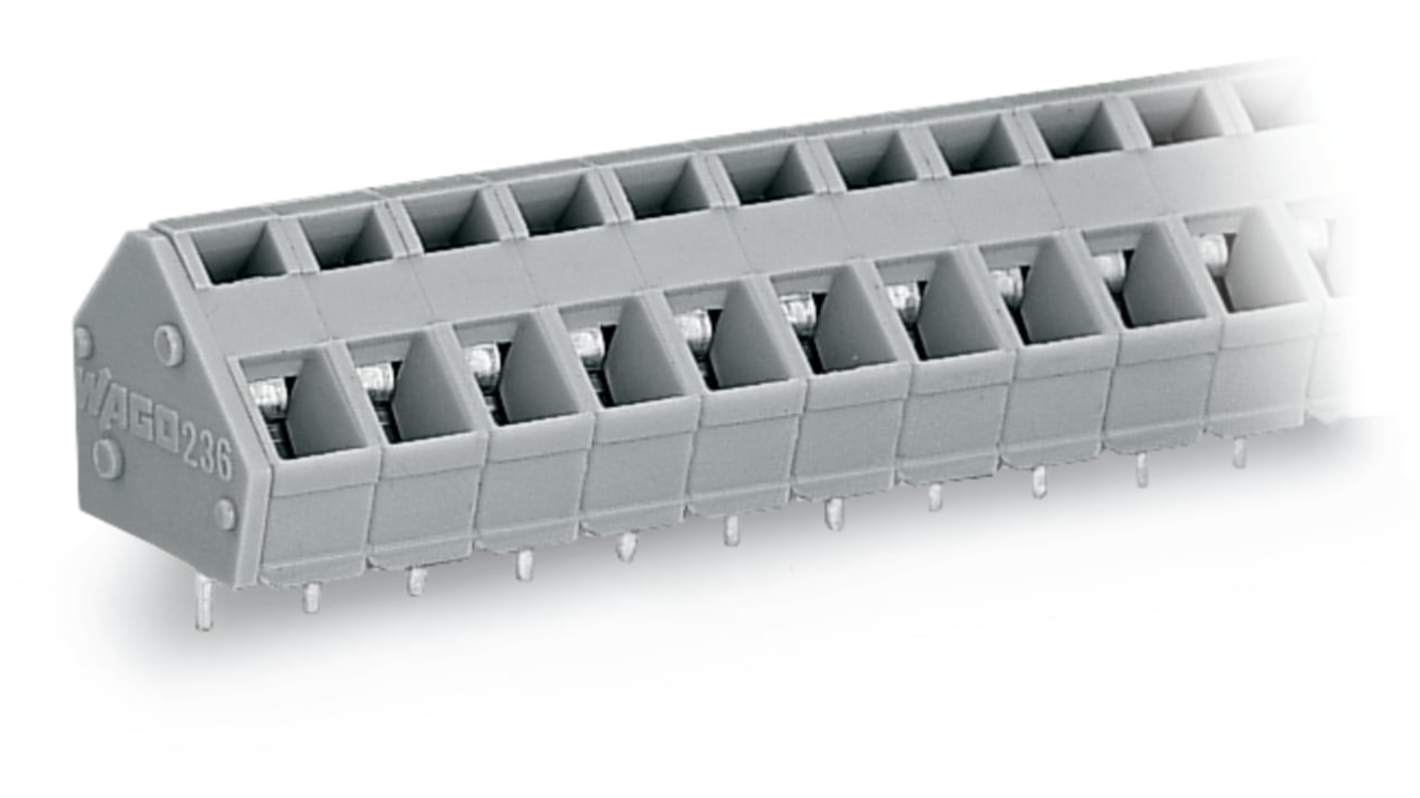

WAGO 236 Series PCB Terminal Block, 4-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 220-794
- Mfr. Part No.:
- 236-104
- Brand:
- WAGO
Subtotal (1 box of 55 units)*
£51.11
(exc. VAT)
£61.33
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £51.11 | £0.929 |
*price indicative
- RS Stock No.:
- 220-794
- Mfr. Part No.:
- 236-104
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 4 | |
| Product Type | PCB Terminal Block | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25V | |
| Depth | 14mm | |
| Width | 22.3mm | |
| Standards/Approvals | No | |
| Series | 236 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 4 | ||
Product Type PCB Terminal Block | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 25V | ||
Depth 14mm | ||
Width 22.3mm | ||
Standards/Approvals No | ||
Series 236 | ||
- COO (Country of Origin):
- CH
The Wago PCB terminal block is engineered to provide reliable and efficient connectivity for your electronic projects. With a robust CAGE CLAMP technology, it facilitates secure connections for a variety of conductor types, ensuring optimal performance across multiple applications. This compact solution is designed for 4 poles and offers exceptional wiring flexibility due to its versatile pin spacing options, making it suitable for both metric and inch-based applications.
Supports direct factory marking options for easy identification and labelling
Utilises advanced materials that comply with RoHS standards promoting eco friendly practices
Compatible with both insulated and uninsulated ferrules increasing versatility in applications
Exceeds industry standards for electrical performance providing peace of mind for critical connections
