WAGO 2616 Series PCB Connector, 3-Contact, 10 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 220-739
- Mfr. Part No.:
- 2616-1103/020-000
- Brand:
- WAGO
Subtotal (1 box of 36 units)*
£269.06
(exc. VAT)
£322.87
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £269.06 | £7.474 |
*price indicative
- RS Stock No.:
- 220-739
- Mfr. Part No.:
- 2616-1103/020-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Connector | |
| Pitch | 10mm | |
| Current | 76A | |
| Number of Rows | 1 | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.75mm² | |
| Maximum Wire Size mm² | 25mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Colour | Grey | |
| Voltage | 1000V | |
| Standards/Approvals | No | |
| Width | 32.8mm | |
| Series | 2616 | |
| Depth | 32mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Connector | ||
Pitch 10mm | ||
Current 76A | ||
Number of Rows 1 | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.75mm² | ||
Maximum Wire Size mm² 25mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Colour Grey | ||
Voltage 1000V | ||
Standards/Approvals No | ||
Width 32.8mm | ||
Series 2616 | ||
Depth 32mm | ||
- COO (Country of Origin):
- PL

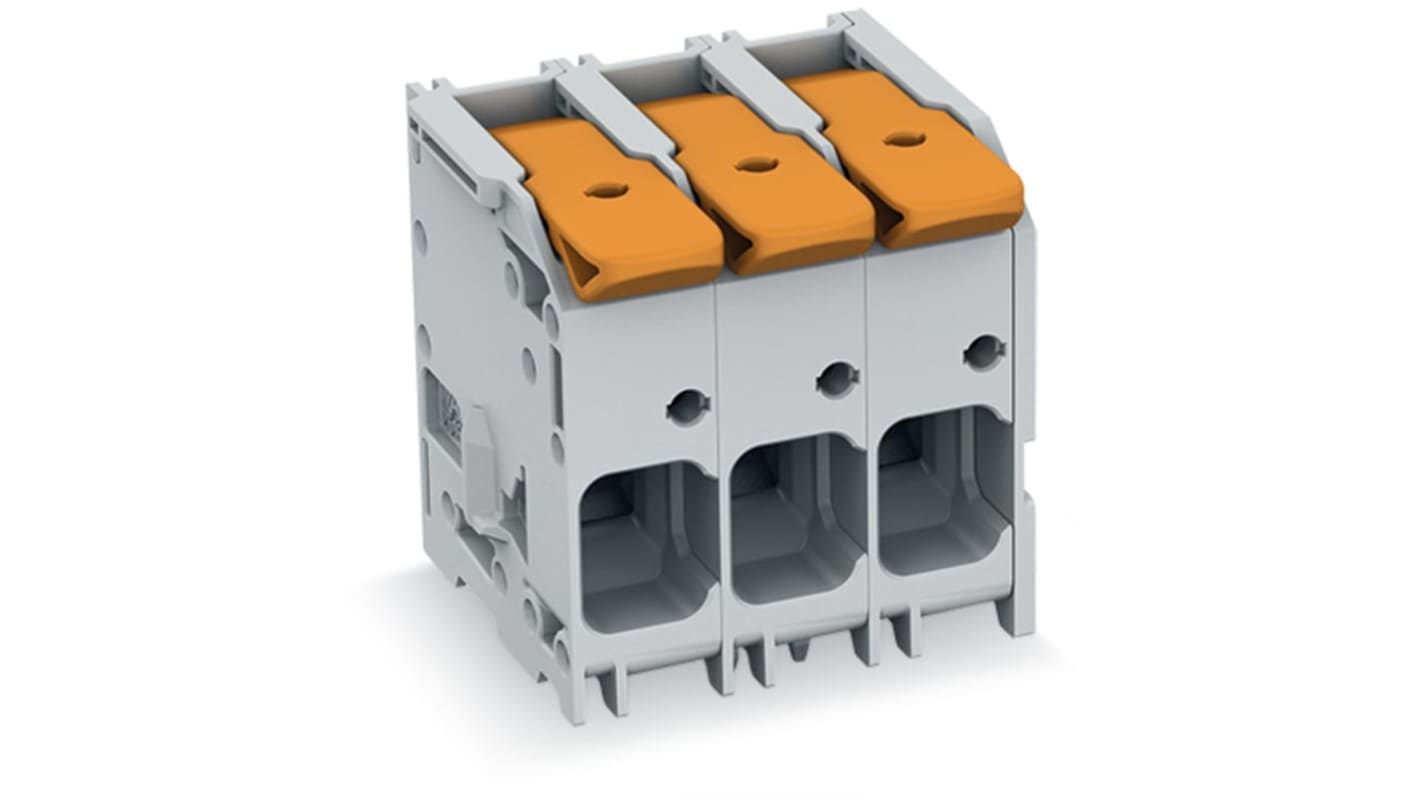

The Wago PCB terminal block combines innovative design with the reliability expected from modern electrical components. Engineered with a Push-in CAGE CLAMP connection and levers, this component enables intuitive, tool-free operation, facilitating quick and straightforward connections. Ideal for a variety of applications, it accommodates solid and ferruled conductors, ensuring a robust and secure connection that simplifies the handling of multi-core cables.
Constructed with flame retardant materials ensuring safety in demanding environments
Efficient pin spacing facilitates compact PCB designs without compromising performance
Environmentally compliant with RoHS standards promoting responsible manufacturing
