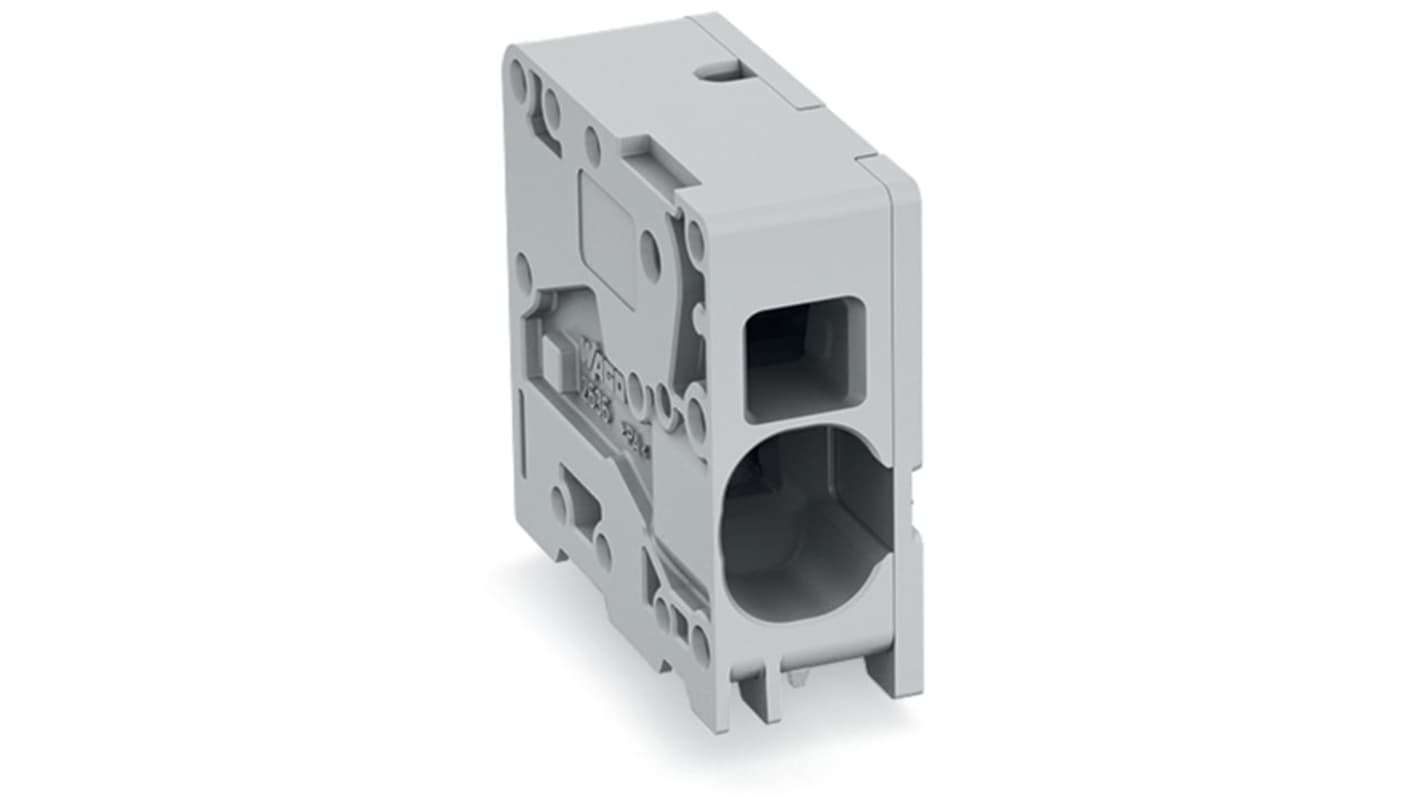

WAGO 2636 Series PCB Connector, 1-Contact, 10 mm Pitch, Feed Through, 1 Row
- RS Stock No.:
- 220-660
- Mfr. Part No.:
- 2636-1101
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£248.46
(exc. VAT)
£298.15
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £248.46 | £2.485 |
*price indicative
- RS Stock No.:
- 220-660
- Mfr. Part No.:
- 2636-1101
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 1 | |
| Pitch | 10mm | |
| Number of Rows | 1 | |
| Current | 76A | |
| Minimum Wire Size mm² | 0.75mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Feed Through | |
| Maximum Wire Size mm² | 25mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Orientation | Parallel Entry | |
| Wire Connection Method | Push-in | |
| Colour | Grey | |
| Voltage | 1000V | |
| Width | 11.6mm | |
| Standards/Approvals | No | |
| Length | 11.6mm | |
| Depth | 29.1mm | |
| Series | 2636 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 1 | ||
Pitch 10mm | ||
Number of Rows 1 | ||
Current 76A | ||
Minimum Wire Size mm² 0.75mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Feed Through | ||
Maximum Wire Size mm² 25mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Orientation Parallel Entry | ||
Wire Connection Method Push-in | ||
Colour Grey | ||
Voltage 1000V | ||
Width 11.6mm | ||
Standards/Approvals No | ||
Length 11.6mm | ||
Depth 29.1mm | ||
Series 2636 | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block is an innovative solution designed for efficient and reliable electrical connections. Crafted with precision, it features a push-in CAGE CLAMP connection that simplifies the termination of both solid and ferruled conductors. With its compact design, this component ensures effective use of space on printed circuit boards, making it ideal for panel feedthrough applications.
Rated for high electrical performance under various operating conditions
Material selection maximises durability and fire resistance
Available in a standardised packaging format for easy procurement
RoHS compliant promoting environmentally friendly practices
