Wurth Elektronik Steel SMT
- RS Stock No.:
- 176-7958
- Mfr. Part No.:
- 9774030243R
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 800 units)*
£443.20
(exc. VAT)
£532.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 800 + | £0.554 | £443.20 |
*price indicative
- RS Stock No.:
- 176-7958
- Mfr. Part No.:
- 9774030243R
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Type | SMT | |
| Body Height | 3mm | |
| Material | Steel | |
| For Screw Size | M2 | |
| Bore Diameter | 2.8mm | |
| Body Diameter | 4.35mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Type SMT | ||
Body Height 3mm | ||
Material Steel | ||
For Screw Size M2 | ||
Bore Diameter 2.8mm | ||
Body Diameter 4.35mm | ||
- COO (Country of Origin):
- DE

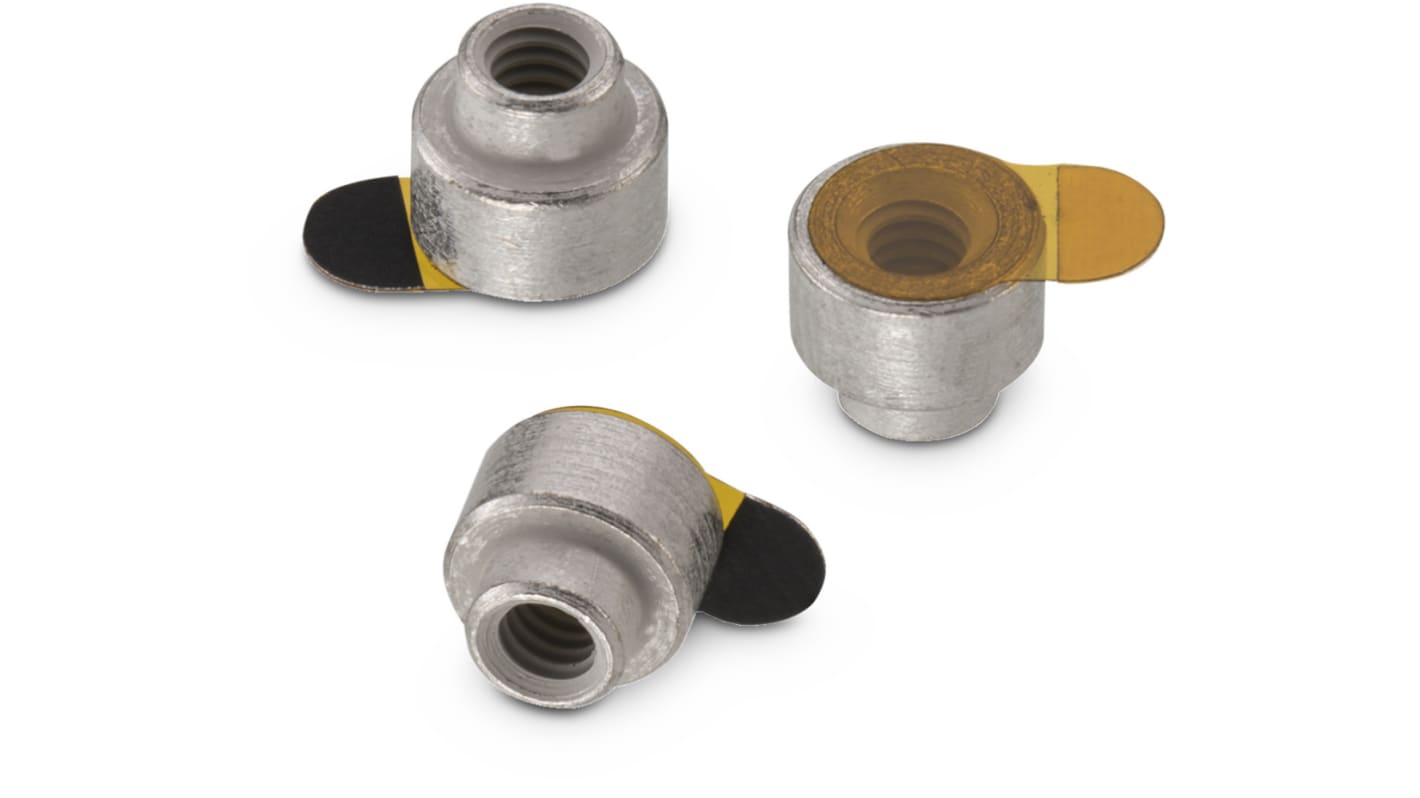

The Wurth Elektronik WA-SMSI is a 3mm, SMT mount, steel spacer with internal thread M2 and a tin surface. It significantly optimizes the assembly process of electromechanical units and is tailor-made for full automation.
RoHS compliant
Halogen free
150 μm solder cream thickness
0.2 N*m tightening torque
Operating temperature ranging between -55°C up to +150 °C
Halogen free
150 μm solder cream thickness
0.2 N*m tightening torque
Operating temperature ranging between -55°C up to +150 °C
