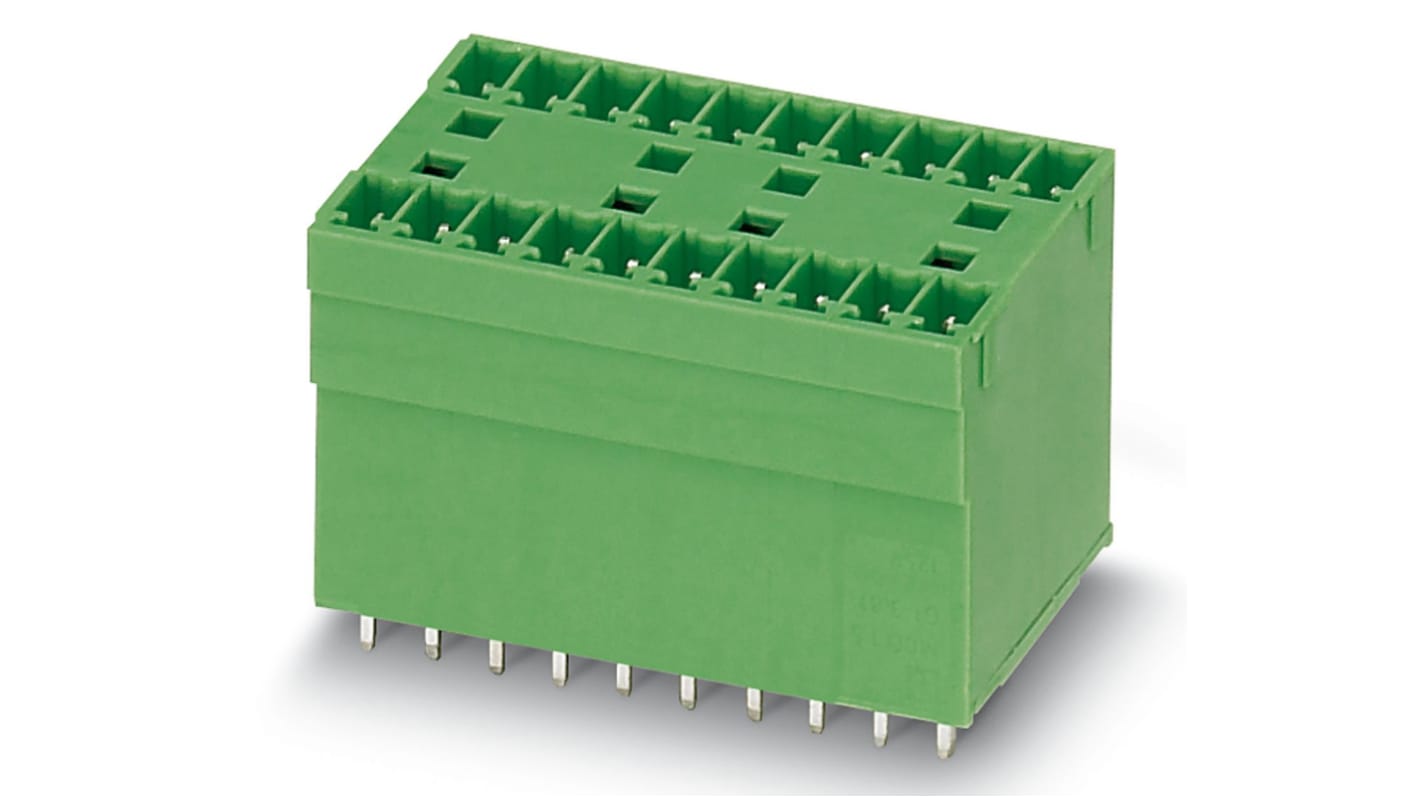

Phoenix Contact MCDV 1.5/16-G1-3.81 Series Vertical Through Hole PCB Socket, 16-Contact, 2 Row, 3.81 mm Pitch Solder

View all PCB Sockets

Subtotal (1 box of 50 units)*

£518.65

(exc. VAT)

£622.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 +£10.373£518.65

*price indicative

RS Stock No.:
882-0846
Mfr. Part No.:
1847877
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

16

Product Type

PCB Socket

Sub Type

Base Strip

Number of Rows

2

Pitch

3.81mm

Current

12A

Housing Material

Polyamide

Termination Type

Solder

Mount Type

Through Hole

Orientation

Vertical

Connector System

Board-to-Board

Voltage

320 V

Series

MCDV 1.5/16-G1-3.81

Row Pitch

15.24mm

Minimum Operating Temperature

-40°C

Contact Material

Tin

Maximum Operating Temperature

100°C

Contact Plating

Tin

Contact Gender

Male

Standards/Approvals

No

COO (Country of Origin):
DE
PCB headers, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 32, Number of rows: 2, Number of positions per row: 16, number of connections: 32, product range: MCDV 1,5/..-G1, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, Stecksystem: MINI COMBICON, Locking: without, type of packaging: packed in cardboard, In combination with MCV plug components, both an MCVW and an MCVR plug must be used.
