WAGO 232 Series Straight PCB PCB Connector, 10-Contact, 1 Row, 5 mm Pitch Solder

View all PCB Sockets

Subtotal (1 pack of 25 units)*

£138.625

(exc. VAT)

£166.35

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 +£5.545£138.63

*price indicative

RS Stock No.:
278-1275
Mfr. Part No.:
232-140/005-000/039-000
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Product Type

PCB Connector

Number of Contacts

10

Sub Type

Female Connector

Number of Rows

1

Pitch

5mm

Current

12A

Termination Type

Solder

Housing Material

Polyamide 66

Mount Type

PCB

Orientation

Straight

Voltage

320 V

Series

232

Row Pitch

5mm

Minimum Operating Temperature

-60°C

Contact Material

Copper Alloy

Maximum Operating Temperature

85°C

Contact Gender

Female

Contact Plating

Tin

Standards/Approvals

UL 1059, IEC/EN 60664-1

COO (Country of Origin):
DE

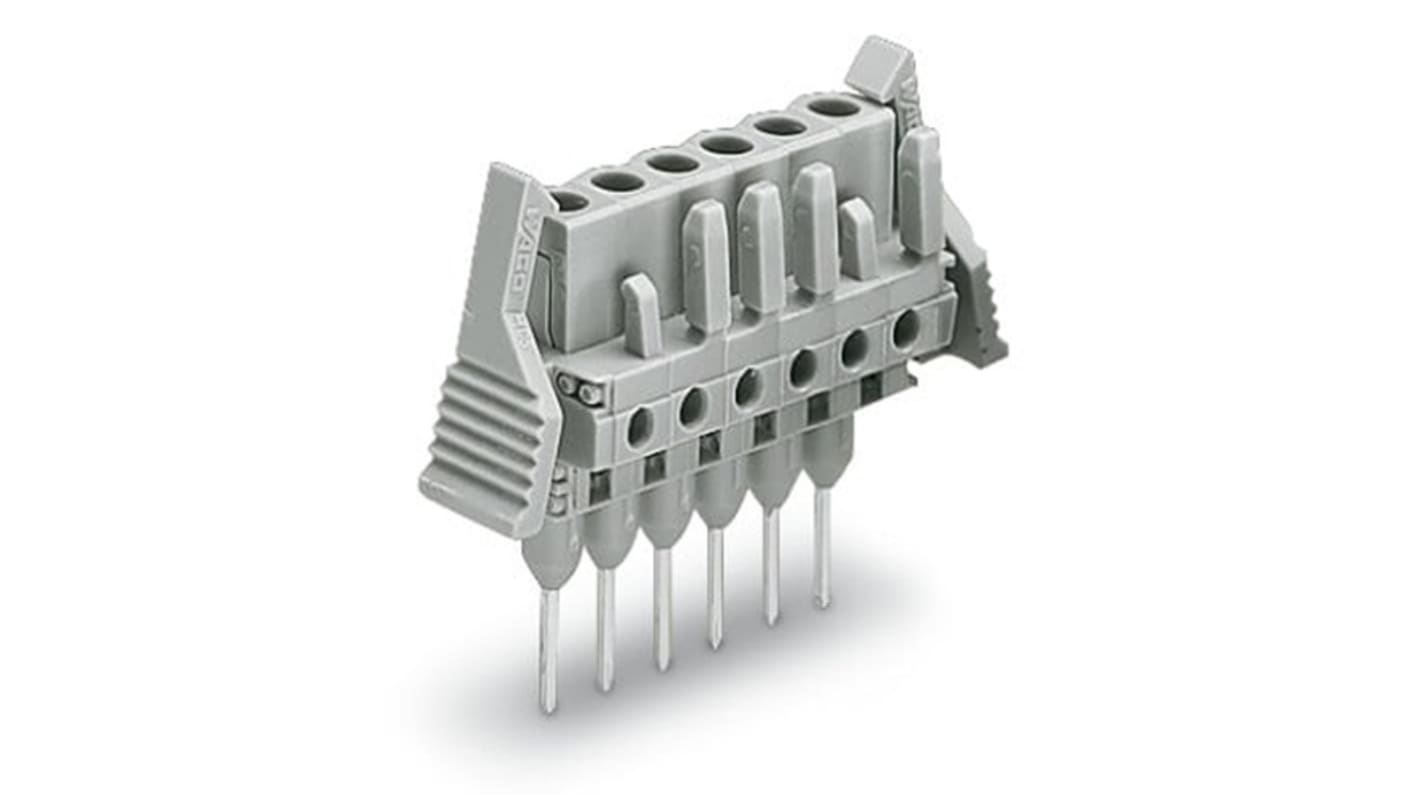

The WAGO female connector for rail-mount terminal block features long contact pins connect to the termination ports of rail mount terminal blocks.

With coding fingers

Insulation material polyamide
