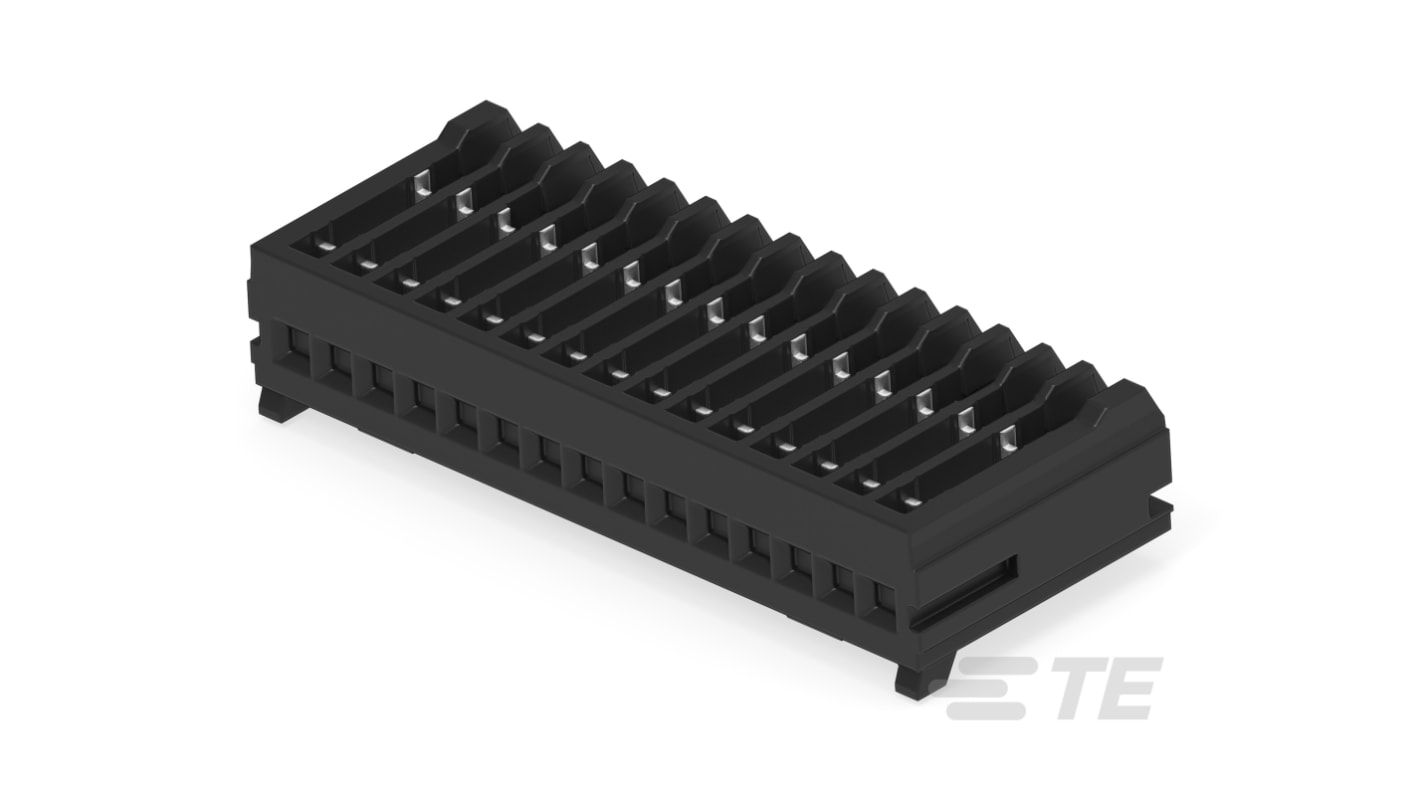

TE Connectivity MICRO CT Series Straight Cable Mount, IDC PCB Socket, 15-Contact, 1-Row, 1.2mm Pitch, IDC Termination
- RS Stock No.:
- 268-2555
- Mfr. Part No.:
- 1-2355088-5
- Brand:
- TE Connectivity
18000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£0.86
(exc. VAT)
£1.03
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £0.86 | £4.30 |
| 25 - 45 | £0.77 | £3.85 |
| 50 - 120 | £0.696 | £3.48 |
| 125 - 245 | £0.636 | £3.18 |
| 250 + | £0.584 | £2.92 |
| *price indicative | ||
- RS Stock No.:
- 268-2555
- Mfr. Part No.:
- 1-2355088-5
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The TE Connectivity Receptacle is a Micro CT connectors and cable assemblies. This provide an economical wire routing solution for power or signal needs and optimizing printed circuit board space savings. A variety of harness making machines are available ranging from hand tools for low volume production to high speed automatic crimping machines for medium to high volume productions. AMP high speed automatic crimping machines are easy to operate and eliminating the need for tedious work of changing parts inside the equipment to adapt to changes in harness styles.
Cost effective
Smaller footprint
Superior performance
Efficiency optimizations
Discrete wire interconnect
Expansive range of configurations
Smaller footprint
Superior performance
Efficiency optimizations
Discrete wire interconnect
Expansive range of configurations
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 15 |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| Type | Connector Assembly |
| Mounting Type | Cable Mount, IDC |
| Body Orientation | Straight |
| Termination Method | IDC |
| Connector System | Wire to Board |
| Current Rating | 2A |
| Voltage Rating | 50 VAC |
| Series | MICRO CT |
| Contact Material | Phosphor Bronze |
| Series Number | 1-2355088 |
