- RS Stock No.:
- 250-2903
- Mfr. Part No.:
- SEAF-50-05.0-S-08-2-A-K-TR-1
- Brand:
- Samtec
Available to back order for despatch 29/05/2024
Added
Price Each (On a Reel of 250)
£18.402
(exc. VAT)
£22.082
(inc. VAT)
Units | Per unit | Per Reel* |
250 + | £18.402 | £4,600.50 |
*price indicative |
- RS Stock No.:
- 250-2903
- Mfr. Part No.:
- SEAF-50-05.0-S-08-2-A-K-TR-1
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details

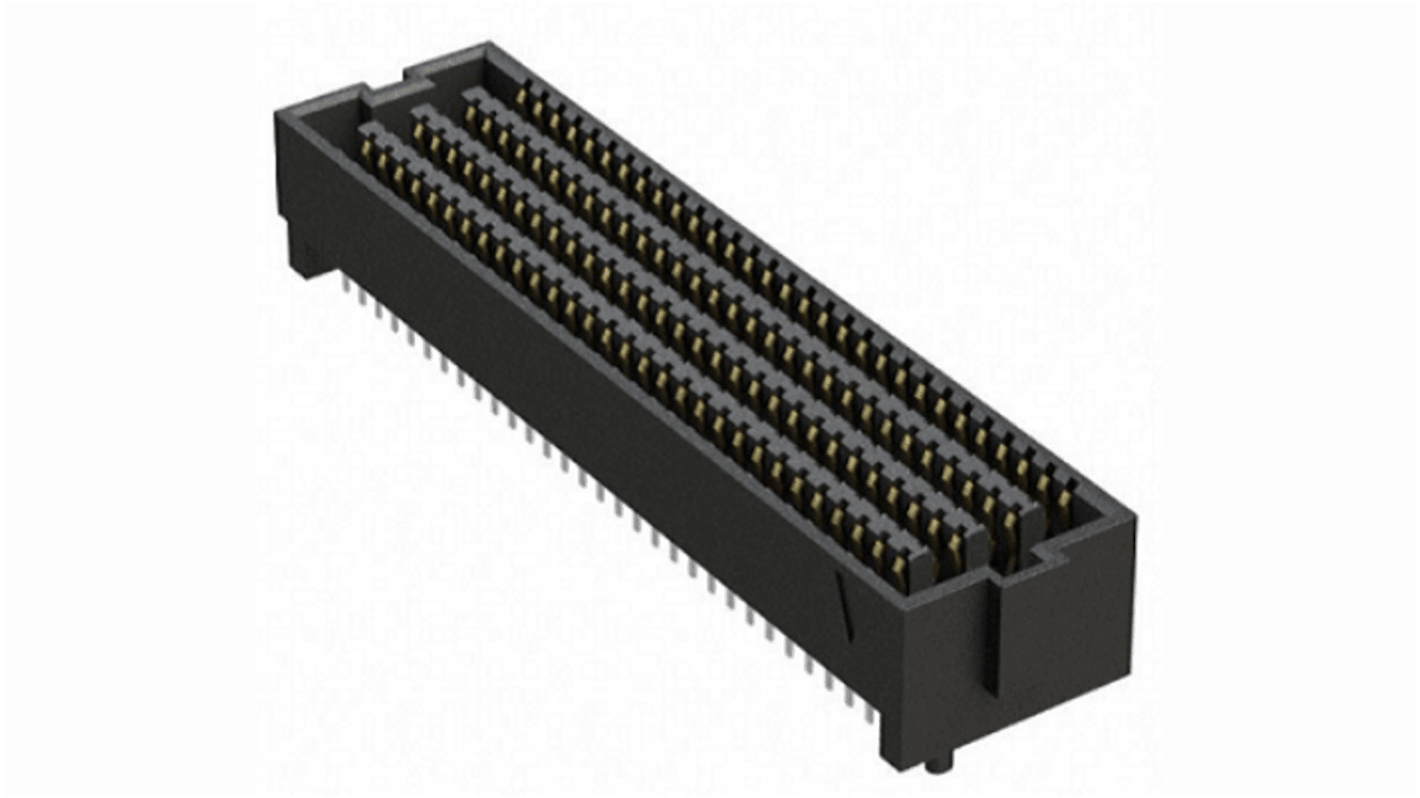

The samtec Searay is an open-pin-field array 0.050" (1.27mm) pitch connector. It is compatible with UMPT or UMPS for power or signal flexibility.
Maximum grounding & routing flexibility
Up to 560 single-ended I/Os or 140 differential pairs
Rugged Edge Rate contacts
Variety of designs and options are Right-Angle, Guide Posts, 85 Ω Elevated Risers,
85 Ω Tuned, Press-Fit and Press-Fit Right-Angle, Guide Post Field Termination Kits
Cable mates (SEAC Series) and Jack Screw Standoffs (JSO Series) are also available
Standards are VITA 47, VITA 571 FMC, VITA 574 FMC+, VITA 74 VNX, PISMO 2
Supports high-speed protocols such as Ethernet, PCI Express, Fibre Channel & InfiniBand
Up to 560 single-ended I/Os or 140 differential pairs
Rugged Edge Rate contacts
Variety of designs and options are Right-Angle, Guide Posts, 85 Ω Elevated Risers,
85 Ω Tuned, Press-Fit and Press-Fit Right-Angle, Guide Post Field Termination Kits
Cable mates (SEAC Series) and Jack Screw Standoffs (JSO Series) are also available
Standards are VITA 47, VITA 571 FMC, VITA 574 FMC+, VITA 74 VNX, PISMO 2
Supports high-speed protocols such as Ethernet, PCI Express, Fibre Channel & InfiniBand
Specifications
Attribute | Value |
---|---|
Number of Contacts | 50 |
Number of Rows | 2 |
Pitch | 1.27mm |
Series | SEAF |
