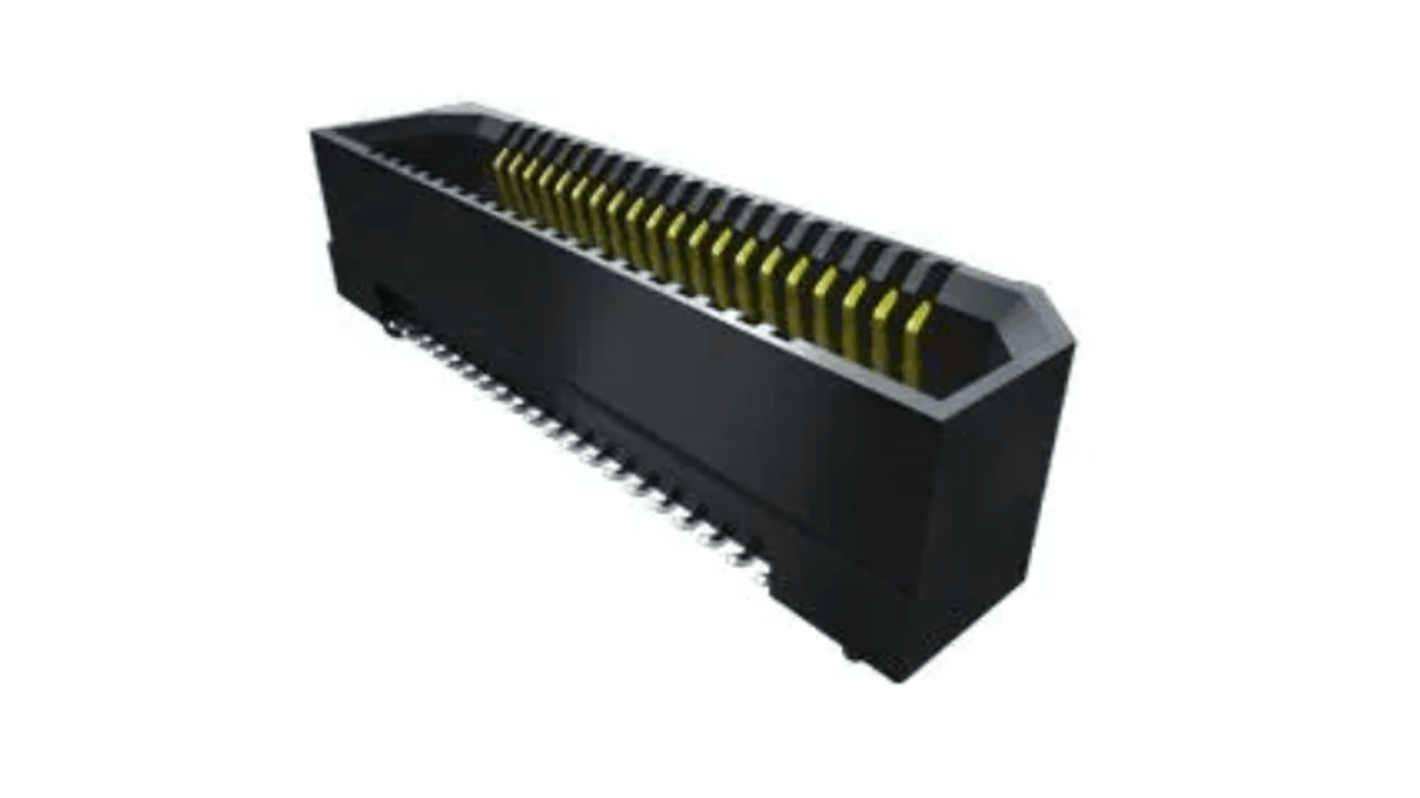

Samtec ERF5 Series Straight Surface PCB Socket, 120-Contact, 2 Row, 0.8 mm Pitch Solder
- RS Stock No.:
- 250-2841
- Mfr. Part No.:
- ERF5-060-05.0-L-DV-K-TR-1
- Brand:
- Samtec
Subtotal (1 reel of 575 units)*
£3,154.45
(exc. VAT)
£3,785.225
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 575 + | £5.486 | £3,154.45 |
*price indicative
- RS Stock No.:
- 250-2841
- Mfr. Part No.:
- ERF5-060-05.0-L-DV-K-TR-1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 120 | |
| Product Type | PCB Socket | |
| Sub Type | PCB Socket | |
| Number of Rows | 2 | |
| Pitch | 0.8mm | |
| Housing Material | Thermoplastic | |
| Termination Type | Solder | |
| Mount Type | Surface | |
| Orientation | Straight | |
| Connector System | Wire-to-Board | |
| Series | ERF5 | |
| Minimum Operating Temperature | -20°C | |
| Row Pitch | 0.8mm | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | RoHS, UL | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 120 | ||
Product Type PCB Socket | ||
Sub Type PCB Socket | ||
Number of Rows 2 | ||
Pitch 0.8mm | ||
Housing Material Thermoplastic | ||
Termination Type Solder | ||
Mount Type Surface | ||
Orientation Straight | ||
Connector System Wire-to-Board | ||
Series ERF5 | ||
Minimum Operating Temperature -20°C | ||
Row Pitch 0.8mm | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals RoHS, UL | ||
The samtec Edge Rate Rugged High Speed Socket has 0.50 mm pitch. It is Compatible with UMPT or UMPS for power or bsignal flexibility.
Rugged latching, locking and 360º shielding Up to 15 mm contact wipe
